Cub Cadet 6X4 User Manual

Chapter 2- Drive System: CVT and Transfer Case
45
10. Remove and discard the seals from both halves
of the transfer case housing. See Figure 2.104.
NOTE: Use caution not to damage the seal
bores when removing the seals.
11. The bearings need not be removed from the
case unless they are bad. Inspection will be cov-
ered in the next section of this chapter. If the
bearings do need to be removed:
11a. The right side case half contains three
bearings. See Figure 2.105.
• The input shaft bearing fits in a blind bore.
• The middle shaft bearing fits in a shouldered
bore that is open to the outside of the case.
• The output shaft bearing fits in a shouldered
bore that is open to the outside of the case.

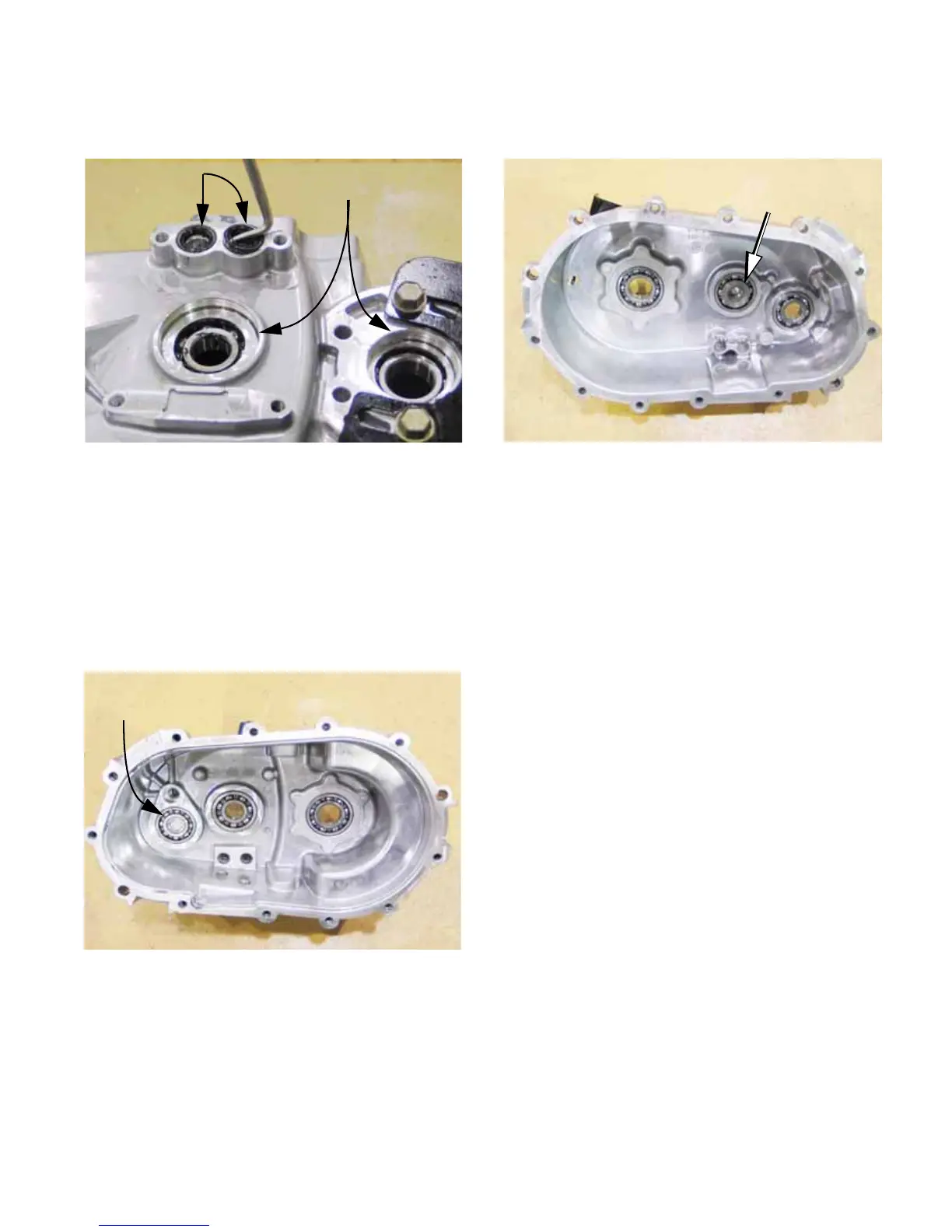

Figure 2.104
Bearing seal bores
Shift shaft seals
(use hook tool
with caution)
Figure 2.105
Right side case half
Input shaft bearing
11b. The left side case half contains three bear-
ings: See Figure 2.106.
• The input shaft bearing fits in a shouldered bore
that is open to the outside of the case.
• The middle shaft bearing fits in a blind bore.
• The output shaft bearing fits in a shouldered
bore that is open to the outside of the case.
11c. The bearings that fit in the blind bores may
require a blind bearing puller to remove
them from the case.
11d. The bearings that fit in the open bores
may be driven-out by their inner races
ONLY if they are not to be re-used.
11e. The cases may be evenly heated in an
oven to not more than 200 deg.f. (93
deg.c.). This will ease bearing removal
and installation, as will chilling the bear-
ings immediately prior to installation.
CAUTION: DO NOT use a torch to heat the case
halves, as the heat applied by a torch is too
uneven and may distort the case.
Figure 2.106
Left side case half
Middle shaft bearing
