Kohler Enclosed CVT Addendum
73
7i. Center-punch and drill the two mounting
holes in the seat box using a 9/32” (7mm)
drill bit.
7j. Mount the bracket beneath the front lip of
the seat box. Tighten the two 1/4-14
screws using a T-27 driver.
See Figure 2a.31.
7k. Install the intake tube between the bracket
and the spigot on the front of the CVT
cover. Secure it with the hose clamp.
See Figure 2a.32.
7l. Reinstall the engine cover and parcel bin.
7m. Lower the work-box and seats.
7n. Test-drive the vehicle in a safe place to
confirm that it operates properly before
returning it to service.

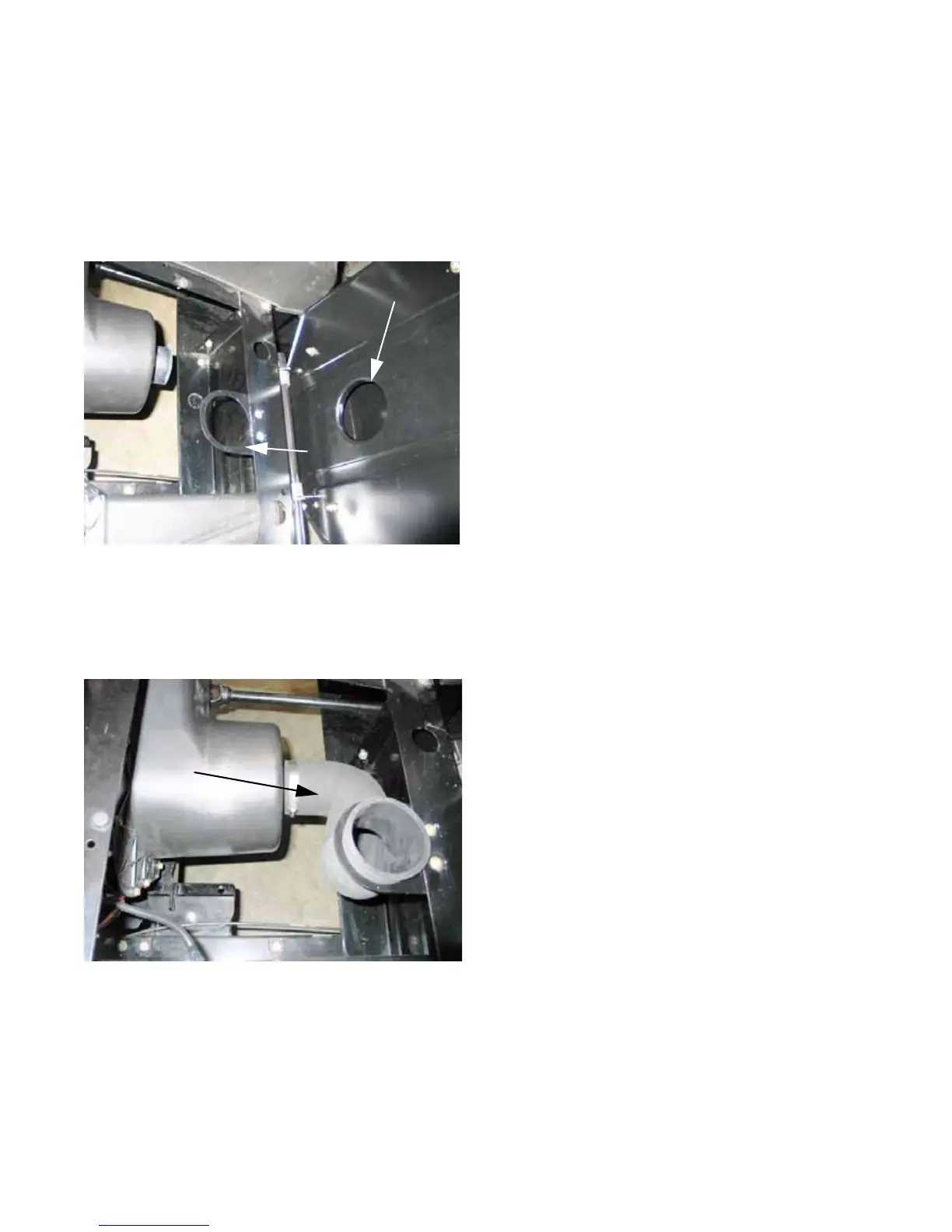

Figure 2a.31
Opening in bottom
of seat plate
Tube bracket
Figure 2a.32
Intake tube installed
