Cub Cadet 900 series Professional Shop Manual

310-0510 IHT
25
HYDRAULIC COMPONENTS
13. Tighten the center section mounting
screws (44) to the proper torque. Refer to
Table 5.
(Swashplate/Pump Block)
14. (See Fig. 18) Install the pump thrust bear-
ing (19) in the trunnion machined swash-
plate (4). NOTE: Place the thin race of the
bearing towards the swashplate. The thick
race must face the pistons.
15. (See Fig. 16) Place the pump block as-
sembly (5), pistons down, on top of the
thrust bearing in the swashplate (4).
16. Coat the pump running surface with clean
motor oil.
17. Care must be taken to prevent the scaring
or scratching of the center section sealing
face during this step. Insert the short shaft
side of the swashplate/pump block assem-
bly (Fig. 24) into the housing while simulta-
neously compressing the pistons in the
block. NOTE: To assist in the installation of
these components, insert the assembly un-
til ¾ of the pump block is covered by the
center section. Then slightly angle the trun-
nion shaft end away while pressing the
short swashplate shaft into its pocket.
18. Install the input shaft. See page 22.
19. Install the bypass rod. See page 21.
20. Install the axle shaft, differential and reduc-
tion gears. Refer to page 20.
21. Install the side housing. See page 19.
22. Install the seals in the side housing. See
page 18.
23. Fill the transaxle with new oil. See page 10.
24. Install the control arm and friction pack.
See page 17.
25. Install the brake assembly and bypass arm.
See page 16.

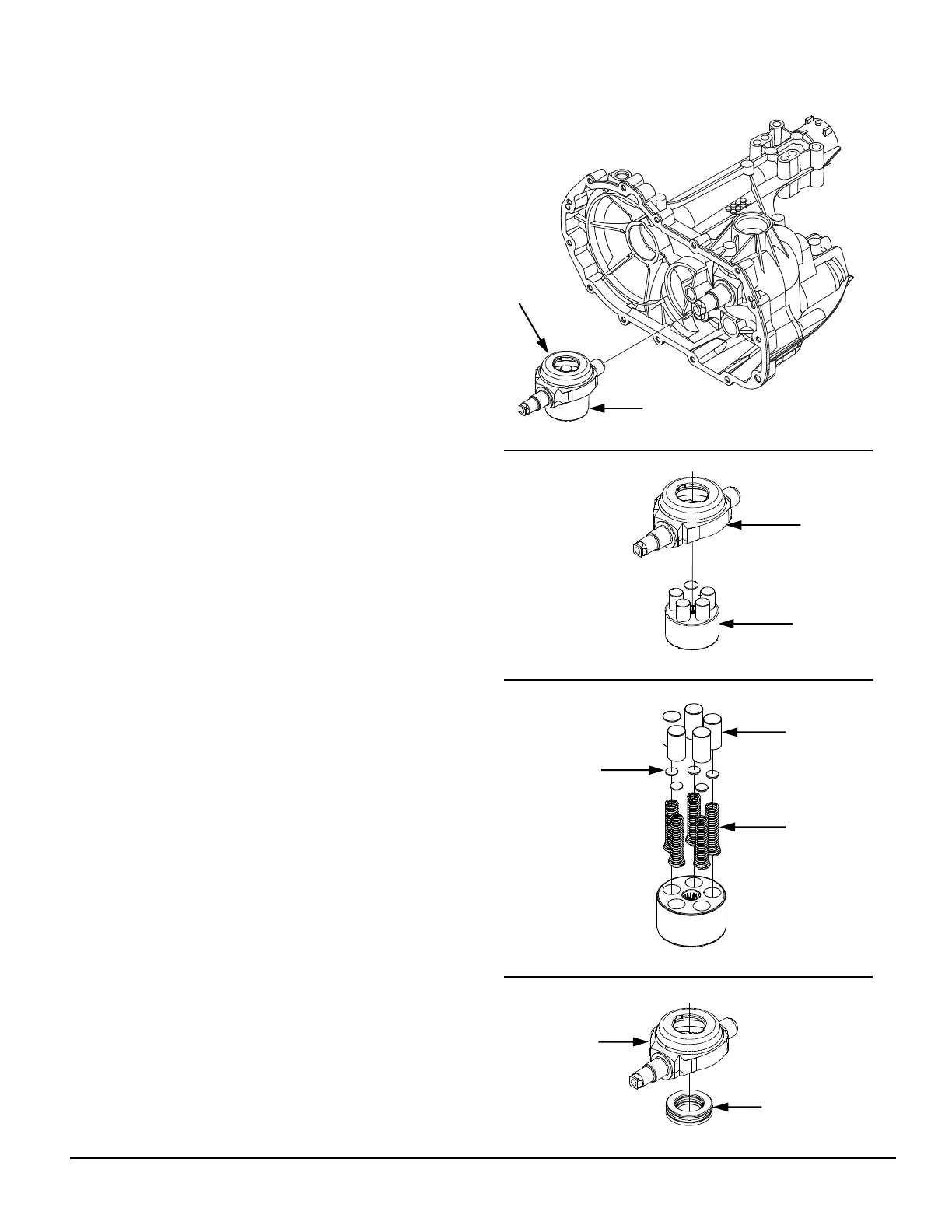

Figure 15
Figure 16
Figure 17
Figure 18
4
5
5
4
2
1
3
4
19
