CVT Drive and brake system
76
4c. Lift the pulley far enough to allow the belt
to clear the belt keepers. See Figure 6.61.
4d. The slack created will allow the upper belt
to slip easily out of the top sheave of the
variable speed pulley and off of the trans-
mission input pulley. See Figure 6.62.
4e. Withdraw the belt through the battery
opening under the seat.
5. Remove the lower (front) drive belt:
5a. Slip the belt off of the two tensioner pul-
leys. See Figure 6.63.
5b. Roll the belt off of the lower sheave of the
variable speed pulley. See Figure 6.64.
NOTE: The belt can be walked-up from the
lower sheave to the upper sheave, then off.
Rotate the variable speed pulley to help slip the
belt past the belt keepers.

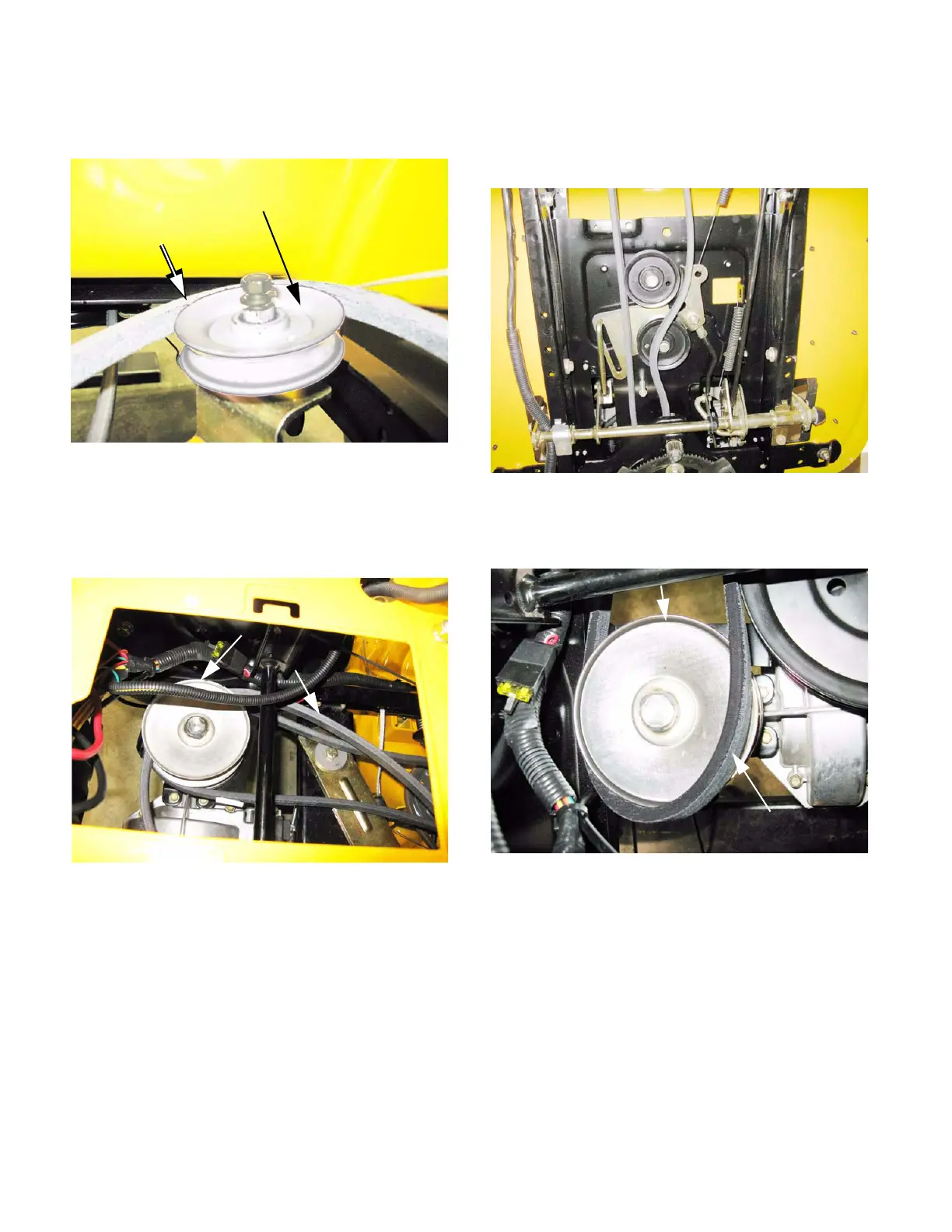

Figure 6.61
Tension idler pulley
Rear drive belt
Figure 6.62
Variable speed pulley
Upper belt
Figure 6.63
Figure 6.64
Lower belt
Variable speed pulley
