Assembly Instruction Manual
A3

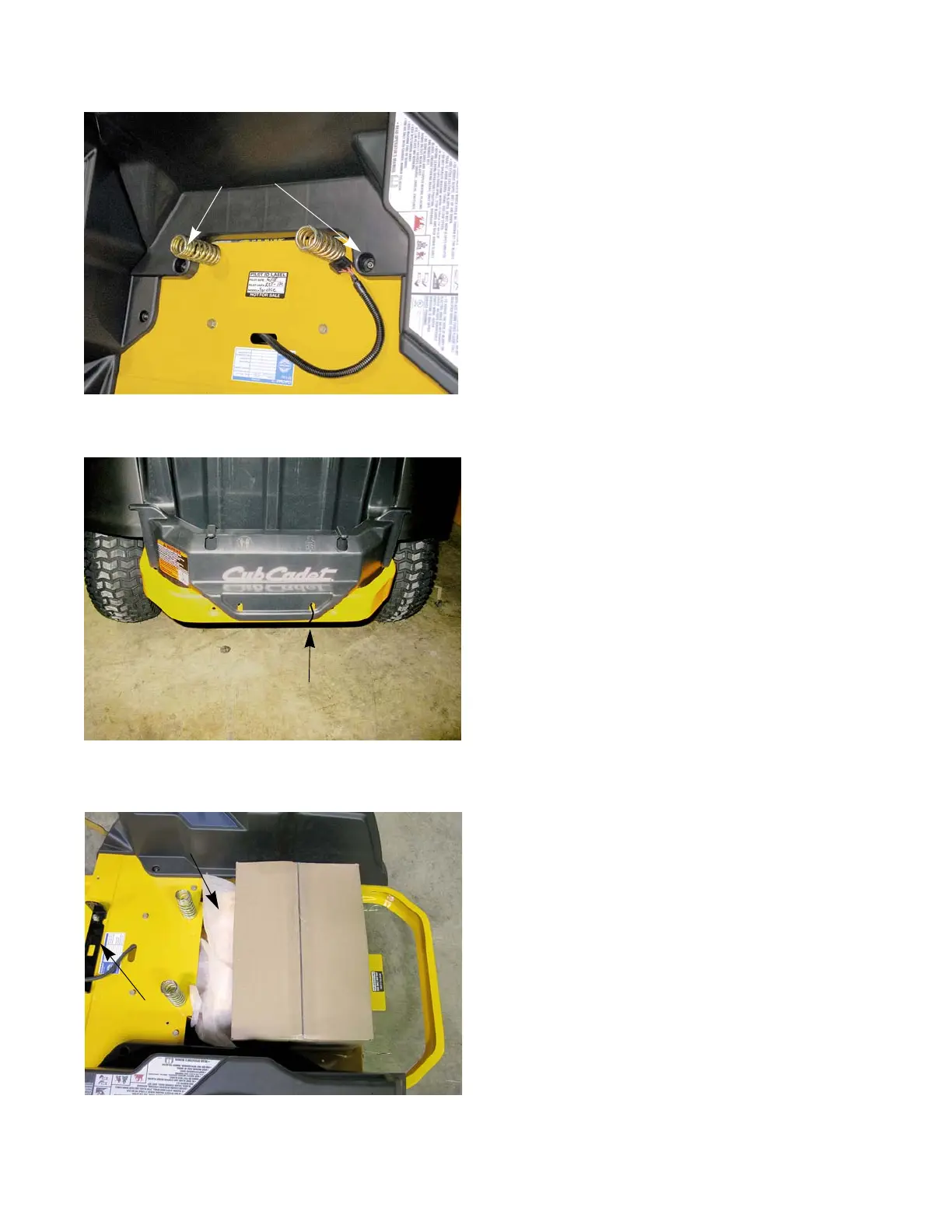

11. Remove the rear battery cover:
11a. Remove the two screws from the front of the
rear battery cover using T-30 torx driver.
See Figure 6.
11b. Cut off the tie strap that is holding the rear of
the rear cover to the bumper.
See Figure 7.
11c. Lift the rear battery cover off of the mower.
12. Remove the cardboard box from the battery compart-
ment. See Figure 8.
13. Remove the front battery bracket from under the seat
box assembly.
14. Open the cardboard box.
15. Remove the hardware packet from the cardboard
box.
16. Remove the seat bracket:
Figure 8
Front battery bracket
Seat bracket
