5. NAMES AND FUNCTIONS OF COMPONENTS
Sc2450 Operator's Manual

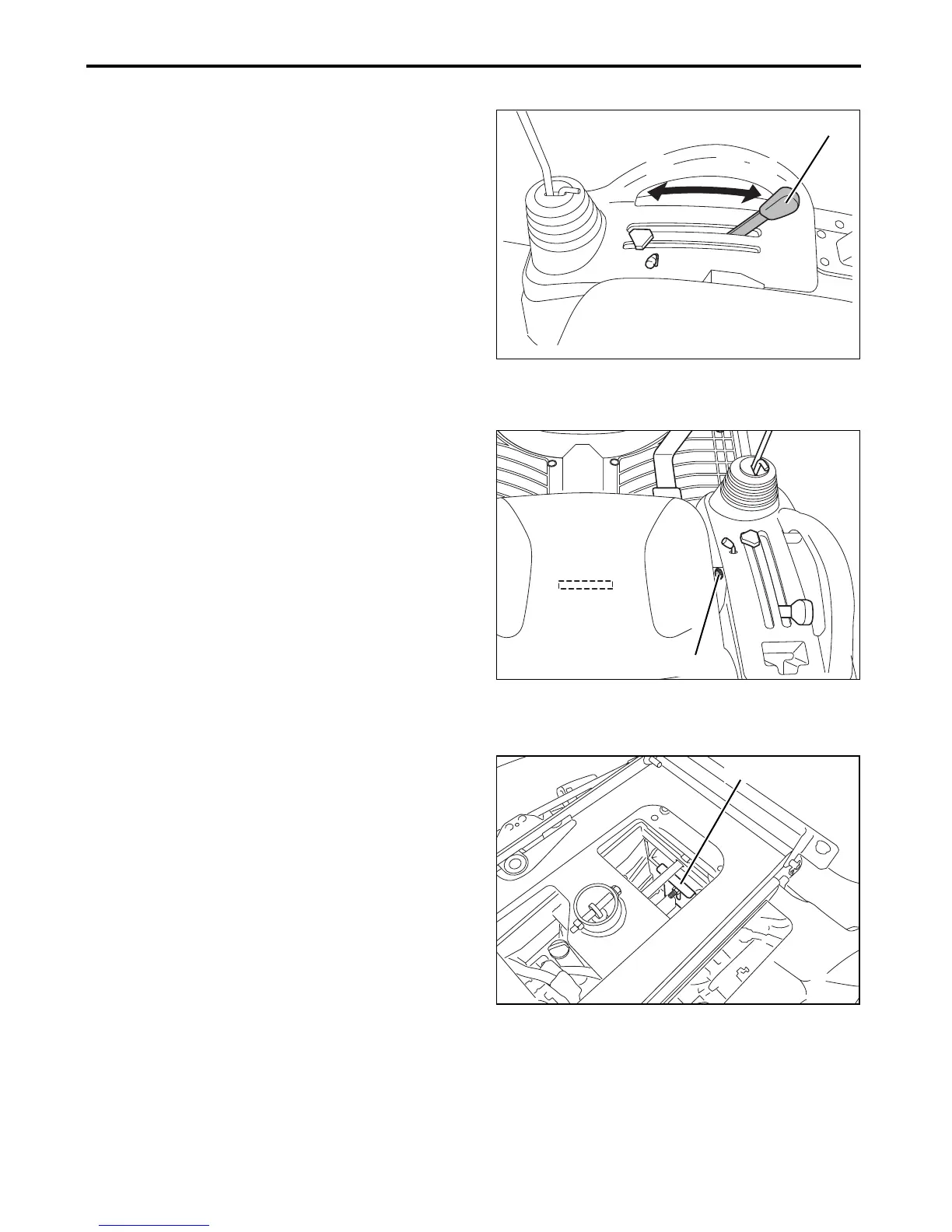

(11)3-point hitch control/cutting height adjustment lever
Use the 3-point hitch control/cutting height
adjustment lever, when raising or lowering the mid-
or rear mounted implement.
(A) 3-point hitch control/cutting height
adjustment lever
(a) Moving the 3-point hitch control/cutting height
adjustment lever forward will lower the
implement.
(b) Moving the 3-point hitch control/cutting height
adjustment lever backward will raise the
implement to raise higher.
(13)12V DC outlet
This can be used as a power source for electrical
goods.
(A) 12V DC outlet
(14)Hydro Static Transmission (HST) pressure release lever
Hydraulic pressure in the Hydro Static Transmission
(HST) brakes the axles when the engine is not
running, so that the tractor cannot be moved.
When the hydraulic pressure in the transmission is
released by pressing the Hydro Static Transmission
(HST) pressure release lever, the tractor can be
moved.
(A) Hydro Static Transmission (HST) pressure
release lever
3014918e
(b)
(a)
(A)
3014903o
(A)
3016486
(A)
