User Manual Control Units
www.cuesystem.com
Page 10 of 44
3.4. CUEwire
3.4.1. Overview
The connector marked CUEwire is used for the connection between the Assistant or Assistant-S and
Cue’s control panels.
The power output has its own fuse. It should be used as a power connection to feed other parts of the
system when one power source is to feed more than just the Assistant or Assistant-S.
1. The Assistant is equipped with one resettable fuse rated 2.5 A. There are no serviceable parts
inside the metal case.
2. The Assistant-S is equipped with one fuse 2 A. The fuse can be changed without necessity to
open the unit.

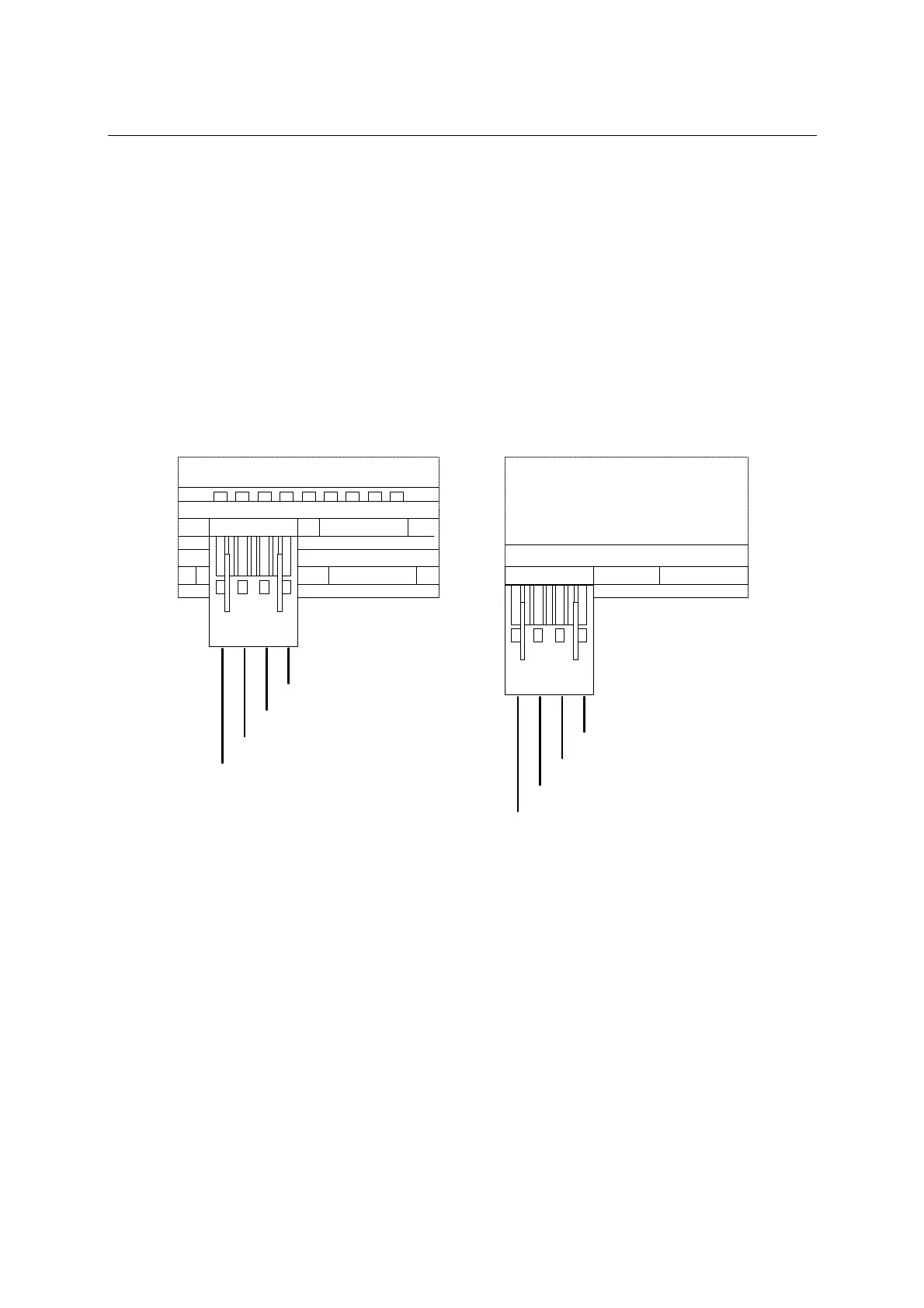

3.4.2. Pinouts
Assistant
INE IR-REC S9 / CUEring
OUT RS-485 G CONSOLLE
IR-REC S9 / CUEringOUT RS-485
Assistant-S
B-
A+
GND
+ 24 V, max. 2 A
1 432
B-
A+
GND
+ 24 V, max. 2 A
1 432
