User Manual Control Units
www.cuesystem.com
Page 38 of 44

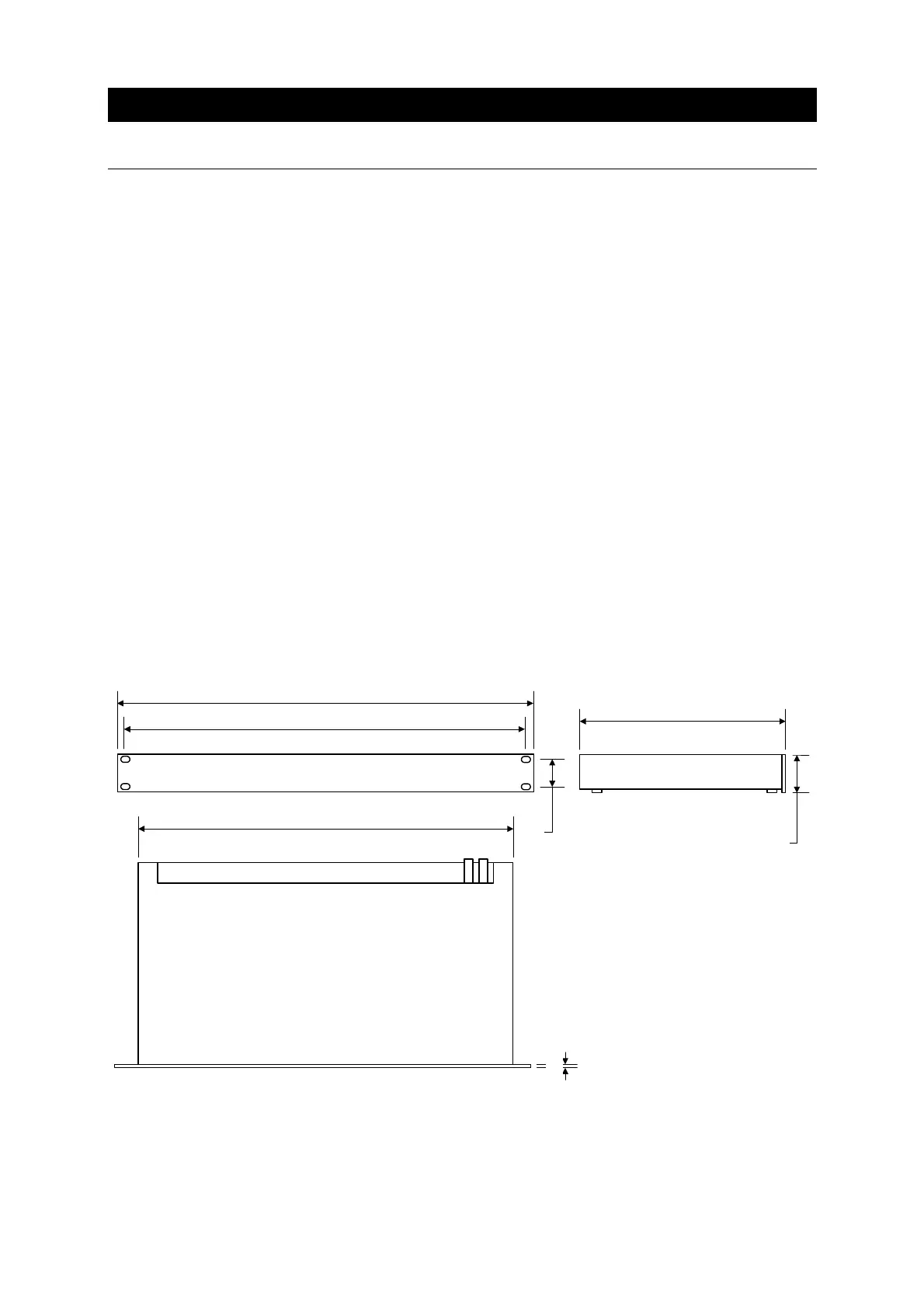

8. Specifications and Mechanical Drawings
8.1. Assistant
Service port .................................................(1) RS-232 for host computer (Sub-D, 9-pin, female)
Expansion possibility ...................................(1) serial channel CUEring for Cue’s interfaces (4-pin)
IR input ........................................................(1) for IR wireless control panel receivers (3-pin)
Control panels connection...........................(1) CUEwire (4-pin)
(1) RS-232 console (4-pin)
Control ports:
IR and serial.........................................(4) control output (2-pin)
Bi-directional serial ..............................(4) RS-232/422/485 channel (4-pin)
General IO ...........................................(8) contact, TTL, analog 0 - 5 V input or digital open
collector output, load max. 80 mA (2-pin)
Analog..................................................(4) output 0 -10 V, load max. 80 mA (2-pin)
Relays ..................................................(16) isolated closure, 24V / 0.5 A (3-pin)
Memory........................................................PC Card RAM, 32 kB - 40 MB
Real time and date ......................................RTC
Power supply ...............................................24 VDC (+/-20%), 12 W (2-pin)
Enclosure.....................................................Metal
Dimensions..................................................Rack 19", 1 U, 240 mm
Weight..........................................................3.4 kg
Operating temperature range ......................0° to 40° C
Storage temperature range .........................-10° to 45° C
Relative humidity range...............................0 to 90 %, non-condensed
Supplied accessories...................................Cable holder
465 mm
44 mm
482,6 mm
32 mm
239 mm
435 mm
4 mm
