3.6. Interfaces

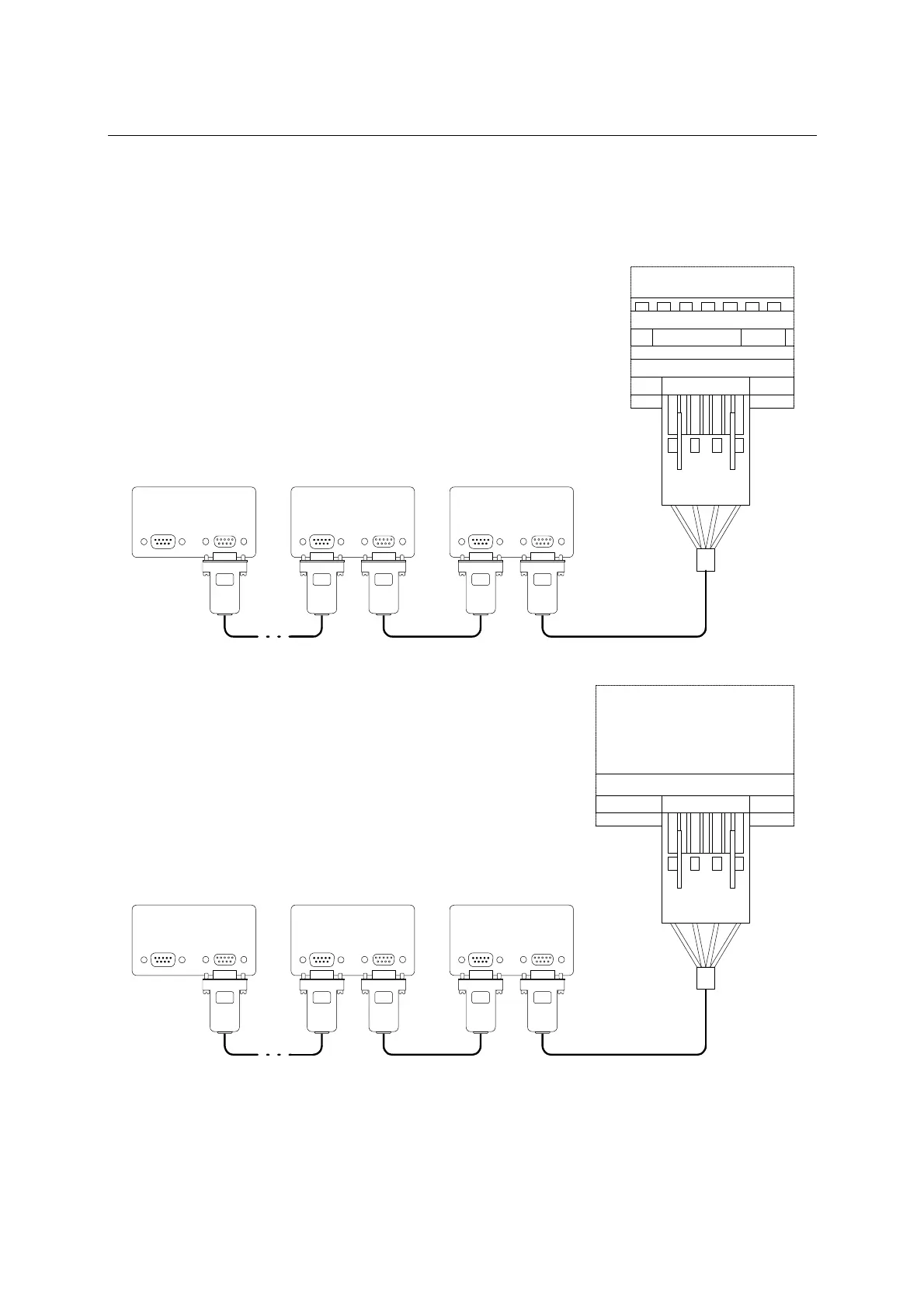

If the number of outputs of the Assistant or Assistant-S interface is not enough other Cue’s interfaces
can be used for the system expansion. The serial channel for Cue’s interfaces connection is marked
S9 / CUEring. Interface connections use a CUEring cable supplied in various lengths. The cable is a
2-core screened cable or two twisted-pair.
Cue Interface n
DATA OUT DATA IN
Cue Interface 2
DATA OUT DATA IN
Cue Interface 1
DATA OUT DATA IN
CUEring Cable /a
Control Cable 9-pin
Assistant
S9 / CUEring
IR 1
IR 3
G CONSOLLE
1 432
IR-REC S9 / CUEring IR 1
Assistant-S
1 432
Cue Interface n
DATA OUT DATA IN
Cue Interface 2
DATA OUT DATA IN
Cue Interface 1
DATA OUT DATA IN
CUEring Cable /a
Control Cable 9-pin
