3.11. Relays (Auxiliaries)
The Assistant-S has no relay outputs while the Assistant has 16 relay closures. The relays are marked
as AUX 9 - AUX 24 on the connector.
Each relay contact is capable to switch max. 24 V DC/AC, 0.5 A. The relay contacts are potential free.

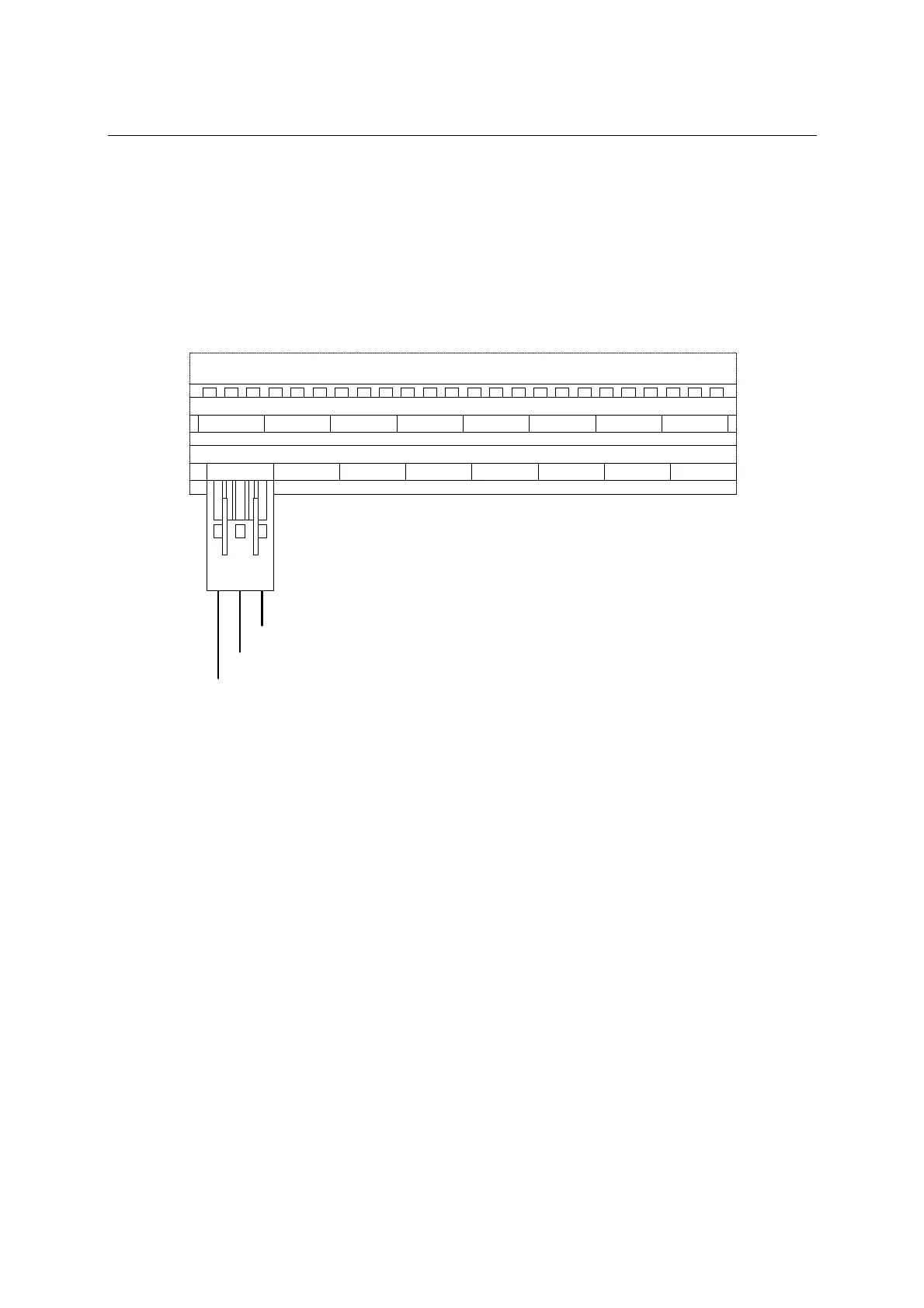

Each relay output has three pins.........NC = Normal Close
C = Common
NO = Normal Open
AUX 9 AUX 10 AUX 11 AUX 12 AUX 13 AUX 14 AUX 15 AUX 16
AUX 17 AUX 18 AUX 19 AUX 20 AUX 21 AUX 22 AUX 23 AUX 24
Assistant
NO = normal open
C = common
NC = normal close
1 32
