User Manual Control Units
www.cuesystem.com
Page 26 of 44
3.9. Analog Outputs
The analog channels of the Assistant and Assistant-S are used for such equipment that is to be
controlled by analog voltage 0 –10 V (for example VCA, dimmers, etc.)
The full control range 0 to 10 V is divided into 256 steps by which the value can be set.
The existing difference between Assistant and Assistant-S is max. load for each analog output
Assistant max. load .............................80 mA
Assistant-S max. load..........................10 mA

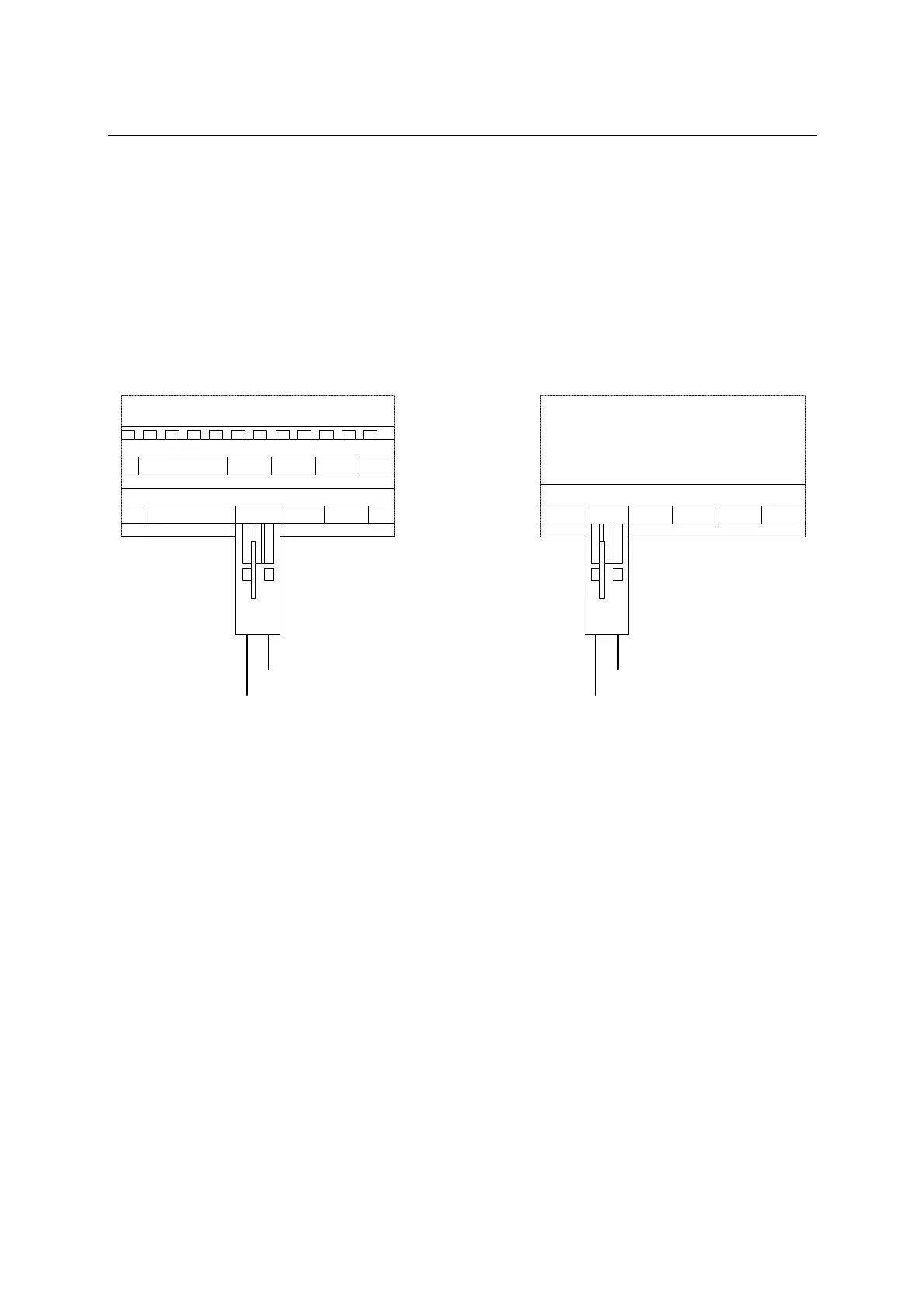

The analog outputs are marked A 1 - A 4.
A 1 A 2 A 3 A 4
Assistant-SAssistant
S 6
S 8
A 1 A 2
A 3 A 4
IO 1
IO 5
Ground
Live
1 2
Ground
Live
1 2
