User Manual Control Units

www.cuesystem.com

Page 18 of 44

3.7.2. RS-232 One-directional Output Connection

Important notes

1. Maximum baud rate is 9 600 Bd

2. IR/Serial channel must be set to no-carrier mode using command CarrierDisable.

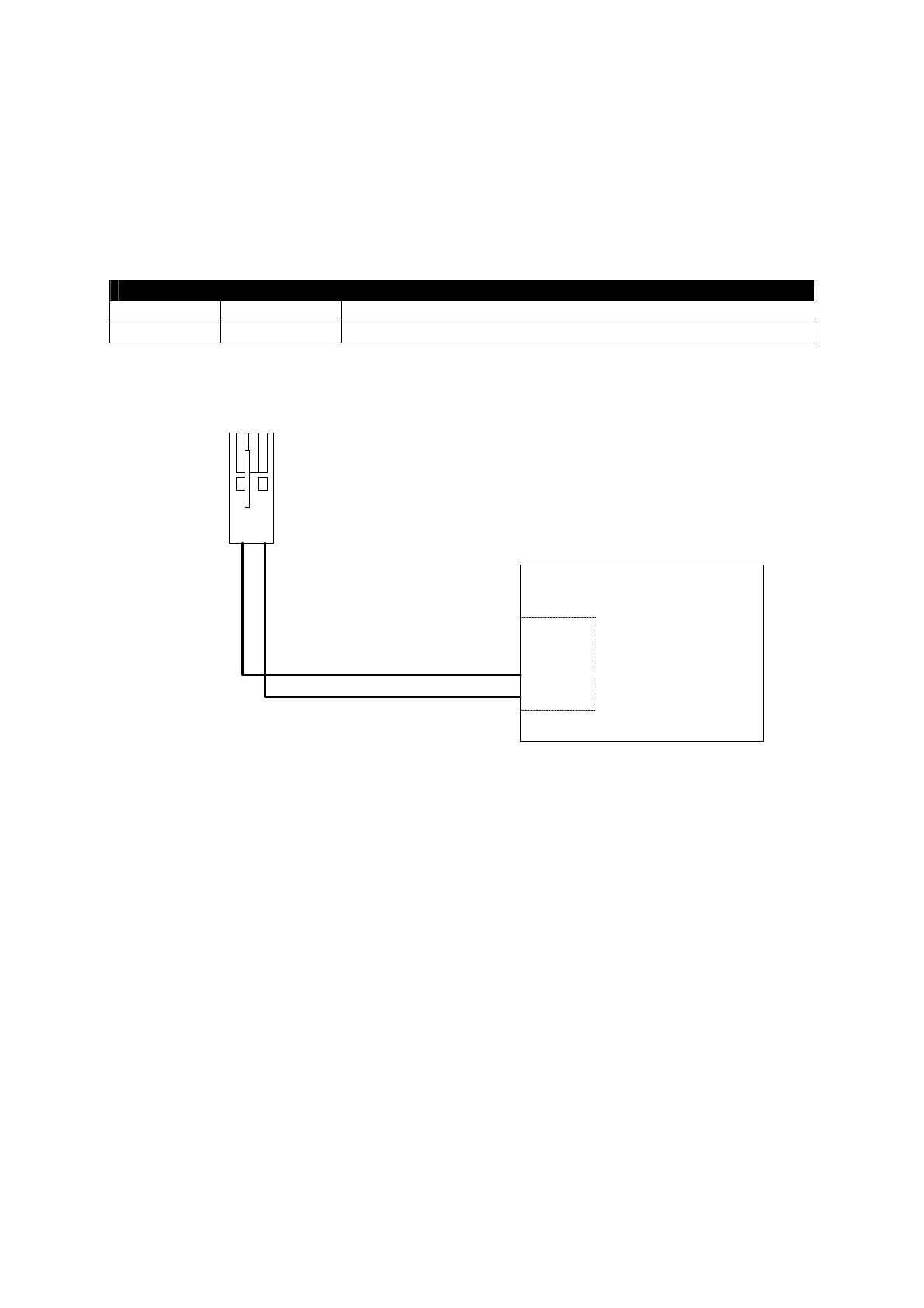

A device controlled via RS-232 can be connected as described below.

IR 1 - IR 4 RS-232 Port Description

Pin 1 TxD Data from Assistant or Assistant-S

Pin 2 GND Ground

Assistant or Assistant-S

IR 1 to IR 4

Controlled Device

RS-232

RxD

TxD

GND

Ground

Signal Output

1 2
