Cuenod C 75 - Diffuser and Injector Settings

34
0306 / 13 013 497A

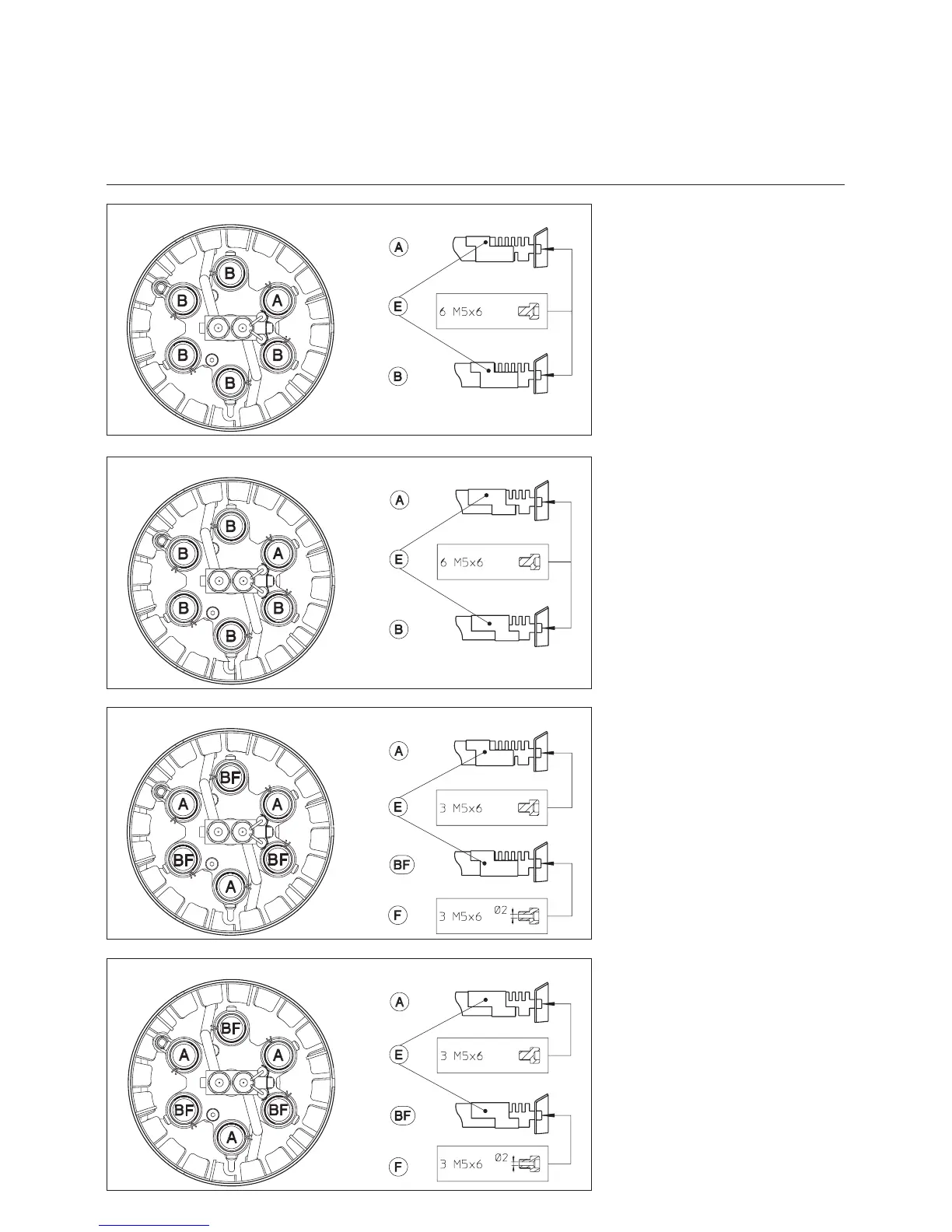

Factory setting
5 slots open to the outside + 1 slot
inside on 1 diffuser A according to
shutter E position.
Fix the baffle with 6 normal screws
M5 x 6
5 slots open to the outside and 0 slot
inside on 5 diffusers B according to
shutter E position.
C 100 B Natural gas
C 75 B Propane gas - Groningen gas H
C 100 B Propane gas - Groningen gas H
Recommended setting
3 slots open to the outside +1 slot
inside on 1 diffuser A according to
shutter E position.
Fix the baffle with 6 normal screws
M5 x 6
3 slots (propane) or 2 slots
(GroningenH) open to the outside and
0 slots inside on 5 diffusers indicated B
according to the shutter position E.
Factory setting
5 slots open to the outside +1 slot
inside on 3 diffusers A according to
shutter E position.
Fix the baffle with 3 normal screws
M5 x 6
5 slots open to the outside and 0 slot
inside on 3 diffusers BF according to
shutter E position
Fix the baffle with 3 pierced screws
M5 x 6
Recommended setting
3 slots open to the outside +1 slot
inside on 3 diffusers A according to
shutter E position
Fix the baffle with 3 normal screws
M5 x 6
3 slots (propane) or 2 slots
(GroningenH) open to the outside and
0 slots inside on 3 diffusers indicated
BF according to the shutter position E.
Fix the baffle with 3 pierced screws
M5 x 6
C 75 B Natural gas
Start up
Settings
Diffusers Injectors
