Chapter 2: Pre-Installation Planning
Operational Clearance — EDGE 2 Controllers
Mount the EDGE 2 Controllers and the EDGE PSU 24V 36W in a location that has sufficient air circulation
around the box and can be easily accessed for service. Minimum clearance for an EDGE PSU 24V 36W
is 22” W x 27” H. Minimum clearance for an EDGE 2 Controller is 32” W x 34” H.

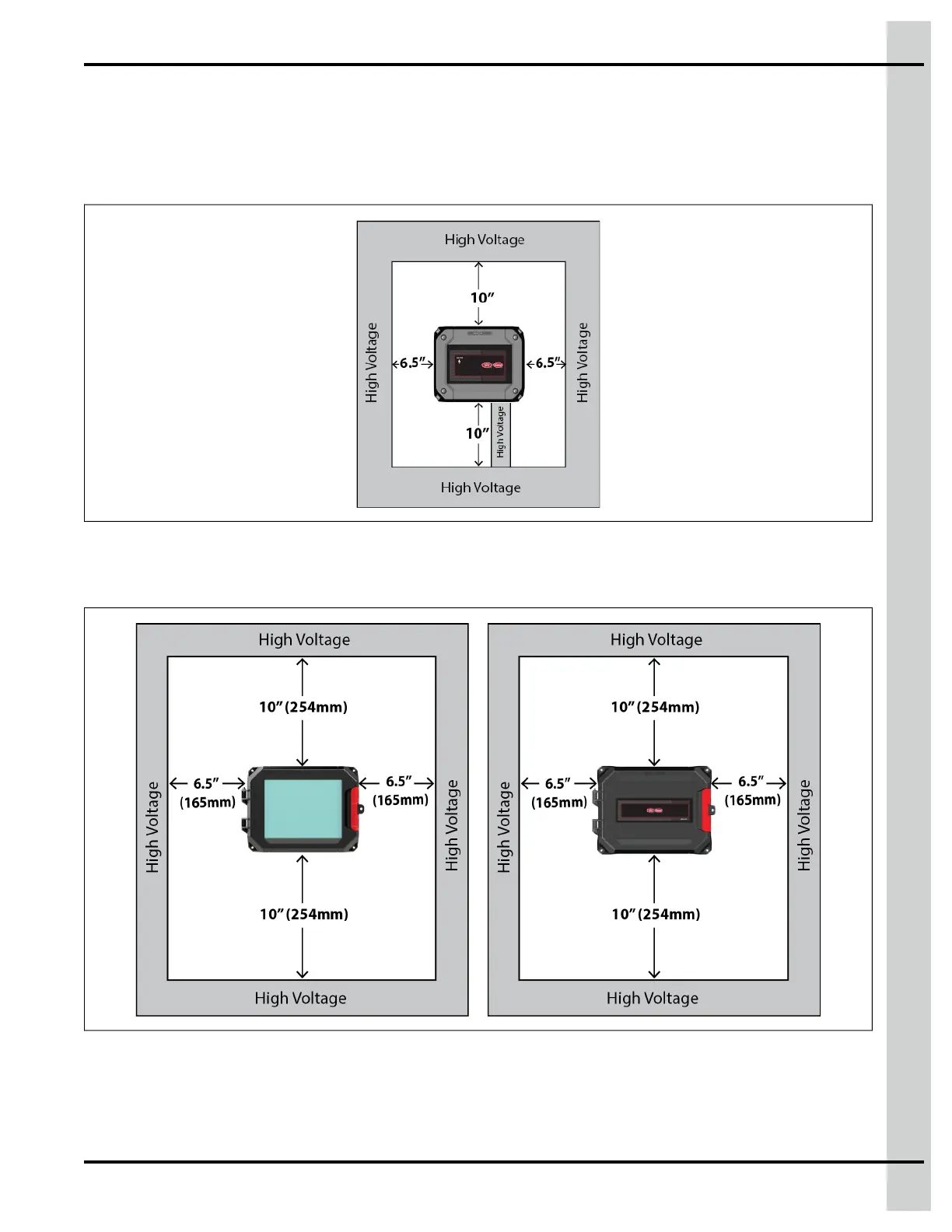

Figure 2-2 Minimum clearance - EDGE PSU 24V 36W
Figure 2-3 Minimum clearance - EDGE 2 Controllers
Operational Clearance — EDGE Expansion Boxes
The following minimum clearances must be respected around the EDGE enclosures.
890–00687 EDGE 2
29
