Chapter 4: EDGE 2 Controller Installation

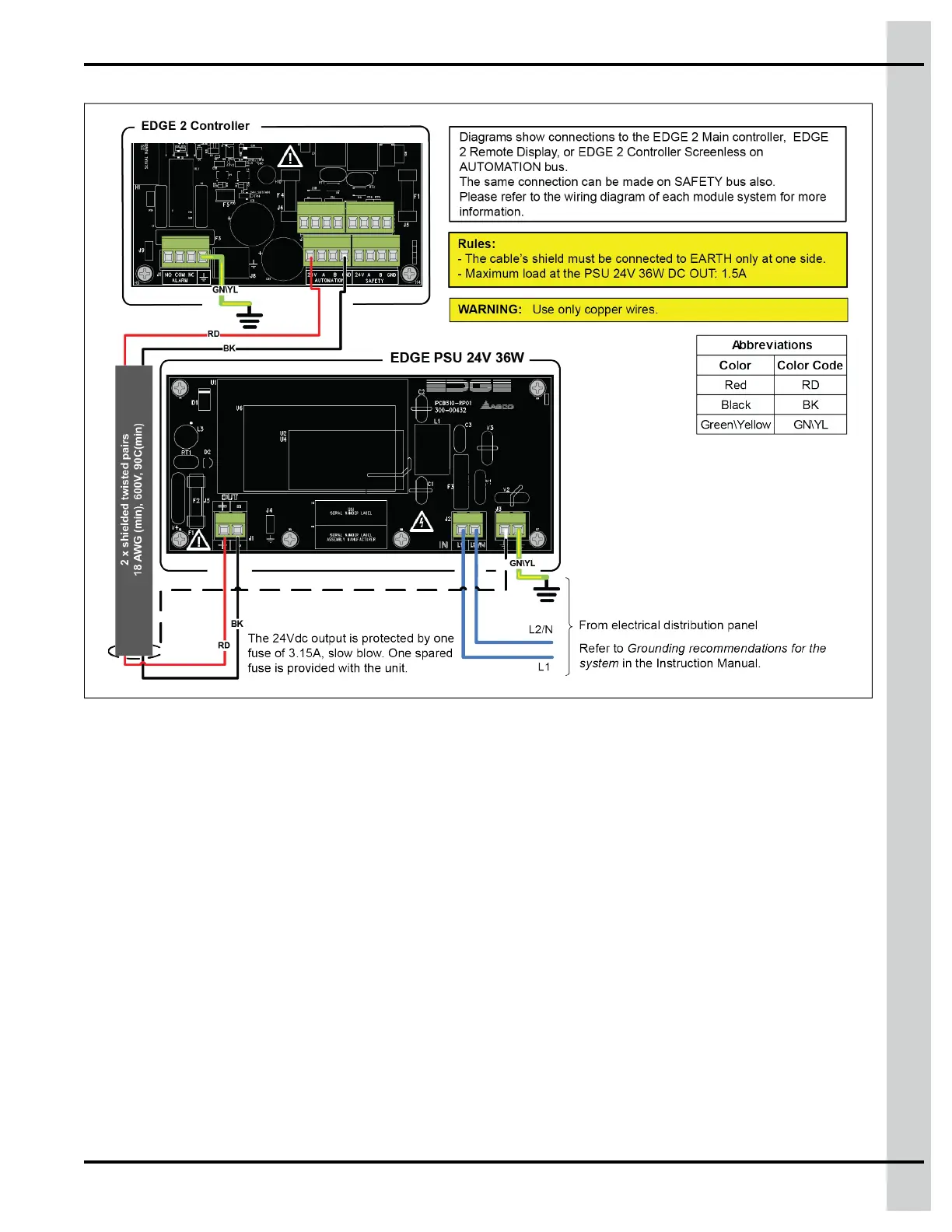

Figure 4-6 Power Connections for EDGE 2 Controllers
Connecting the Alarm Relay
1. Locate the ALARM terminals on the EDGE 2 Controller.
2. Connect the voltage source wire needed to switch in the terminal block named ALARM – COM.
3. Connect one load from the Alarm output: terminal ALARM - NO or terminal ALARM – NC.
4. From the load, connect to the 24 VDC return.
Refer to the wiring diagrams for more configurations.
