Cumberland EDGE 2 System - EDGE 2 Basic Network; Expansion Plug-In Modules

Chapter 1: Introduction
EDGE Weather Station can measure wind speed, wind direction, outside temperature, outside humidity,
and atmospheric pressure.
EDGE 4IN-2V-8DO
This module allows the control of 8 control outputs (pilot duty) and the contacts feedback reading of
relays or contactors from loads. This module is used to build virtual Expansion Box. The module is an
opened enclosure which have to put in a cabinet.
EDGE 2 Basic Network

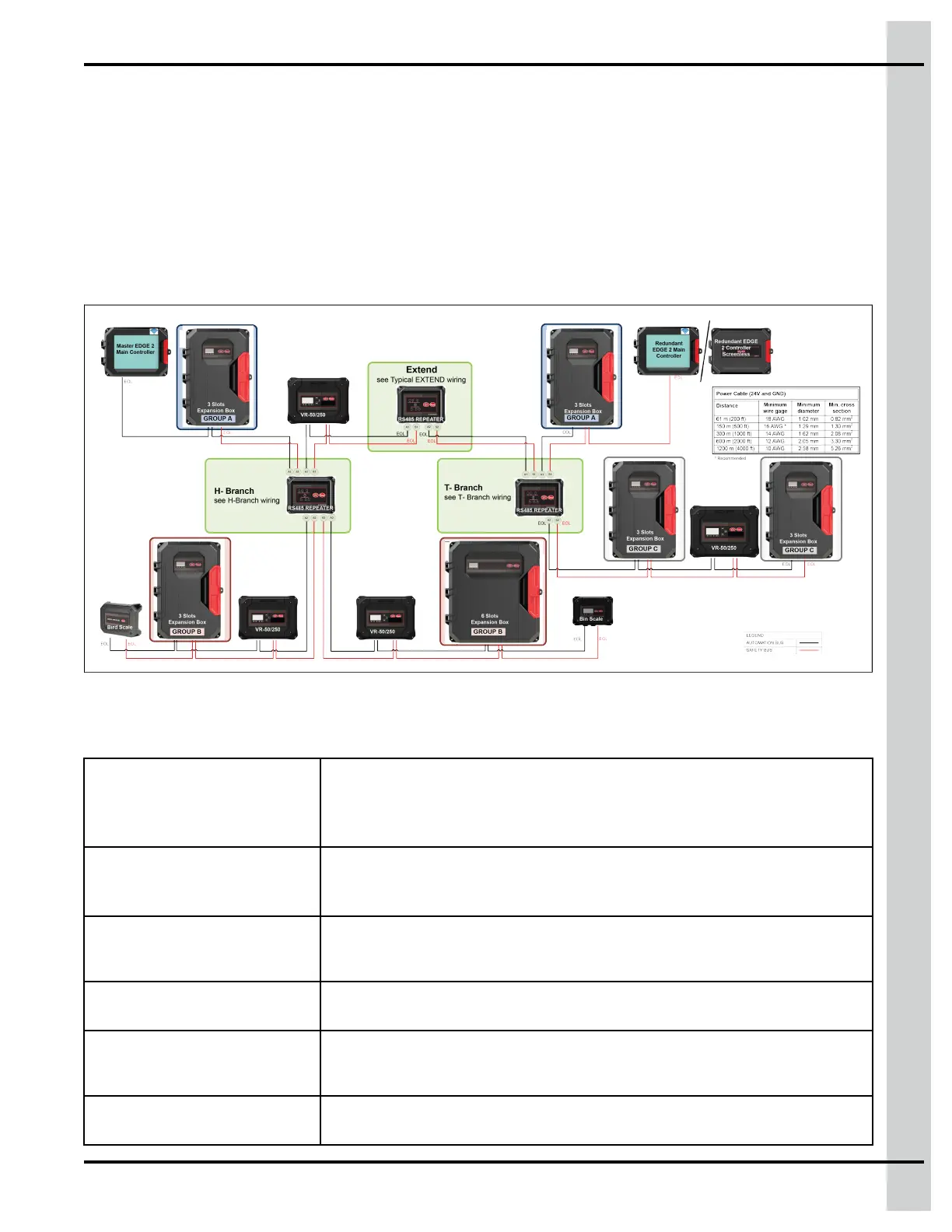

Figure 1-3 EDGE Redundancy Scheme Example
Expansion Plug-In Modules
Table 1-1 Plug-in Modules Used in Expansion Boxes
EDGE 8IN-4V-6REL FAILSAFE
WITH PLUGIN RELAY
Eight sensor inputs (4-20mA, 0-5V, temperature, dry contact), four 0-10V out-
puts , with a possibility of controlling up to four variable output power modules
(SSR). This module can have up to six plug-in relays. Two 24VDC outputs are
available for power sensors.
EDGE 8IN-4V-6REL FAILSAFE Eight sensor inputs (4-20mA, 0-5V, temperature, dry contact), four 0-10V out-
puts , with a possibility of controlling up to four variable output modules (SSR).
This module can have up to six plug-in relays.
EDGE 16IN-6REL WITH
PLUGIN RELAY
16 sensor inputs (4-20mA, 0-5V, temperature, dry contact). This module can
have up to six plug-in relays. Two 24VDC outputs are available to power
sensors.
EDGE 16IN-6REL 16 sensor inputs (4-20mA, 0-5V, temperature, dry contact). This module can
have up to six relays. Two 24VDC outputs are available to power sensors.
EDGE 4IN-8REL WITH
PLUGIN RELAY
Four sensor inputs (4-20mA, 0-5V, temperature, dry contact). This module can
have up to eight plug-in relays. Two 24VDC outputs are available to power
sensors.
EDGE 4IN-8REL Four sensor inputs (4-20mA, 0-5V, temperature, dry contact). This module can
have up to eight relays. Two 24VDC outputs are available to power sensors.
890–00687 EDGE 2
9
