Chapter 5: Expansion Box and Virtual Expansion Box Installation

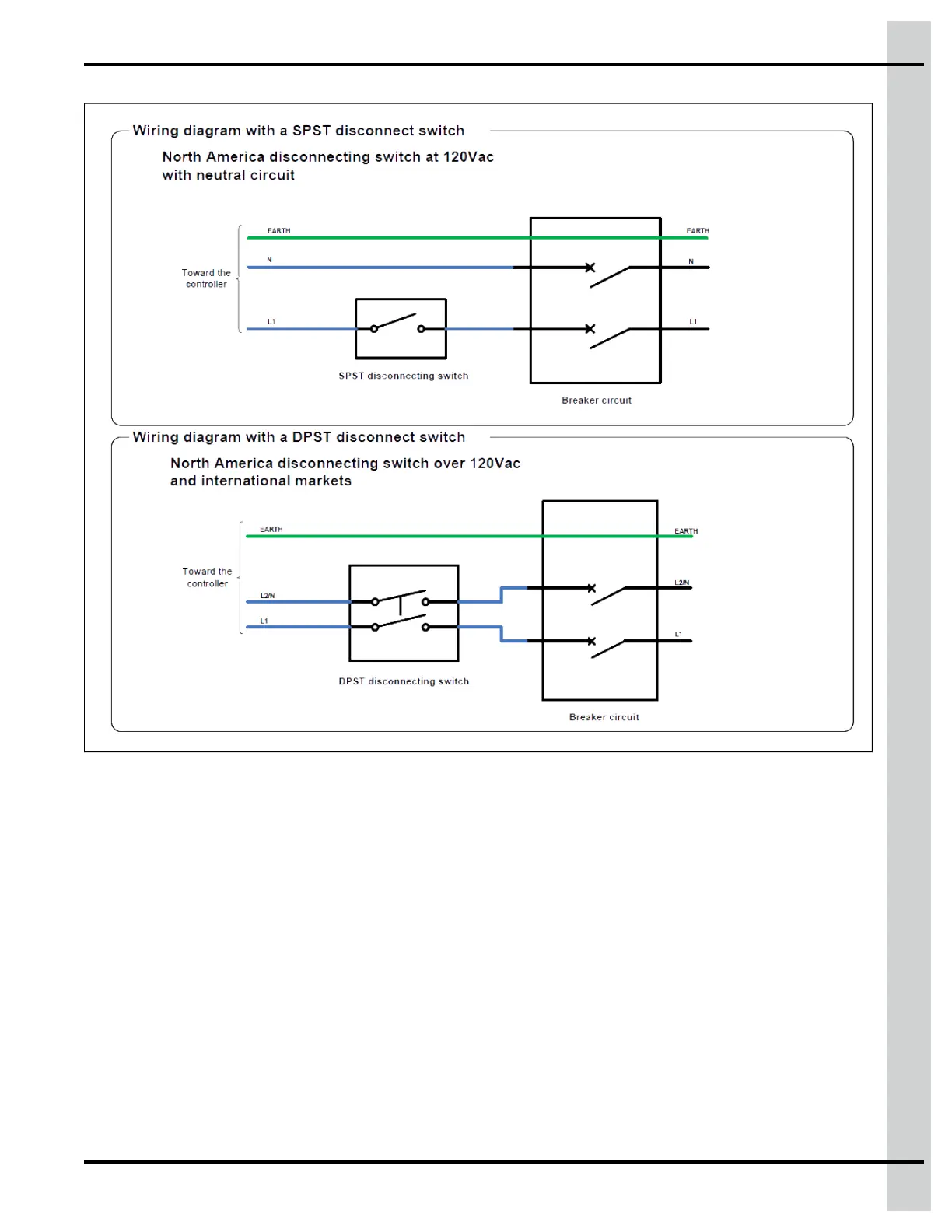

Figure 5-4 Disconnect switch wiring
Connecting Light Dimmer Output
Before You Begin
Determine how many lamps that can be installed according to the power factor (PF) for each Zone and
make sure the wiring supports the required power according to your calculation. Refer to Power Output
Formulas, page 79 and follow these steps:
1. Determine how many fixtures or lights you could install according to the power factor (PF) for each
zone.
2. Make sure the wiring supports the calculation.
890–00687 EDGE 2
79
