Cumberland EDGE 2 System - Page 78

Chapter 5: Expansion Box and Virtual Expansion Box Installation

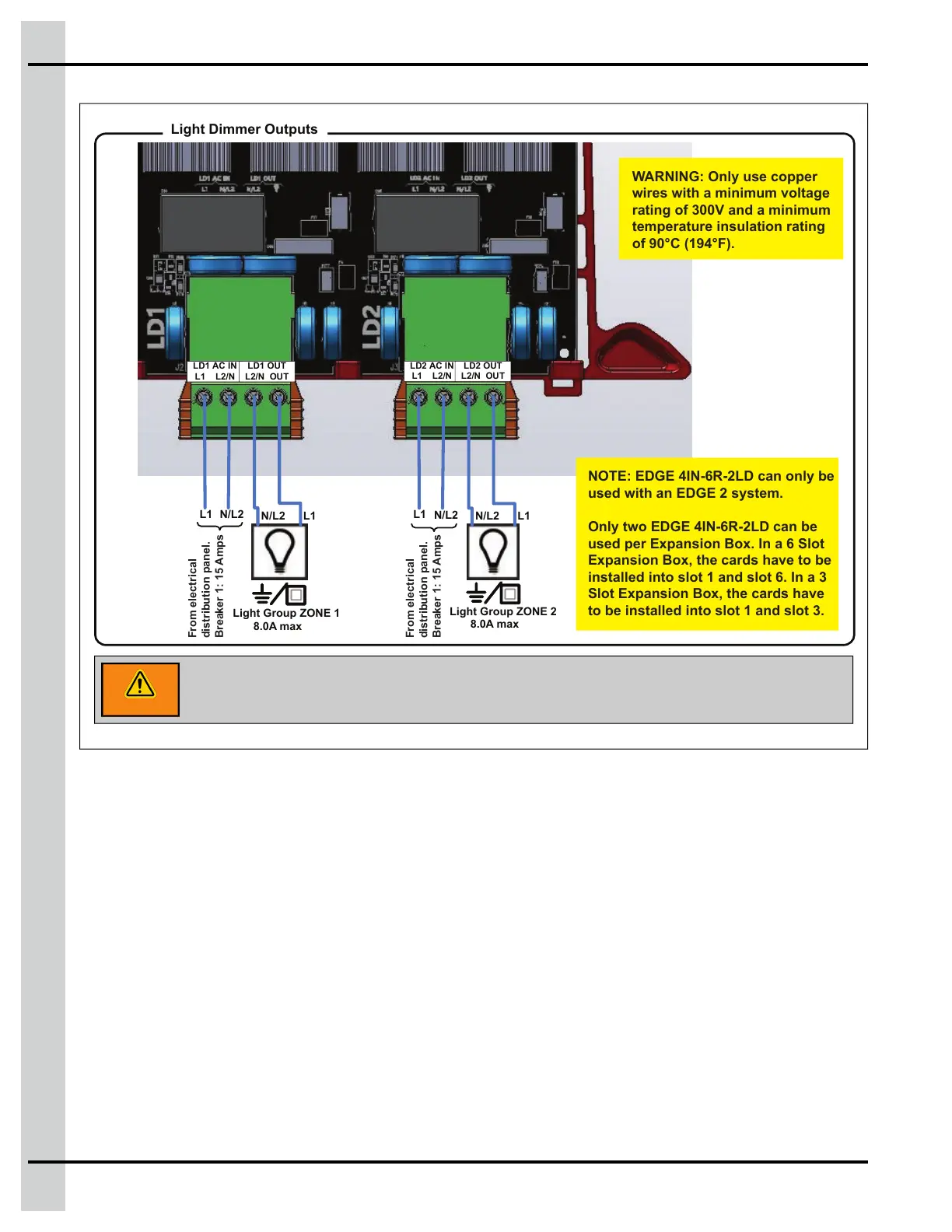

Figure 5-3 Light Dimmer Outputs
Light Group ZONE 1
8.0A max
L1
N/L2
N/L2
L1
Light Dimmer Outputs
L1
N/L2
N/L2
L1
Light Group ZONE 2
8.0A max
LD2 AC IN
L1 L2/N
LD2 OUT
L2/N OUT
LD1 AC IN
L1 L2/N
LD1 OUT
L2/N OUT
From electrical distribution panel. Breaker 1: 15 Amps From electrical distribution panel. Breaker 1: 15 Amps
NOTE: EDGE 4IN-6R-2LD can only be
used with an EDGE 2 system.
Only two EDGE 4IN-6R-2LD can be
used per Expansion Box. In a 6 Slot
Expansion Box, the cards have to be
installed into slot 1 and slot 6. In a 3
Slot Expansion Box, the cards have
to be installed into slot 1 and slot 3.
WARNING: Only use copper
wires with a minimum voltage
rating of 300V and a minimum
temperature insulation rating
of 90°C (194°F).
WARNING
Use only copper wires with EDGE Expansion Box terminal blocks.
78
890–00687 EDGE 2
