Chapter 4: EDGE 2 Controller Installation

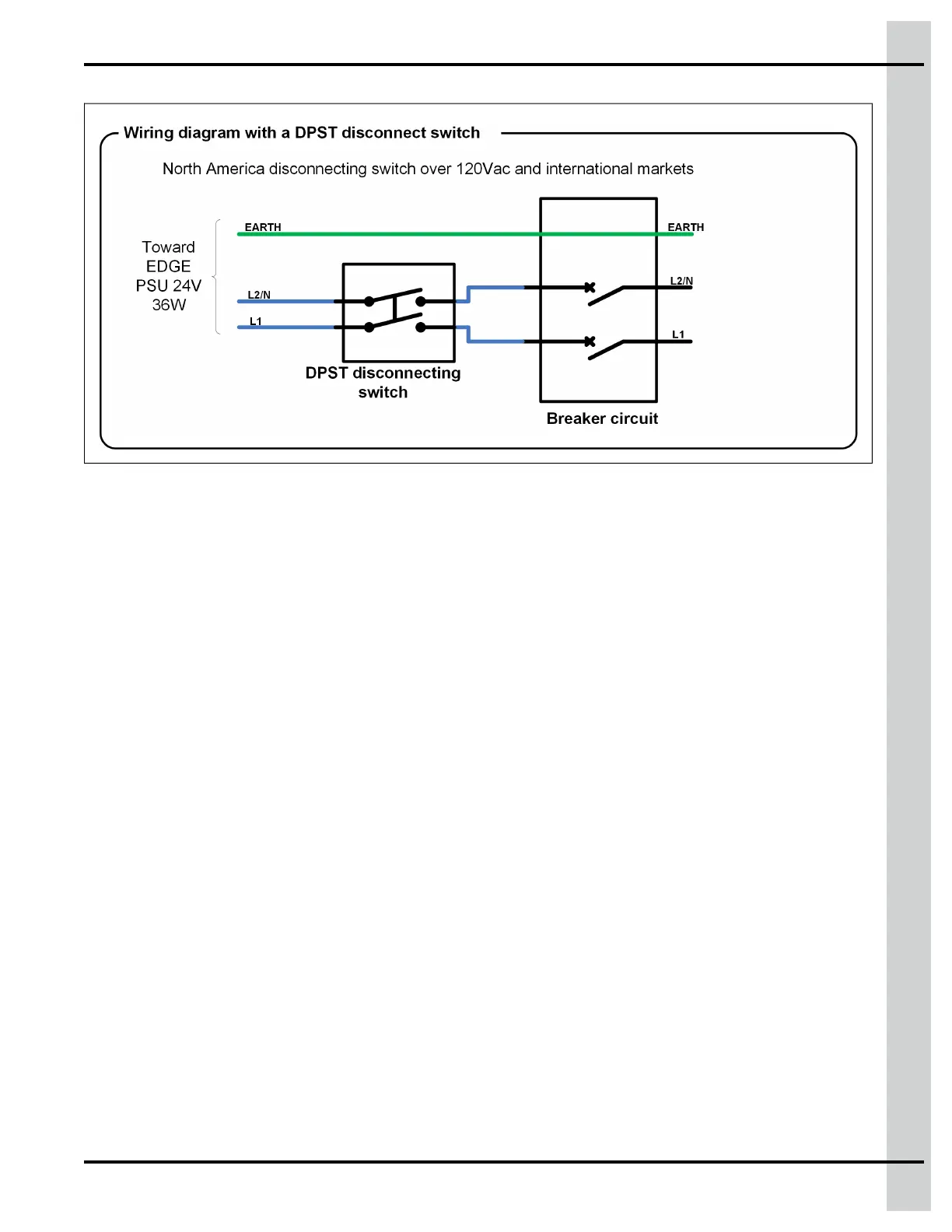

Figure 4-5 DPST Disconnect Switch Wiring for PSU 24V 36W
DC Output Connections
What you should know
The terminal used for 24Vdc output is named OUT. The OUT (+) is the positive output. The OUT (-) is the
output return. The EDGE PSU 24V 36W allows up to a load of 1.5A under 24Vdc.
NOTE: A minimum wire gauge of 18 AWG (diameter of 1.02mm or cross sectional area of 0.82mm
2
) is
required for proper operation. The maximum cable length allowed (including cable extensions) is
112m (370ft).The cable must be twisted and shielded. The minimum temperature insulation is 90°
C (194°F). A voltage insulation of 600V is recommended.
890–00687 EDGE 2
55
