Cumberland EDGE 2 System - Page 54

Chapter 4: EDGE 2 Controller Installation
WARNING
A minimum temperature insulation cable rating of 90°C (194°F) is required.

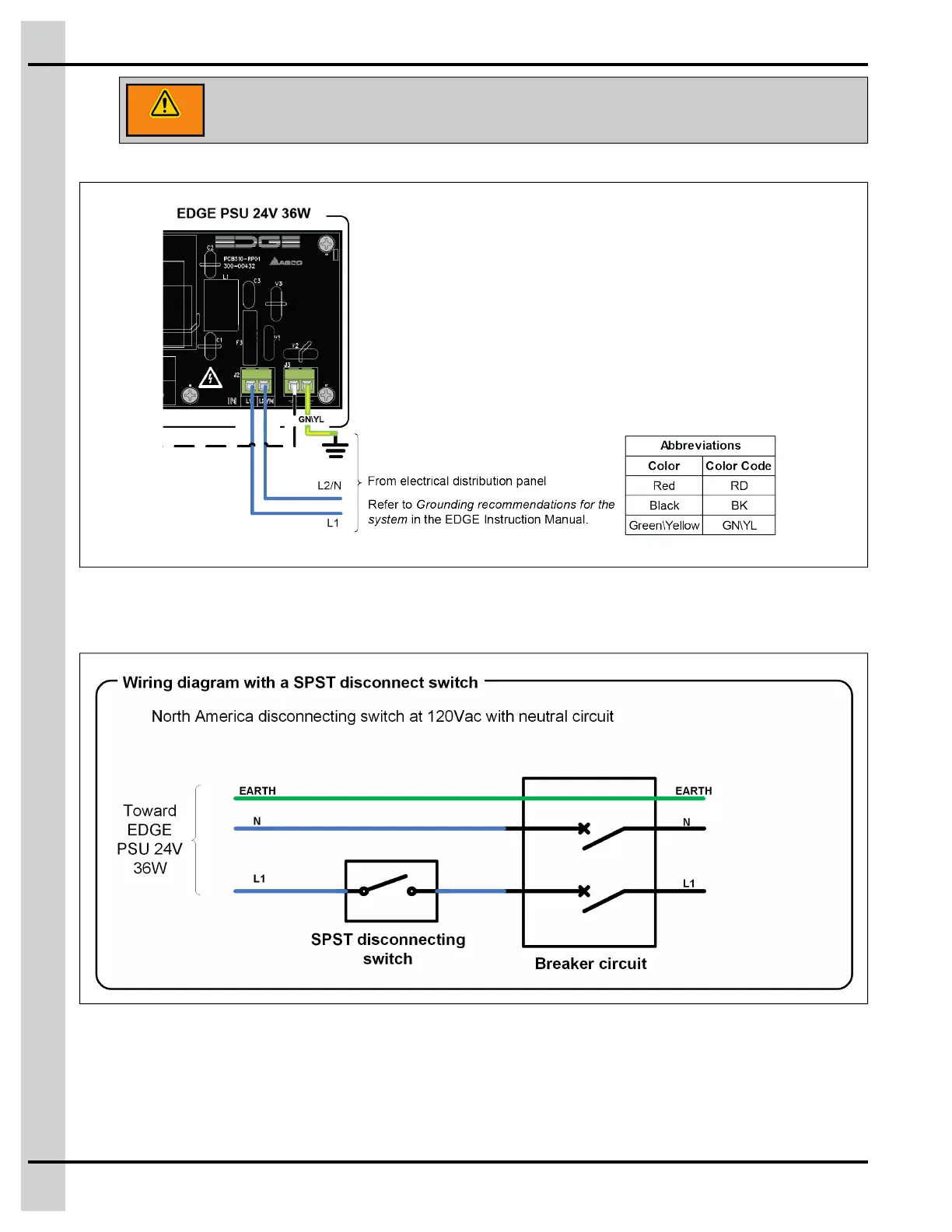

Figure 4-3 EDGE PSU 24V 36W Diagram
Figure 4-4 SPST Disconnect Switch Wiring for PSU 24V 36W
54
890–00687 EDGE 2
