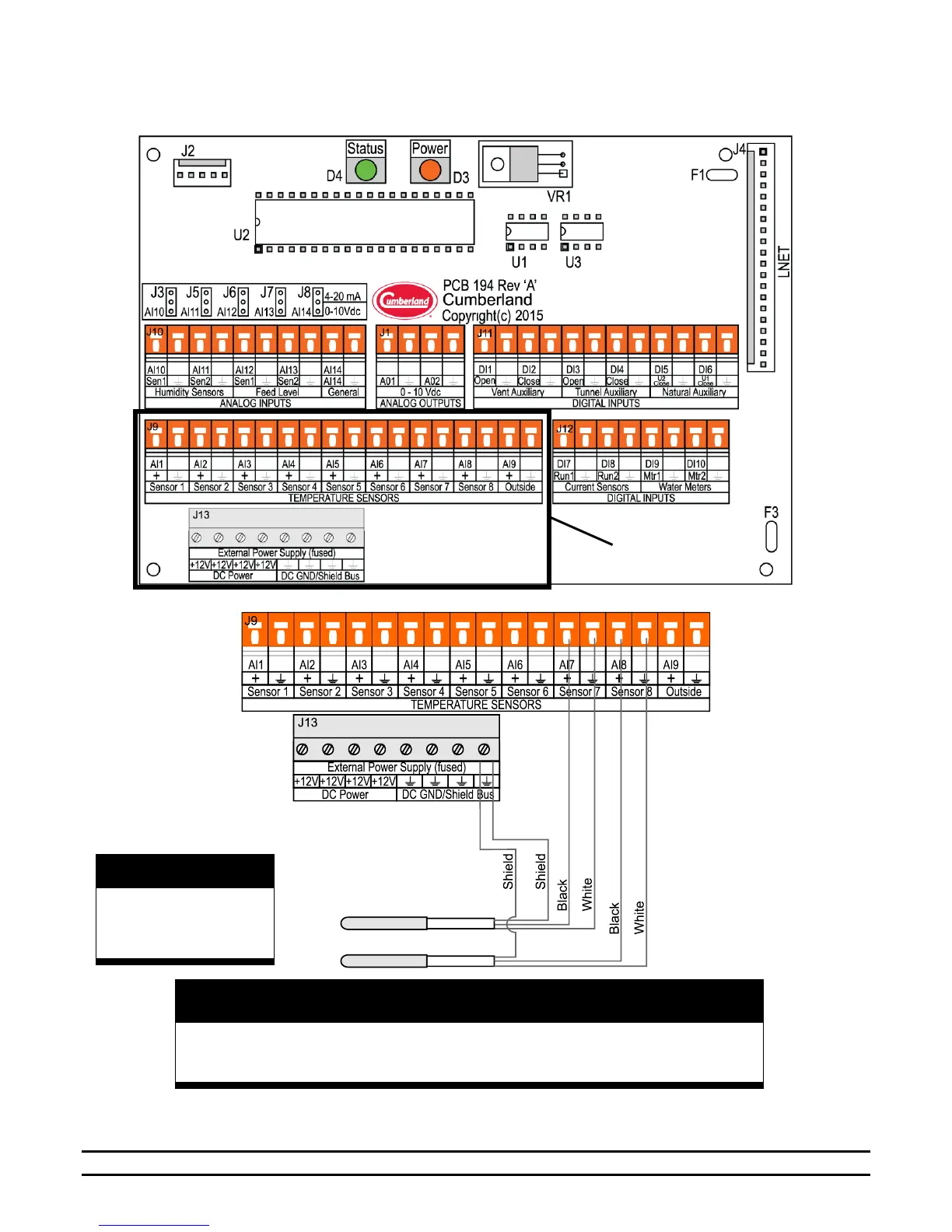

9.4 Connecting Temperature Sensor to Evolution 4000

Warning!

Tape Shields To Prevent Bare Wires From Touching!

PCB 194

WARNING!

LOW VOLTAGE!

Keep Separate From

High Voltage Wires!

Inset A

NOTE: Other sensors are

connected similarly.
