Part No. 4801-5338 Rev 2-2015 Evolution 4000 60 of 86

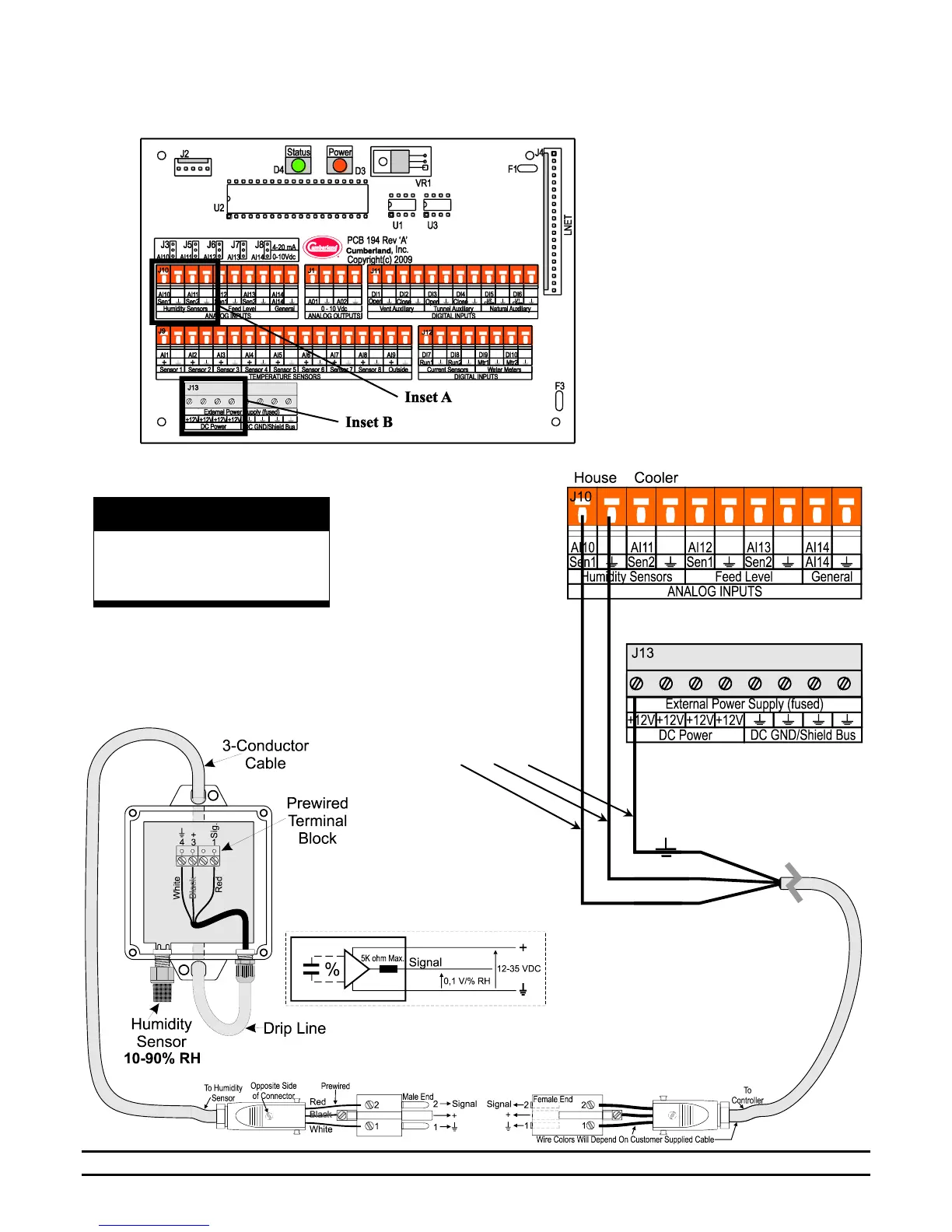

9.6 Connecting Humidity Sensor to Evolution 4000
WARNING!
LOW VOLTAGE!
Keep Separate From
High Voltage Wires!
PCB 194
Inset A
Inset B
Refer to 4802-5103 for Additional
Humidity Sensor Wiring &
Assembly Instructions.
Wire Colors Will
Depend On Customer
Supplied Cable.
+12V
Signal
