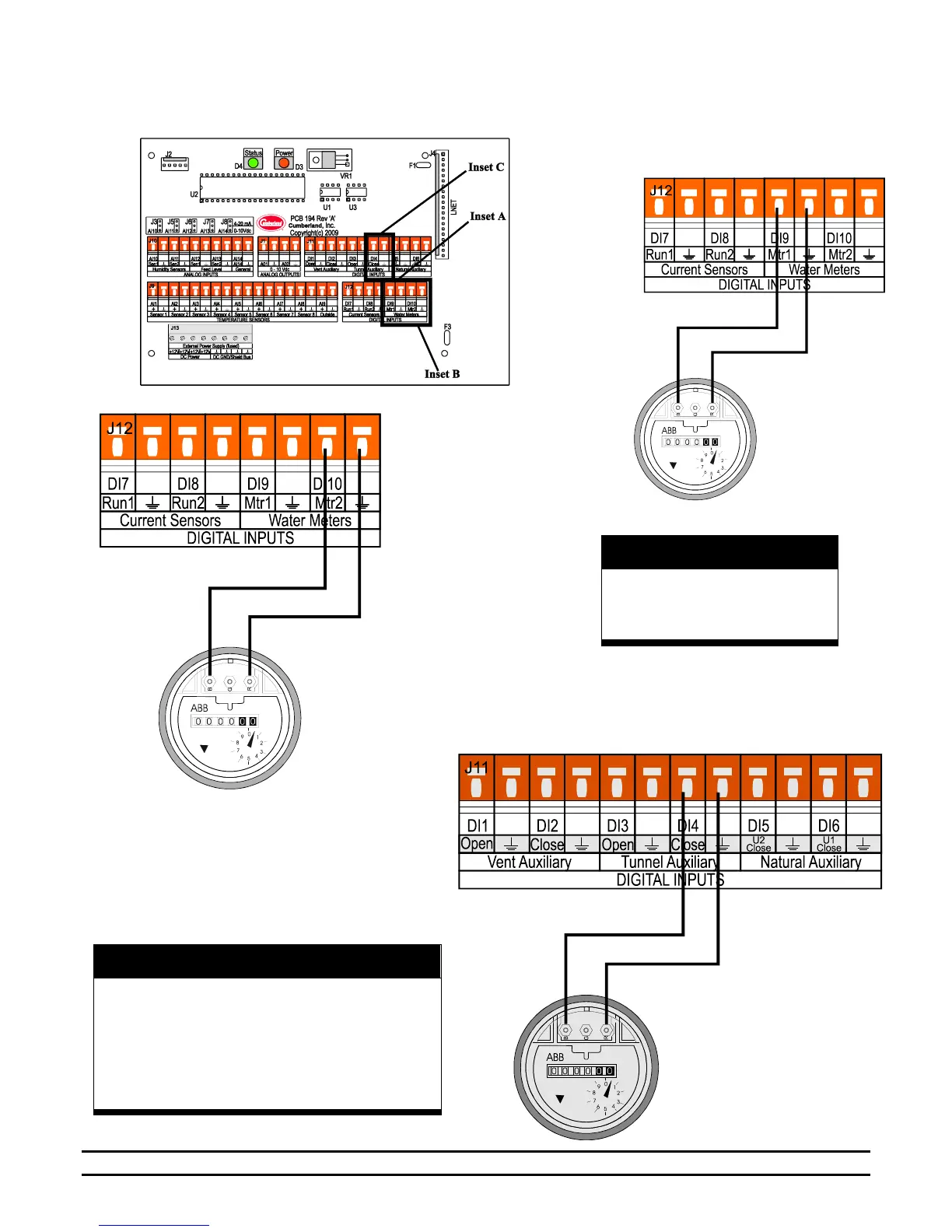

9.9 Connecting Water Meter to Evolution 4000
Inset A
Water
Meter #1
WARNING!
LOW VOLTAGE!
Keep Separate From
High Voltage Wires!
Inset B
Water
Meter #2
PCB 194
Inset C
Water
Meter #3
NOTE
WATER METER #3
A 3
rd
water meter can be connected to the EV-
4000 controller. If using a 3
rd
water meter,
“Ignore Inlet #2 Auxiliary Swx” is set to
“YES” on the Diagnostic Screen. “Yes” is the
factory default setting.
