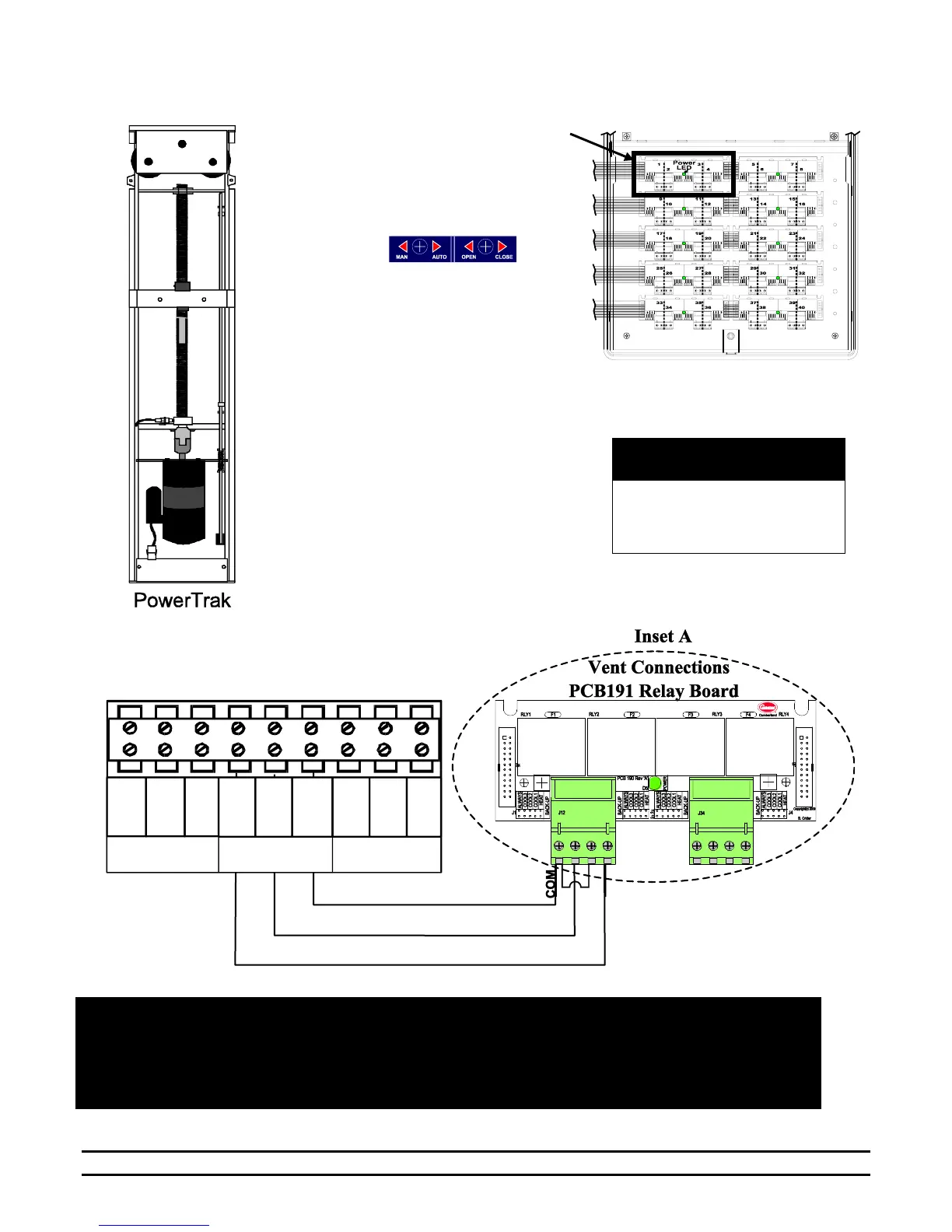

9.12 Connecting the PowerTrak to the Evolution 4000
NOTE: If curtain is setup to pull curtain up to open, then reverse wires connected to "OPEN" and "CLOSE"
terminals.
NOTE: Only 1 Power Trak can be connected to each Power Trak outlet. If Additional Power Traks are needed,
Then use of relay boxes is necessary to separate the load.
NOTE: All PowerTrak units will connect the same.
Inset B
WARNING!
Keep High Voltage (Or AC)
Separate From Low Voltage
Wires!
Open
COM
Close
Evolution 4000
Inset A
Apply Vent Label
to cover label.
Refer to Section 9.11.
PowerTrak
AUX
SWITCH
CONTROLLER
AC IN
HOT
NEUT.
LOWER
GND.
HOT
OUT
CLOSE
IN
OPEN
IN
COM
UPPER
