Part No. 4801-5338 Rev 2-2015 Evolution 4000 70 of 86

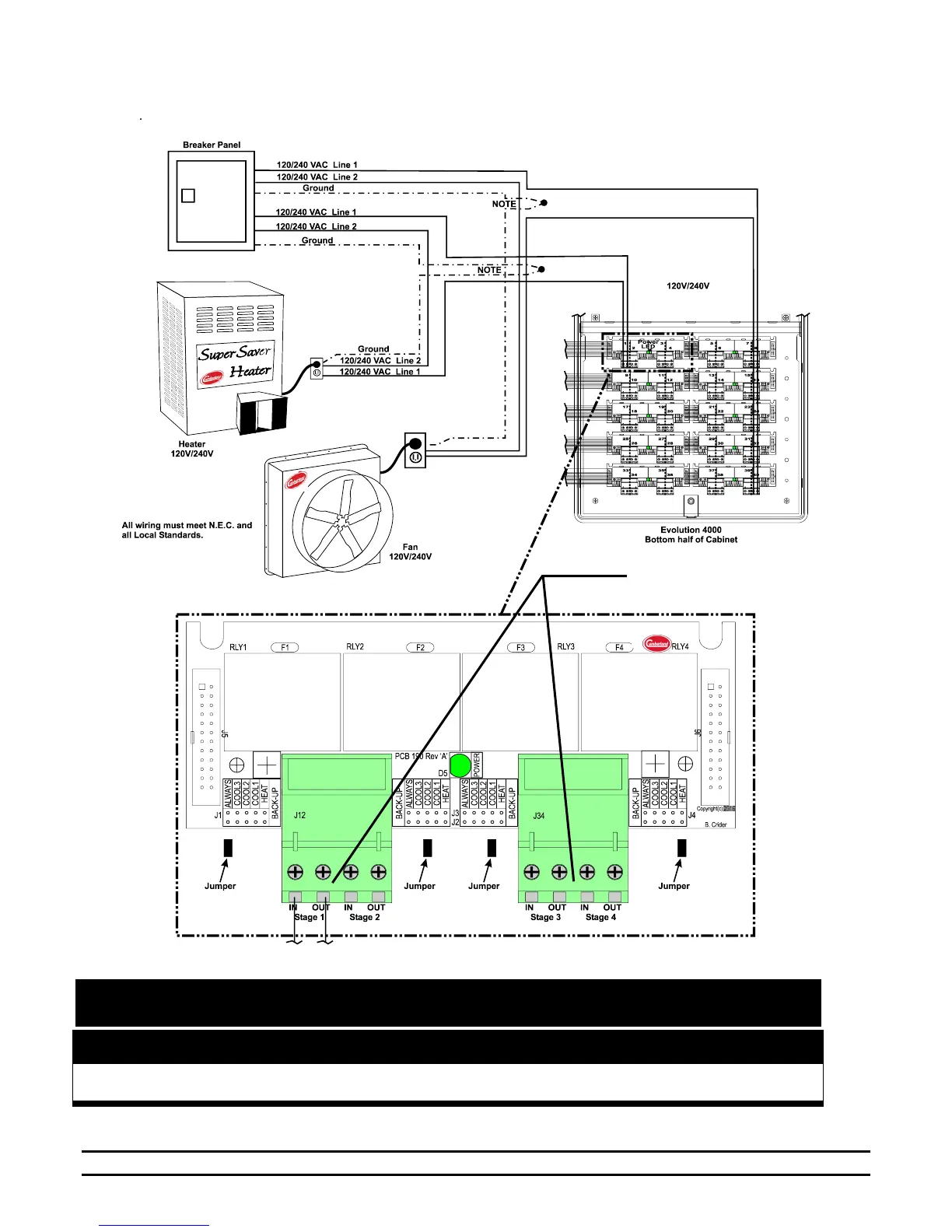

Connecting Power from Breaker to a Heat Stage And a
Cool Stage in the Evolution 4000
Terminal Blocks for
Stage connections
9.17 Evolution 4000 Power Connection
NOTE: Example above shows how to wire stages to heating & cooling equipment. Stage numbers are
shown on label affixed to Cover over Relay Board area.
WARNING!
Keep High Voltage (Or AC) Separate From Low Voltage Wires!
