Cybex FT 360 Functional Trainer Owner’s Manual
Assembly
Page 6-10

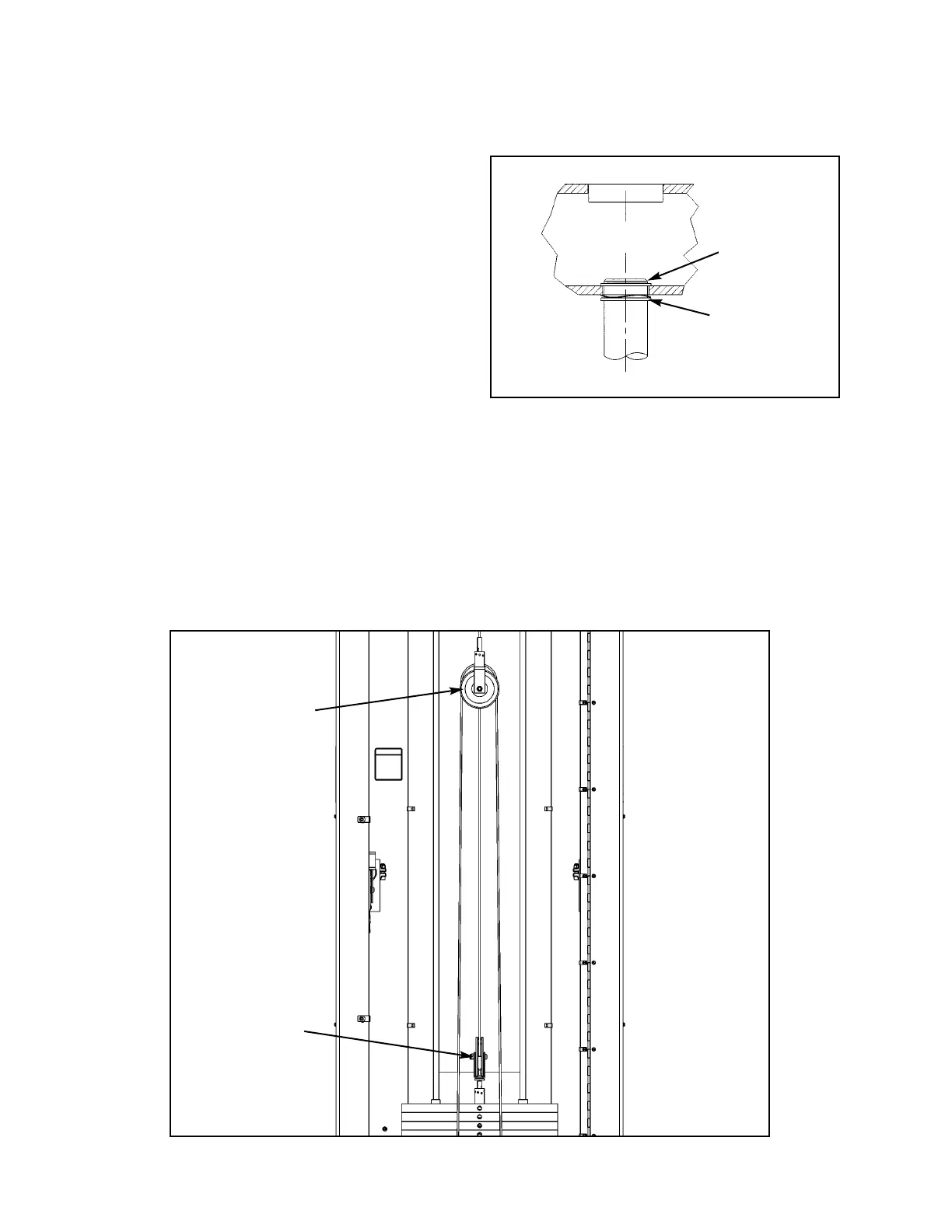

Figure 7
Reinstall pulley
Hold pulley to
prevent pulley
from falling when
reinstalling pulley
from top weight.
J. Carefully slide top weight onto guide rods.
K. On one of the guide rods, place lower
snap ring and wave washer at least two
inches below top end of guide rod.
Carefully lean guide rods back inside of
column into guide rod holes.
L. Raise guide rod up through mounting
hole and install the upper snap ring into
the upper grove of the guide rod. See
Figure 6.
M. Lower guide rod and secure wave
washer and lower snap ring. See
Figure 6.
NOTE: Snap rings must be installed
into the groove for proper installation.
N. Repeat steps K - M for securing the other guide rod.
O. Move pulley and cable back inside the column and reinstall pulley/cable back onto top
plate. See Figure 7.
Figure 6
Wave washer
and lower snap
ring in lower
groove
Upper snap
ring in upper
groove
Frame
