CYBEX FT-360S - Installing Foot Pads

Cybex FT-360S Functional Trainer Owner’s Manual
Installing Foot Pads
WARNING: Use extreme caution when installing foot pads. Failure to do so could result
in injury.
NOTE: A minimum of two people will be required to remove the FT-360S from the pallet.
1. Remove FT-360S from pallet (see steps 1A - 1C
and Figure 1).
Remove the four bolts securing the FT-360S A.
to the pallet. See Figure 1.
With one person on each side, carefully lift B.
FT-360S and remove FT-360S from pallet.
Place FT-360S where it will be used.C.
2. Installing foot pads onto stabilizers (see steps
2A - 2D and Figure 2).
Locate four foot pads 2.00 x 5.25 (#97) and two A.
stabilizers (#103).
Lay one of the stabilizers (#103) so that the bottom B.
side is facing up. See Figure 2.
Remove the backing from two of the foot pads and C.
install foot pads 2.00 x 5.25 (#97) as shown in Figure 2.
Repeat steps A - C for other stabilizer.D.
3. Installing foot pads onto frame (see steps 3A - 3E
and Figure 3).
Locate four foot pads 3.00 x 5.00 (#98).A.
Carefully tip FT-360S forward (do not exceed 30 degrees) or B.
just enough to install the foot pads. See Figure 3 on
next page.
While one person is holding the FT-360S in a tipped position, remove the backing from two of C.
the foot pads and install foot pads 3.00 x 5.00 (#98) onto frame as shown in Figure 3 and then
carefully lower FT-360S.
Carefully tip FT-360S backwards (do not exceed 30 degrees) or just so that there is enough D.
room to install two of the foot pads.
Repeat step 3C.E.

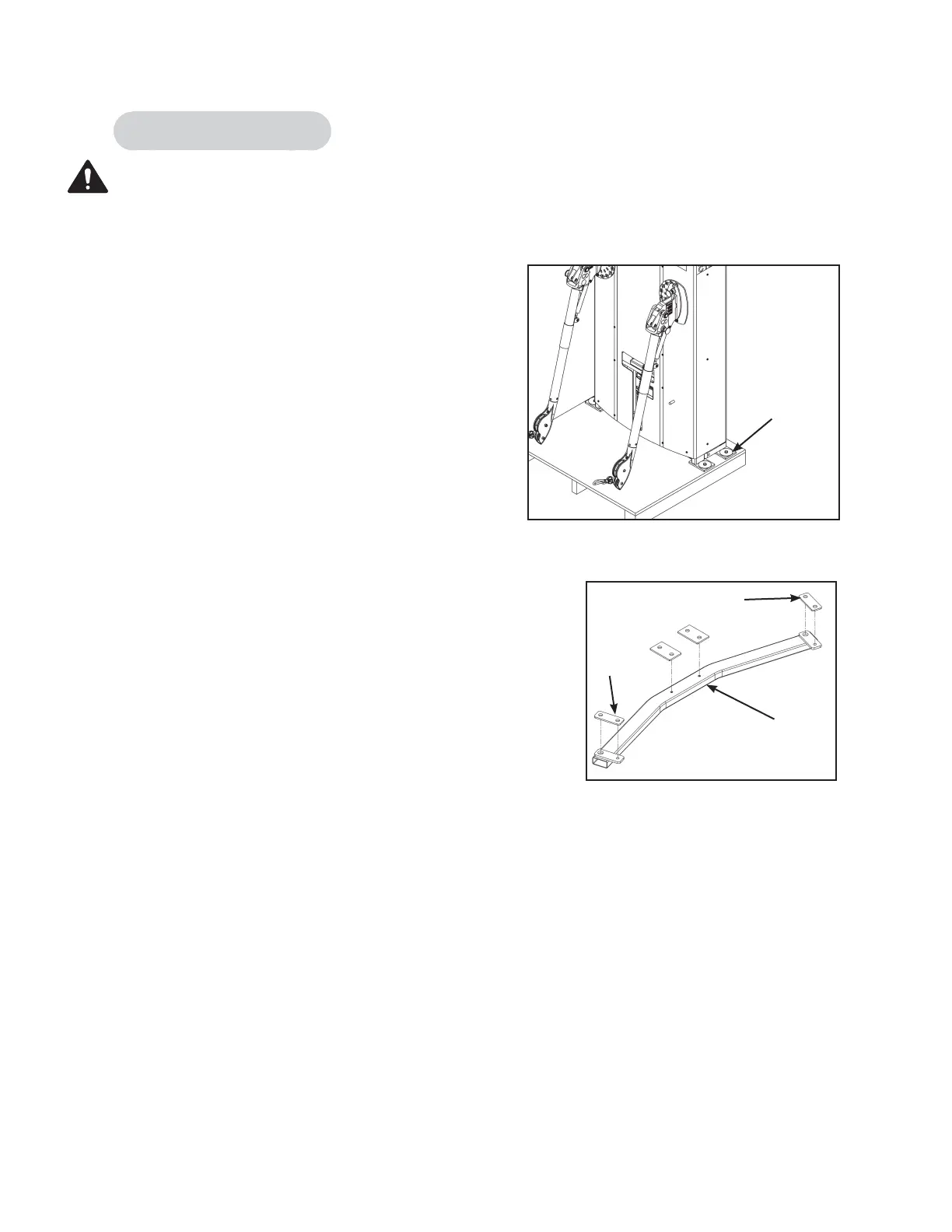

Figure 1
Remove
(4) bolts
securing
FT-360S
to pallet
103
97
97
Figure 2
Assembly
Page 6-4
