CYBEX LCX-425T - End Caps

Cybex 425T Treadmill Service Manual
Service
Page 4-8
C. Grasp each top platform and slide it up and off the treadmill.
End Caps
Tools Required
• Phillips head screwdriver
5. Remove the end caps.
A. Using a Phillips head
screwdriver, remove the two
screws securing each of the
bottom caps to the frame See
Figure 6.
B. Using a Phillips head
screwdriver, remove the three
screws securing each of the
lower top caps to the upper top
caps See Figure 7.
C. Using a Phillips head
screwdriver, remove the two screws
securing each of the upper top caps to
the top platforms See Figure 7.
6. Install the end caps.
A. Using a Phillips head screwdriver,
secure the two screws securing each
of the bottom caps to the frame See
Figure 6.
B. Using a Phillips head screwdriver, install
the two screws securing each of the
upper top caps to the top platforms See
Figure 7.
C. Using a Phillips head screwdriver, install
the three screws securing each of the
lower top caps to the upper top caps
See Figure 7.

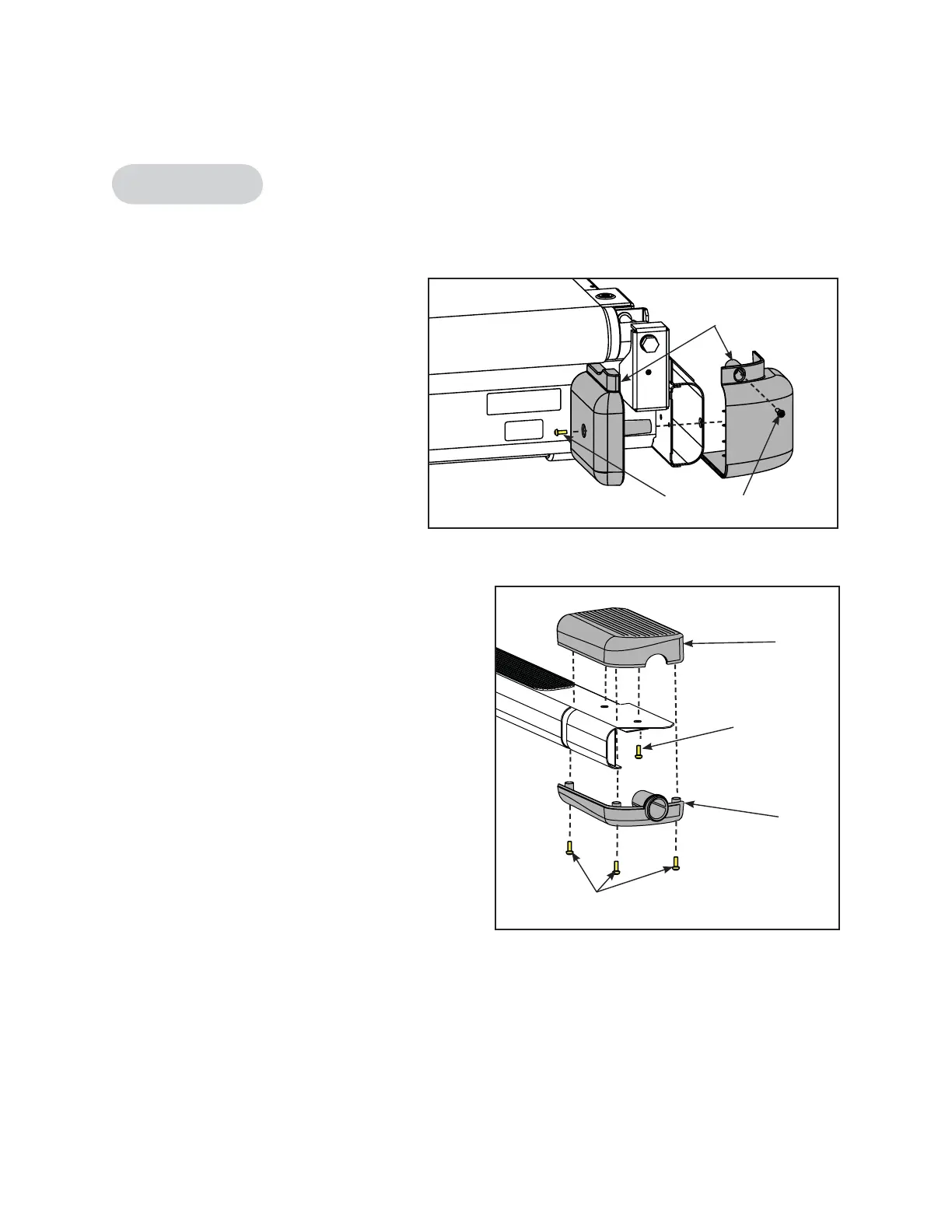

Figure 7
Figure 6
Screws (2)
Bottom
Caps
Upper
Top
Cap
Lower
Top
Cap
Screws (2)
Screws (3)
