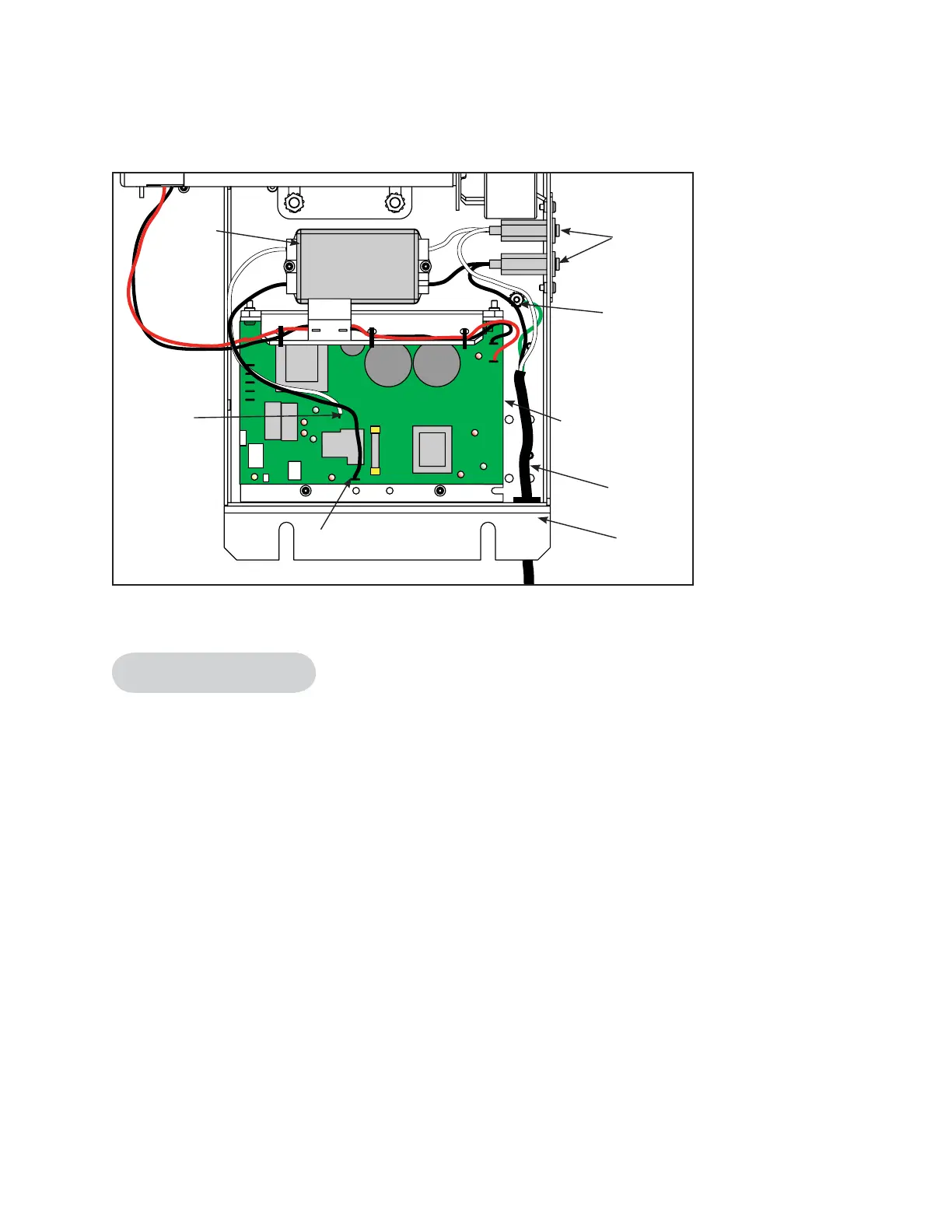

Figure 18
Circuit
Breakers
Line
Filter
AC Line 1 (AC1)
AC Line 2
(AC2)
Lower
Board
Power
Cord
Strain
Relief
Ground
Wire
Stud
Circuit Breakers
Tools Required
• Flat head screwdriver
9. Remove the circuit breakers.
A. Disconnect the four fast-on connectors that connect to the circuit breakers.
B. Using a flat head screwdriver, press the mounting clip on the circuit breaker and tilkt
the circuit breaker sideways.
C. Using the flat head screwdriver press in the other mounting clip and remove the circuit
breaker from the mounting plate. Repaet for the other circuit breaker.
10. Install the circuit breakers.
A. Insert the new circuit breakers into the holes in the mounting plates until they snap in.
NOTE: Each circuit breaker must have the same color cable connected to it. DO NOT mix the
black and white wires.
B. Connect the two white fast-on connectors the the front circuit breaker. See Figure 18.
C. Connect the two black fast-on connectors the the front circuit breaker. See
Figure 18.
Service
Page 4-23
D. Connect the white fast-on connectors from the power cord to the circuit breaker with
the white wire. See Figure 18.
