Configuring Device (Router Mode)
CHAPTER 5. CONFIGURING DEVICE (ROUTER MODE)
Monitoring

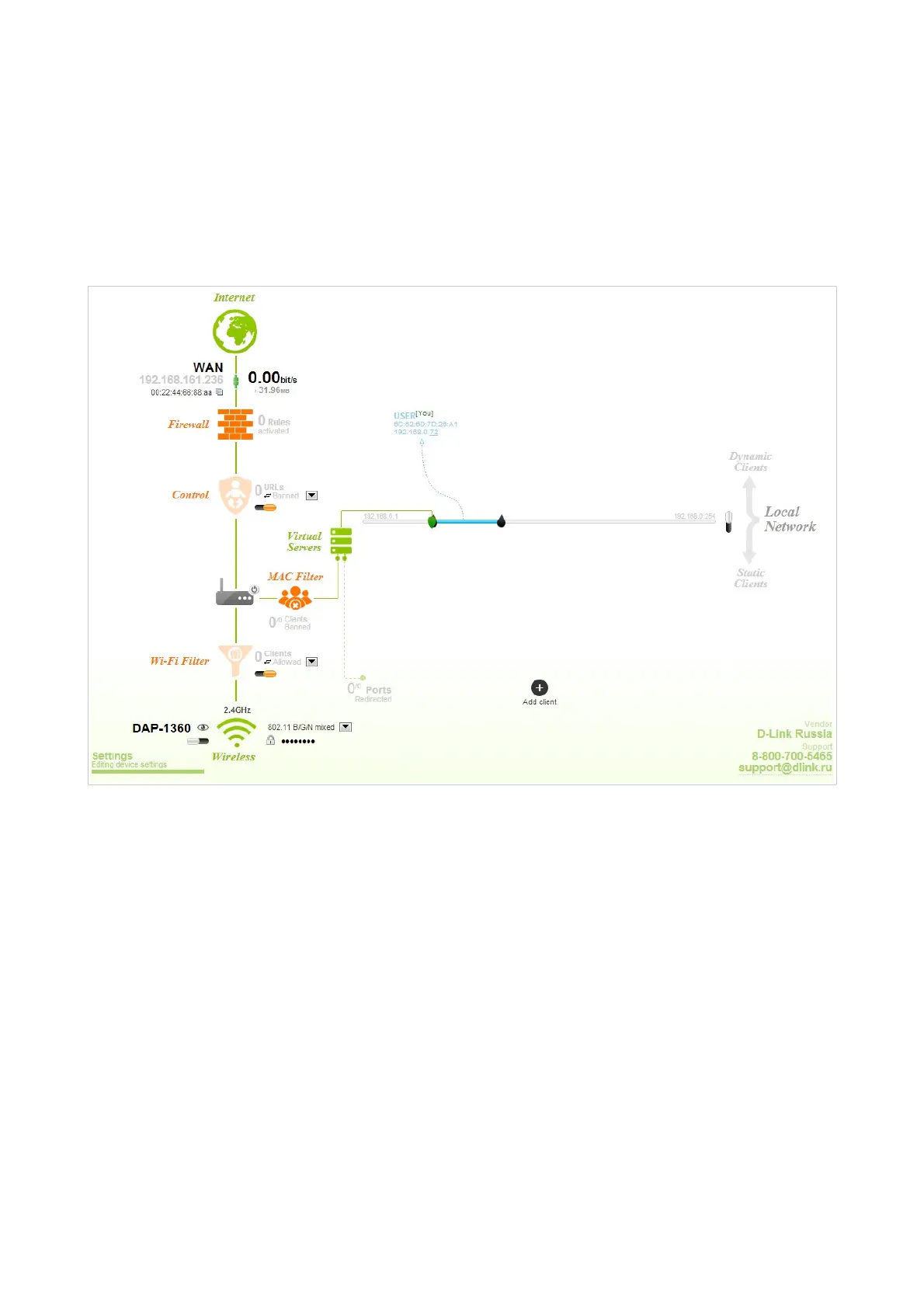

The page displays an interactive scheme which illustrates the access point's settings and the LAN
structure.
Figure 65. The Monitoring page.
Also you can modify the basic parameters of the access point on the Monitoring page. To access
the access point's advanced settings, click the Editing device settings link in the bottom left
corner of the page. For the detailed description of all the access point's functions, see the relevant
section of this manual.
Page 91 of 270

D-Link DAP-1360 Specifications

Power

power input	5V DC/1.2 A
power adapter socket	external power adapter

Operating Environment

operating temperature	0 ˚C to 55 ˚C
storage temperature	10 ˚C to 70 ˚C
operating humidity	10% to 90% non-condensing

Weight and Dimensions

weight	215 grams
dimensions	147.5 x 113 x 31.5 mm
