D-Link DAP-1360 User Manual

DAP-1360 Wireless N300 Access Point & Router
User Manual
Configuring Device (Router Mode)
Virtual Servers
On the Firewall / Virtual servers page, you can create virtual servers for redirecting incoming
Internet traffic to a specified IP address in the local area network.

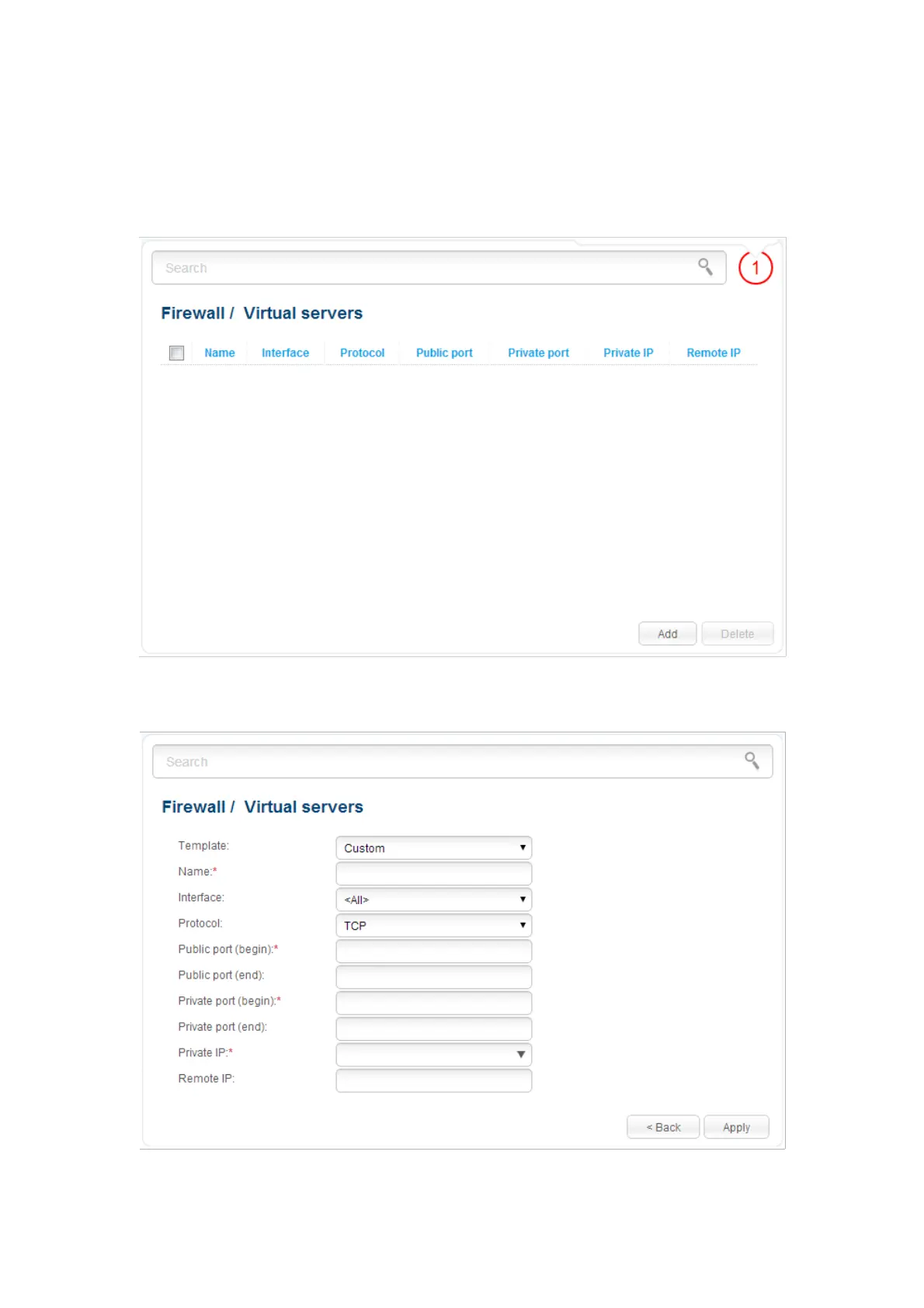

Figure 191. The Firewall / Virtual servers page.
To create a new virtual server, click the Add button.
Figure 192. The page for adding a virtual server.
Page 247 of 270

D-Link DAP-1360 Specifications

Power

power input	5V DC/1.2 A
power adapter socket	external power adapter

Operating Environment

operating temperature	0 ˚C to 55 ˚C
storage temperature	10 ˚C to 70 ˚C
operating humidity	10% to 90% non-condensing

Weight and Dimensions

weight	215 grams
dimensions	147.5 x 113 x 31.5 mm
