D-Link DAP-2690 - VLAN Port List

33D-Link DAP-2690 User Manual
Section 3 - Conguration

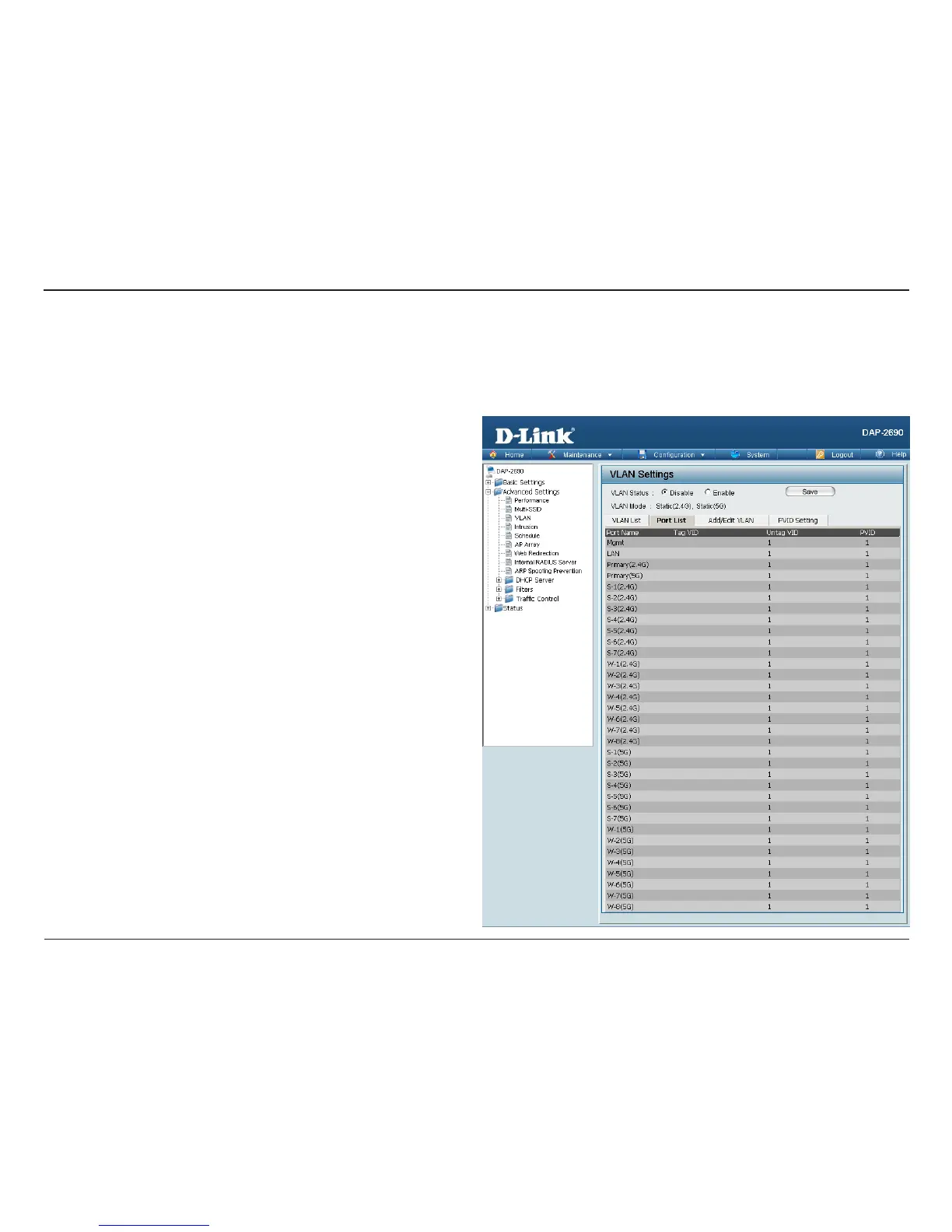

VLAN Port List
The Port List tab displays the current ports. If you want to congure the guest and internal networks on a Virtual LAN (VLAN), the switch and DHCP
server you are using must also support VLANs. As a prerequisite step, congure a port on the switch for handling VLAN tagged packets as described
in the IEEE 802.1Q standard. Once you have made the desired settings, click the Save button to let your changes take eect.
VLAN Status:
VLAN Mode:
Port Name:
Tag VID:
Untag VID:
PVID:
Click the Enable radio button. Next, click the Add/
Edit VLAN tab to add or modify an item on the VLAN
List tab.
The current VLAN mode is displayed.
The name of the port is displayed in this column.
The Tagged VID is displayed in this column.
The Untagged VID is displayed in this column.
The Port VLAN Identier is displayed in this column.
