D-Link DAP-2690 - Using the Console Port

74D-Link DAP-2690 User Manual
Section 3 - Conguration
You can connect to the DAP-2690 console port to congure device settings
via the command line.
1. Connect one end of the provided serial console cable to the console port
on the DAP-2690, and the other to an available serial port on the PC you
wll use to connect to the device.

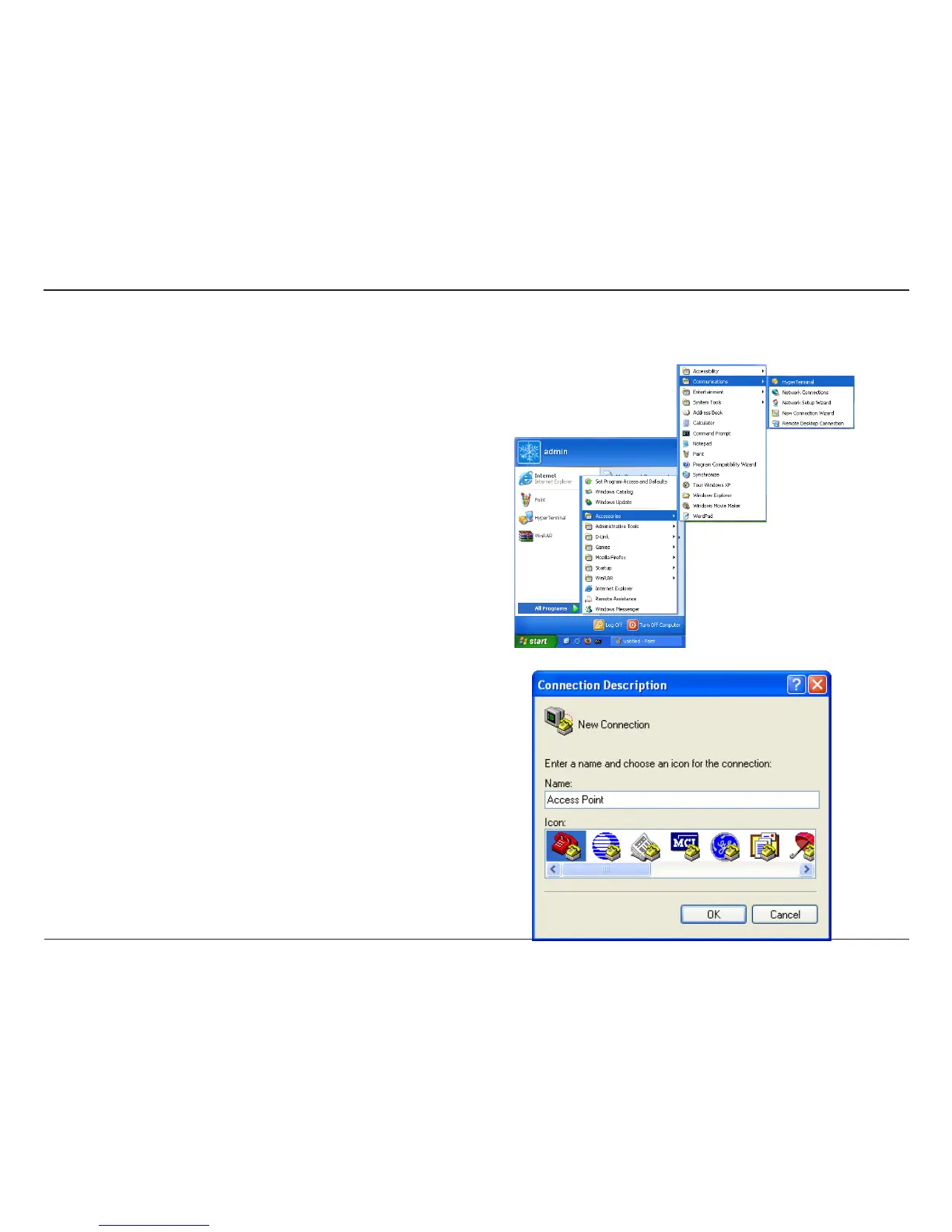

2. Run HyperTerminal on the PC:
• Go to the Start Menu
• Select All Programs
• Select Accessories
• Select Communications
• Select HyperTerminal
3. Enter a New Connection name:
Using the Console Port
