xStack DES-3528 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
•
•
•
•
•
Offset
This field will instruct the Switch to mask the packet header beginning with the offset value
specified:
0-15 - Enter a value in hex form to mask the packet from the beginning of the packet to
the 15th byte.
16-31 – Enter a value in hex form to mask the packet from byte 16 to byte 31.
32-47 – Enter a value in hex form to mask the packet from byte 32 to byte 47.
48-63 – Enter a value in hex form to mask the packet from byte 48 to byte 63.
64-79 – Enter a value in hex form to mask the packet from byte 64 to byte 79.
Click Apply to set this entry in the Switch’s memory.
To view the settings of a previously correctly created profile, click the corresponding Show Details button on the CPU
Access Profile List window to view the following window:

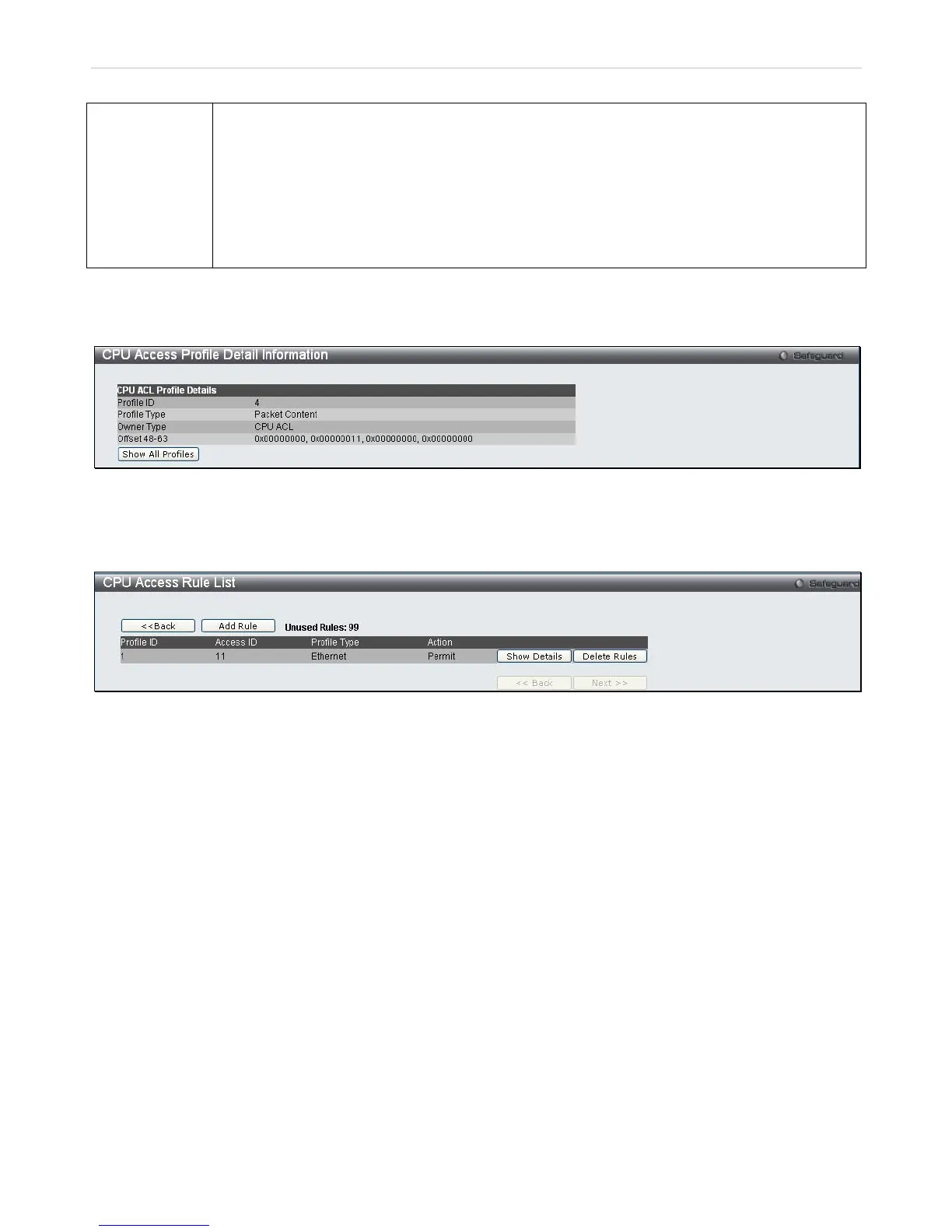

Figure 10- 36. CPU Access Profile Detail Information window for Packet Content
To establish the rule for a previously created CPU Access Profile:
To configure the Access Rules for Ethernet, open the CPU Access Profile List window and click Add/View Rules for
an Ethernet entry. This will open the following window.
Figure 10- 37. CPU Access Rule List window for Ethernet
To remove a previously created rule, click the corresponding Delete Rules button. To add a new Access Rule, click
the Add Rule button:
