xStack DES-3528 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

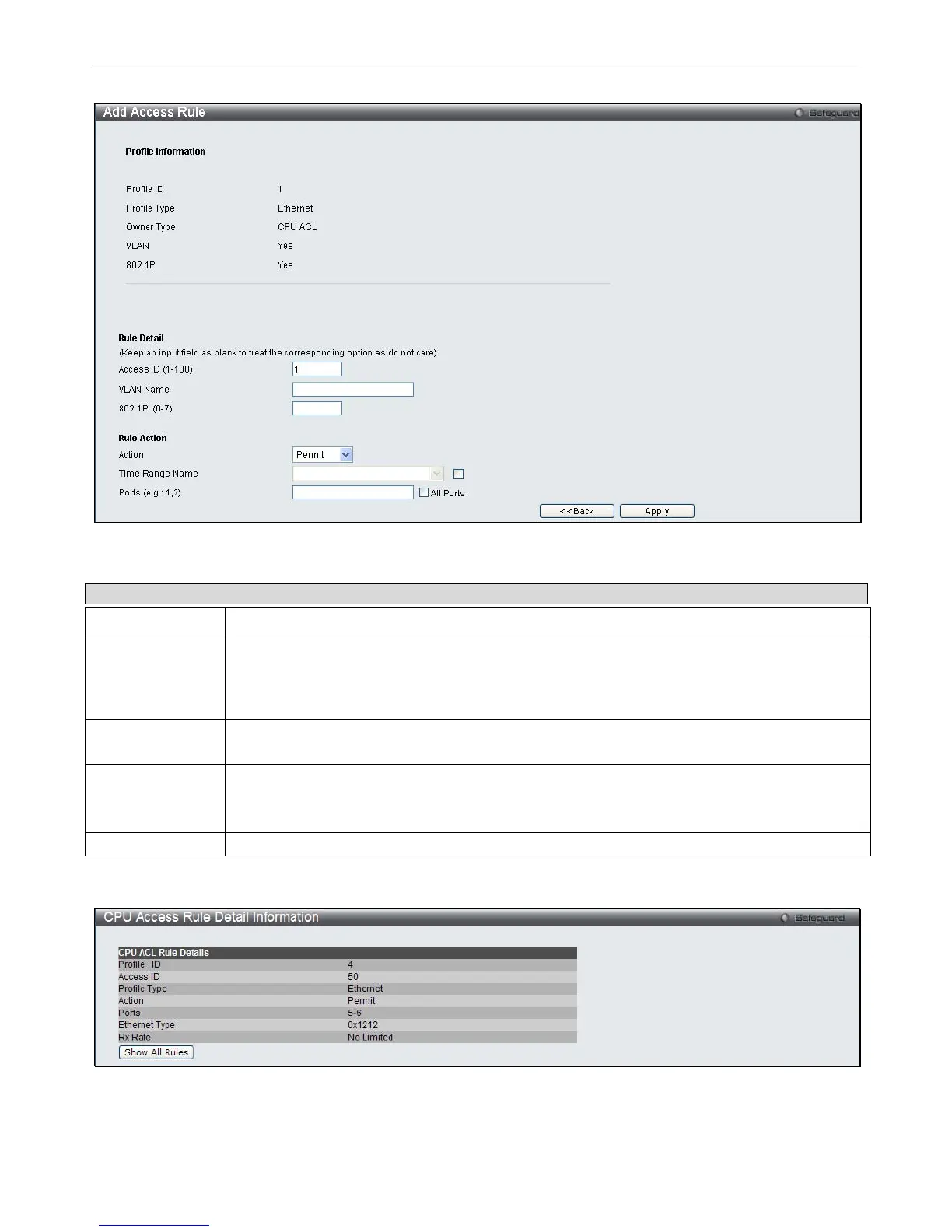

Figure 10- 3 . Add Access Rule window for Ethernet 8
To set the Access Rule for Ethernet, adjust the following parameters and click Apply.
Parameter Description
Access ID (1-100)
Type in a unique identifier number for this access. This value can be set from 1 to 100.
Action
Select Permit to specify that the packets that match the access profile are forwarded by the
Switch, according to any additional rule added (see below).
Select Deny to specify that packets that do not match the access profile are not forwarded by the
Switch and will be filtered.
Ethernet Type
(0-FFFF)
Selecting this option instructs the Switch to examine the Ethernet type value in each frame's
header.
Time Range
Name
Tick the check box and enter the name of the Time Range settings that has been previously
configured in the Time Range Settings window. This will set specific times when this access rule
will be implemented on the Switch.
Ports
Ticking the All Ports check box will denote all ports on the Switch.
To view the settings of a previously correctly configured rule, click the corresponding Show Details button on the CPU
Access Rule List window to view the following window:
Figure 10- 39. CPU Access Rule Detail Information window for Ethernet
