xStack DES-3528 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

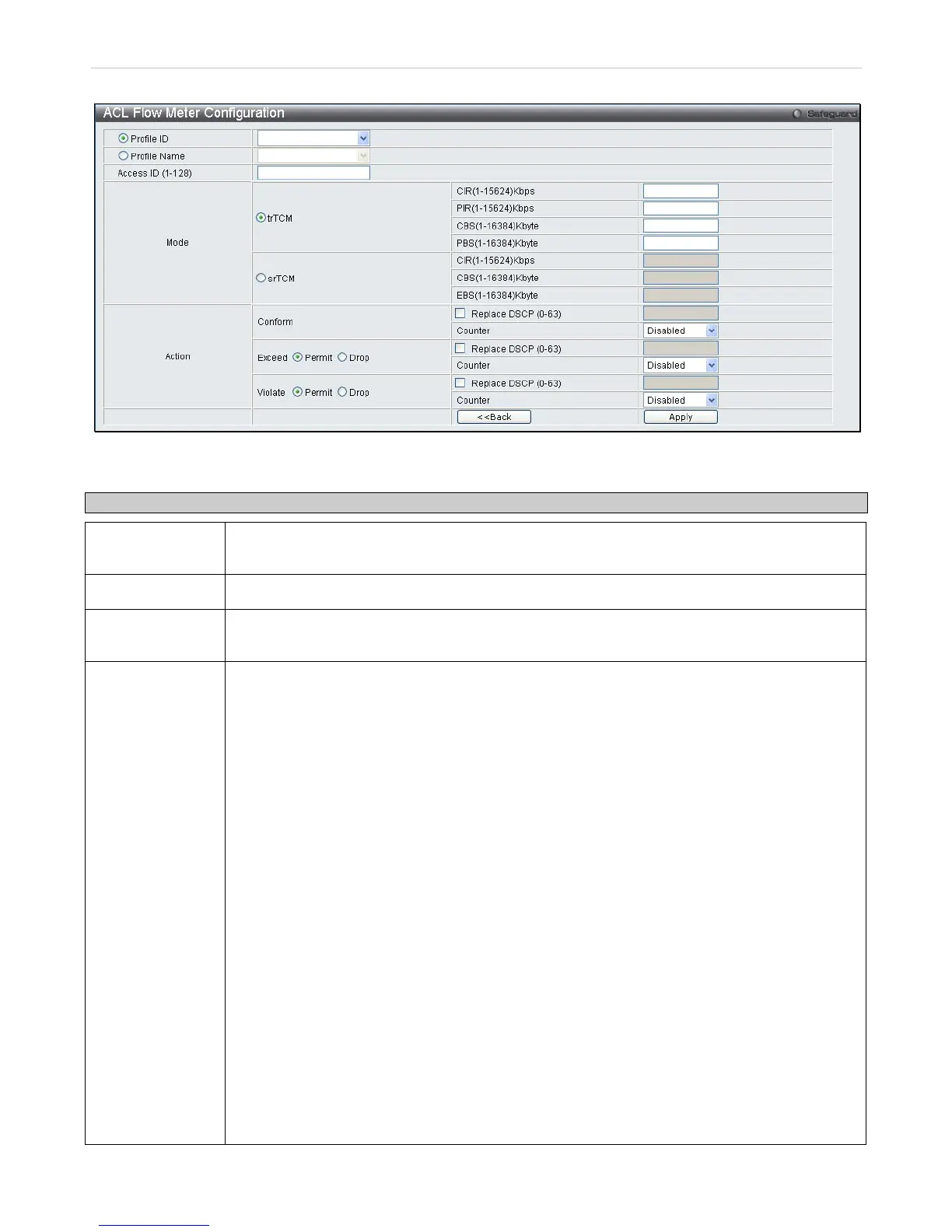

Figure 10- 5 . ACL Flow Meter - Add window 1
The following fields may be configured:
Parameter Description
Profile ID
Use the drop down menu to select the pre-configured Profile ID that will be used to configure the
Flow Metering parameters.
Profile Name
Use the drop down menu to select the pre-configured Profile Name.
Access ID (1-128)
Enter the Access ID that will be used to configure the Flow Metering parameters, enter a value
between 1 and 128.
Mode
Select the mode to be used either trTCM or srTCM and enter the corresponding information.
trTCM – Two Rate Three Color Marker, marks packets green, yellow or red based on two rates
and two burst sizes. It is useful when peak rates need to be enforced.
srTCM – Single Rate Three Color Marker, marks packets green, yellow or red based on a rate
and two burst sizes. This is useful when only burst size matters.
• CIR(1-15624)Kbps – Specifies the Committed Information Rate of the packet. The unit
is 64Kbps. That is to say, 1 means 64Kbps.
• PIR(1-15624)Kbps – Specifies the Peak Information Rate of the packet. The unit is
64Kbps. That is to say, 1 means 64Kbps.
• CBS(1-16384)Kbyte – Specifies the Committed Burst Size of the packet. The unit is
Kbytes. That is to say, 1 means 1Kbytes. This parameter is optional and the default
value is 4*1024. The max value is 16*1024.
• PBS(1-16384)Kbyte – Specifies the Peak Burst Size of the packet. The unit is Kbytes.
That is to say, 1 means 1Kbytes. This parameter is optional and the default value is
4*1024. The max value is 16*1024.
• CIR(1-15624)Kbps – Specifies the Committed Information Rate of the packet. The unit
is 64Kbps. That is to say, 1 means 64Kbps.
• CBS(1-16384)Kbyte – Specifies the Committed Burst Size of the packet. The unit is
Kbytes. That is to say, 1 means 1Kbytes. The maximum value is 16*1024.
• EBS(1-16384)Kbyte – Specifies the Excess Burst Size of the packet. The unit is
Kbytes. That is to say, 1 means 1Kbytes. The maximum value is 16*1024.
204
