UMB_cast(RX)
Click the UMB_cast(RX) link in the Packets folder of the Monitoring menu to view the following graph of
UMB cast packets received on the Switch.

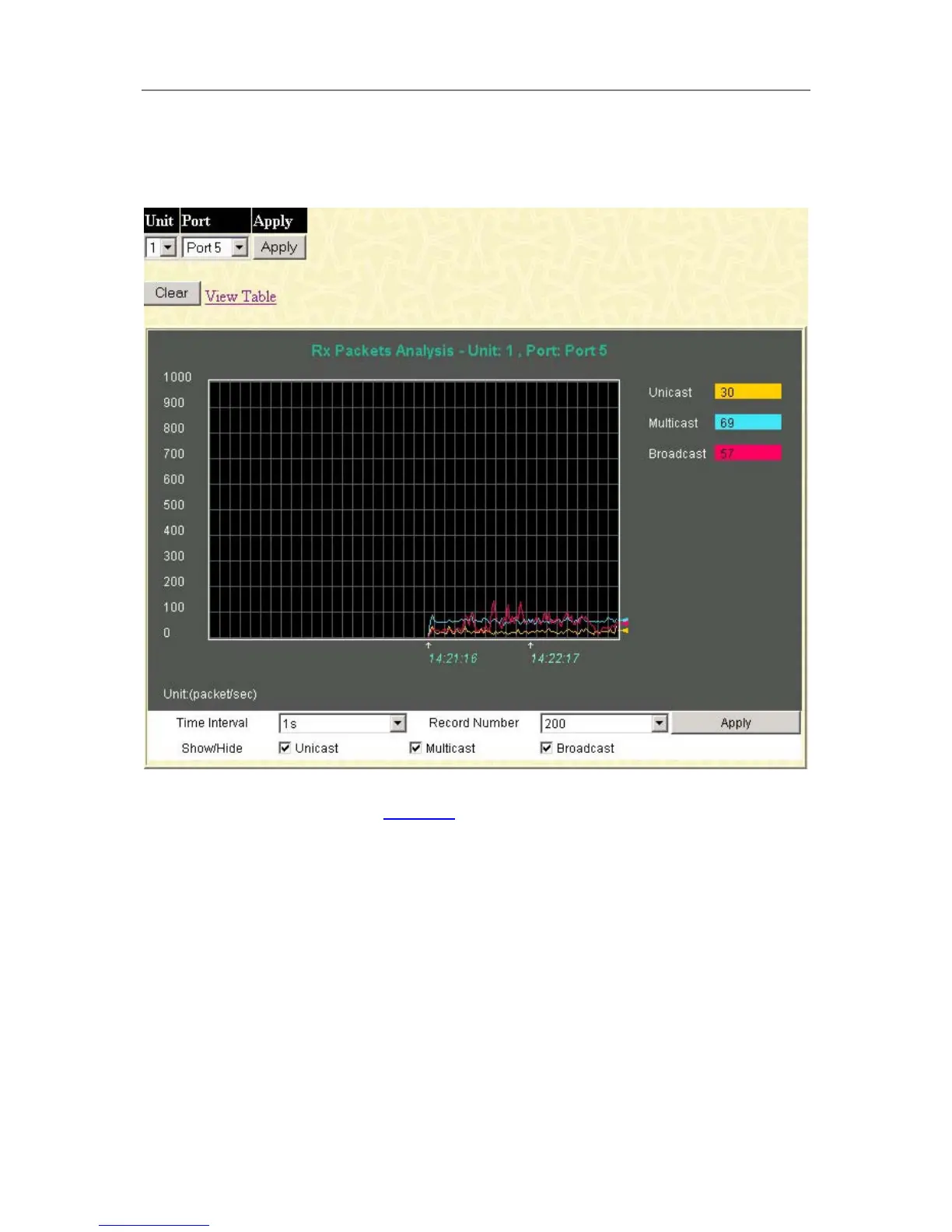

Figure 6- 4. Rx Packets Analysis window (line graph for Unicast, Multicast, and Broadcast Packets)
To view the UMB_cast Table, click the View Table
link, which will show the following table:
