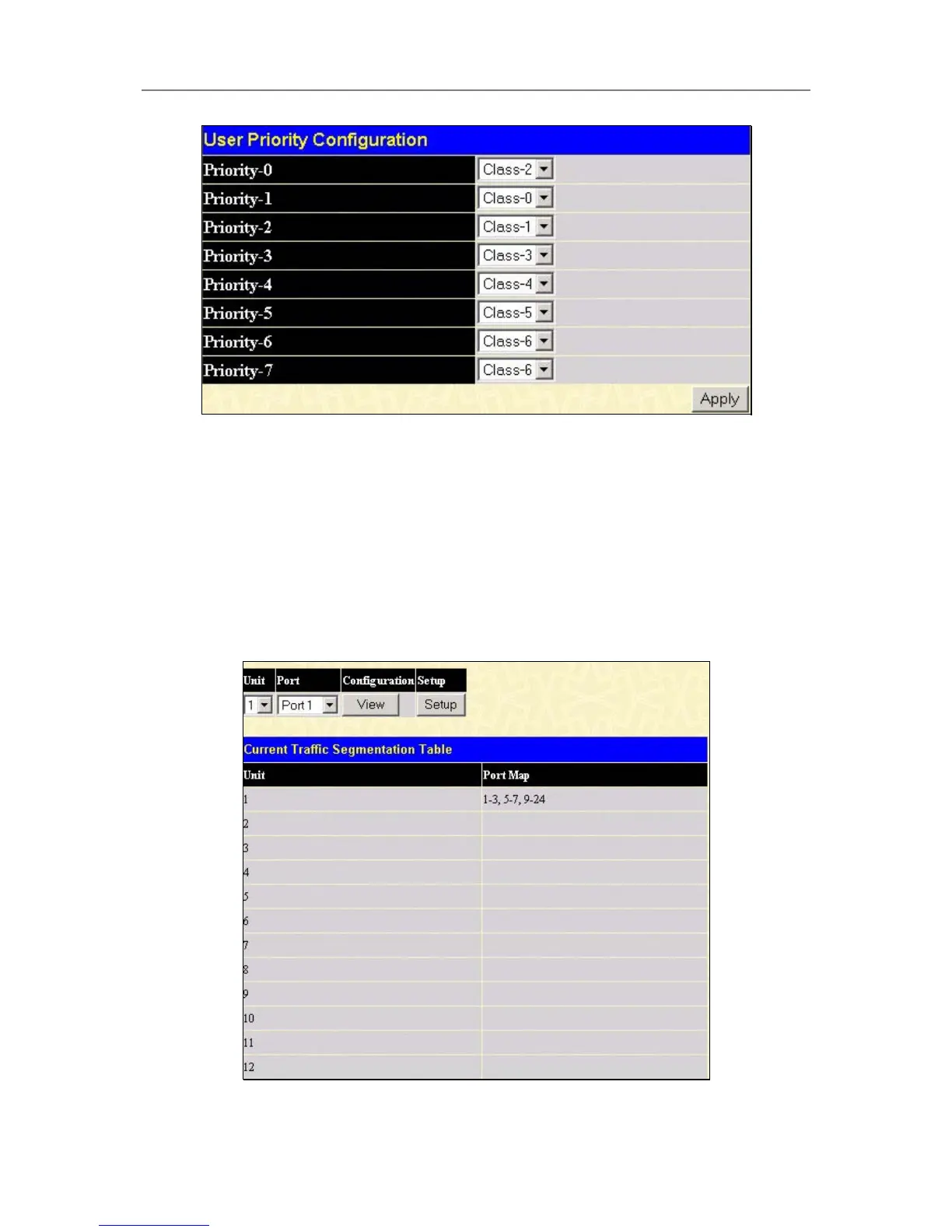

Figure 4- 31. User Priority Configuration window
Once you have assigned a priority to the port groups on the Switch, you can then assign this Class to each of the
8 levels of 802.1p priorities. Click Apply to set your changes.
Configuring Traffic Segmentation
Traffic segmentation is used to limit traffic flow from a single port to a group of ports on either a single switch
(in standalone mode) or a group of ports on another switch in a switch stack. This method of segmenting the flow
of traffic is similar to using VLANs to limit traffic, but is more restrictive. It provides a method of directing
traffic that does not increase the overhead of the Master switch CPU.
In the Configuration folder open the QoS folder and click Traffic Segmentation, to view the screen shown
below.
Figure 4- 32. Current Traffic Segmentation Table
