D-Link DGS-3324SR Layer 3 Stackable Gigabit Ethernet Switch
151
View Line Chart
Clicking this button instructs the Switch to display a line graph rather than a
table.
Size
The Web Manager allows packets received by the Switch, arranged in six groups and classed by size, to be
viewed as either a line graph or a table. Two windows are offered.

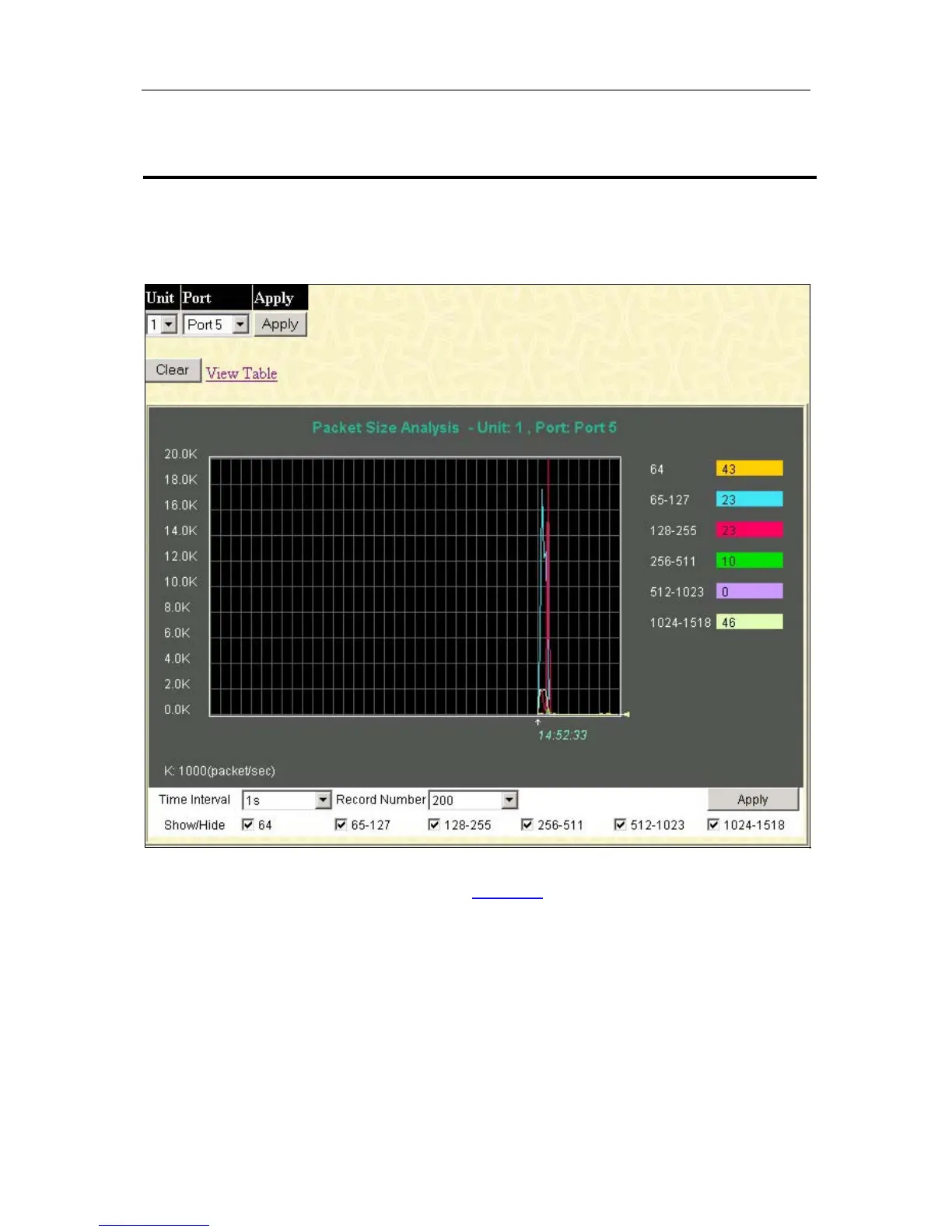

Figure 6- 12. Rx Size Analysis window (line graph)
To view the Packet Size Analysis Table, click the link View Table
, which will show the following table:
