D-Link DNS-1560-04 User Manual

Copyright@2014 D-Link System, Inc. All Rights Reserved.
12
D-Link Document – User Manual

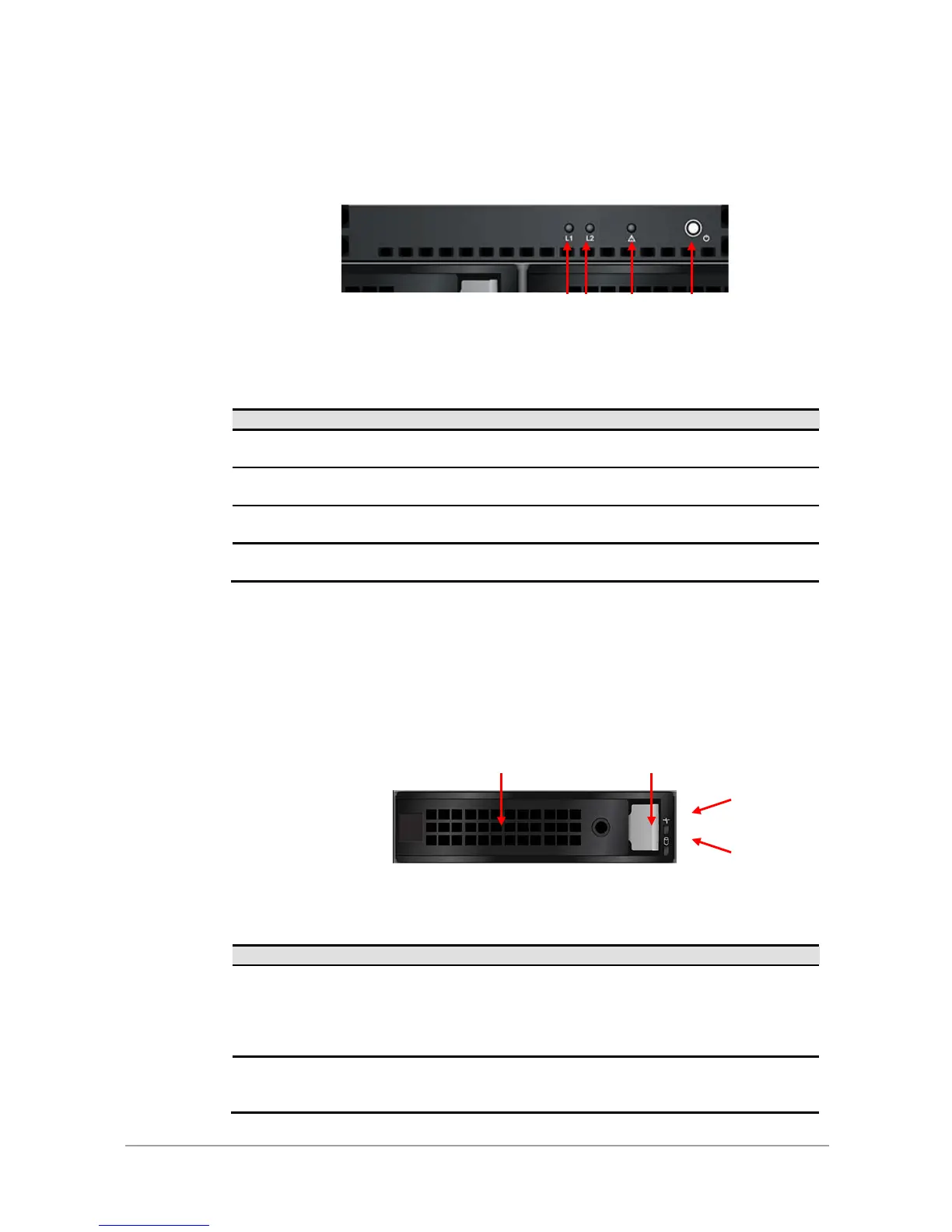

Front View
There are three LEDs and one button on DNS-1560-04
This table provides details about the button and LEDs.
Number
Description
1
LAN1(Management port) LED:

Blinking amber: Accessing data.
2
LAN2 LED:

Blinking amber: Accessing data.
3
Status LED:

Blinking amber: System error.
4
Power button.

Blue: Power on.
Disk Drive Assembly
Remove a drive tray. Then install a HDD.
The front of each disk tray has four components:
This table provides details about the front components of a disk tray.
Number
Description
1
Status LED:
 Green: The hard drive is inserted and working normally.
 Amber: The hard drive has failed.
 Blinking amber: The hard drive data is being rebuilt.

Off: There is no hard drive in the tray or the power is off.
2
Access LED:
 Blinking green: The hard drive is being accessed.

Off: The hard drive is not being accessed or there is no hard drive in
1
2
3
4
1
2
3
4
