Configuring via Web-based Interface
Rings
On the VoIP / Rings page, you can configure ring signal parameters.

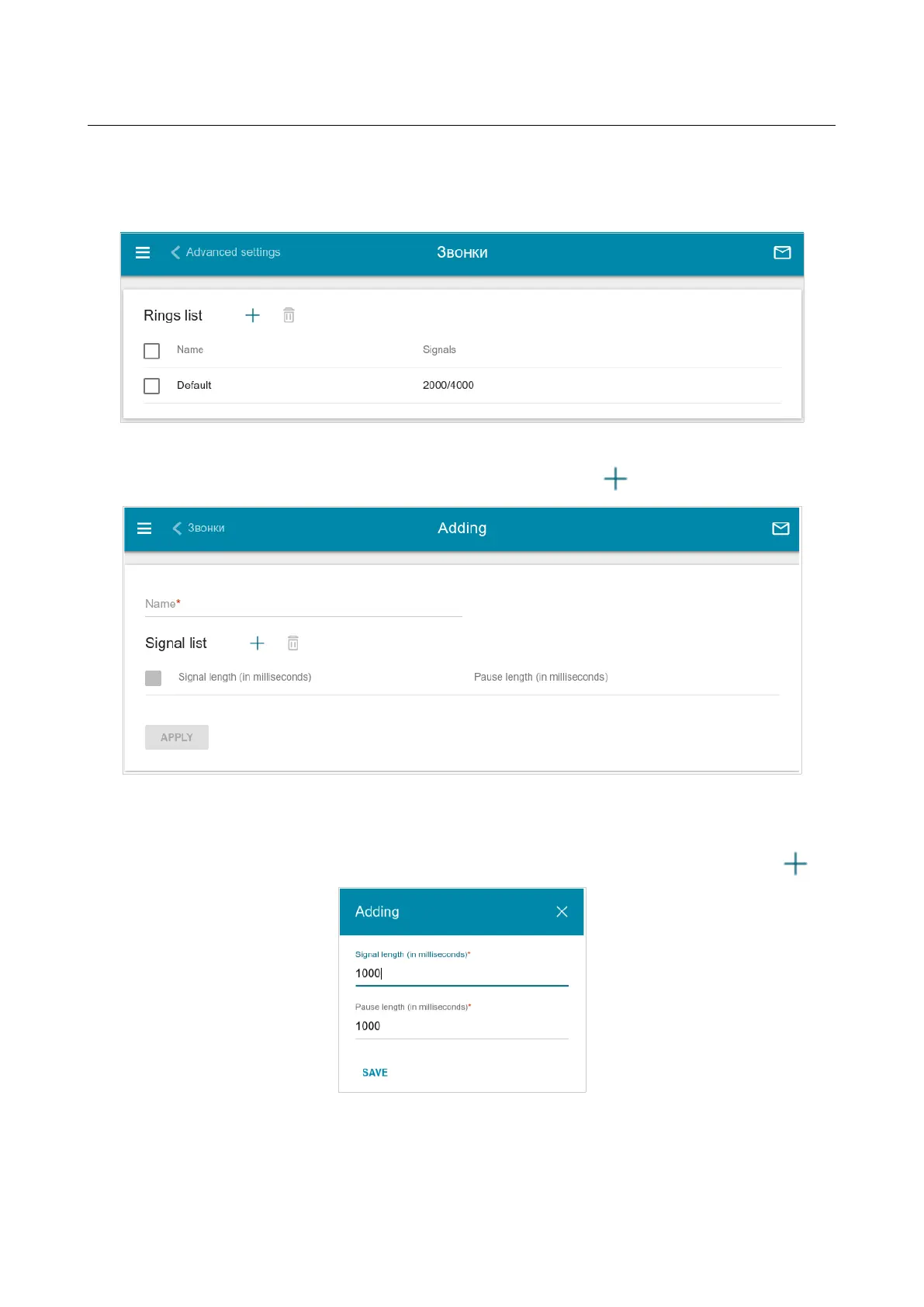

Figure 178. The VoIP / Rings page.
To add a new ring, in the Rings list section, click the ADD button ( ).
Figure 179. The page for adding a ring.
On the opened page, specify a ring name in the Name field for easier identification.
To specify the signal parameters for a ring, in the Signal list section click the ADD button ( ).
Figure 180. The window for specifying signal parameters.
Page 230 of 311
