DVG-5402G/GF Wireless AC1200 MU-MIMO Dual Band
Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS
Ports, and USB Port
User Manual
Configuring via Web-based Interface
Selecting Operation Mode
Select the needed operation mode and click the NEXT button.
Router
In order to connect your device to a fiber optic line, on the Device mode page, from the
Connection method list, select the Fiber (SFP) value. In this mode you can configure a WAN
connection, set your own settings for the wireless network in the 2.4GHz and 5GHz bands,
configure LAN ports to connect an STB or VoIP phone, and set your own password for access to the
web-based interface of the device.

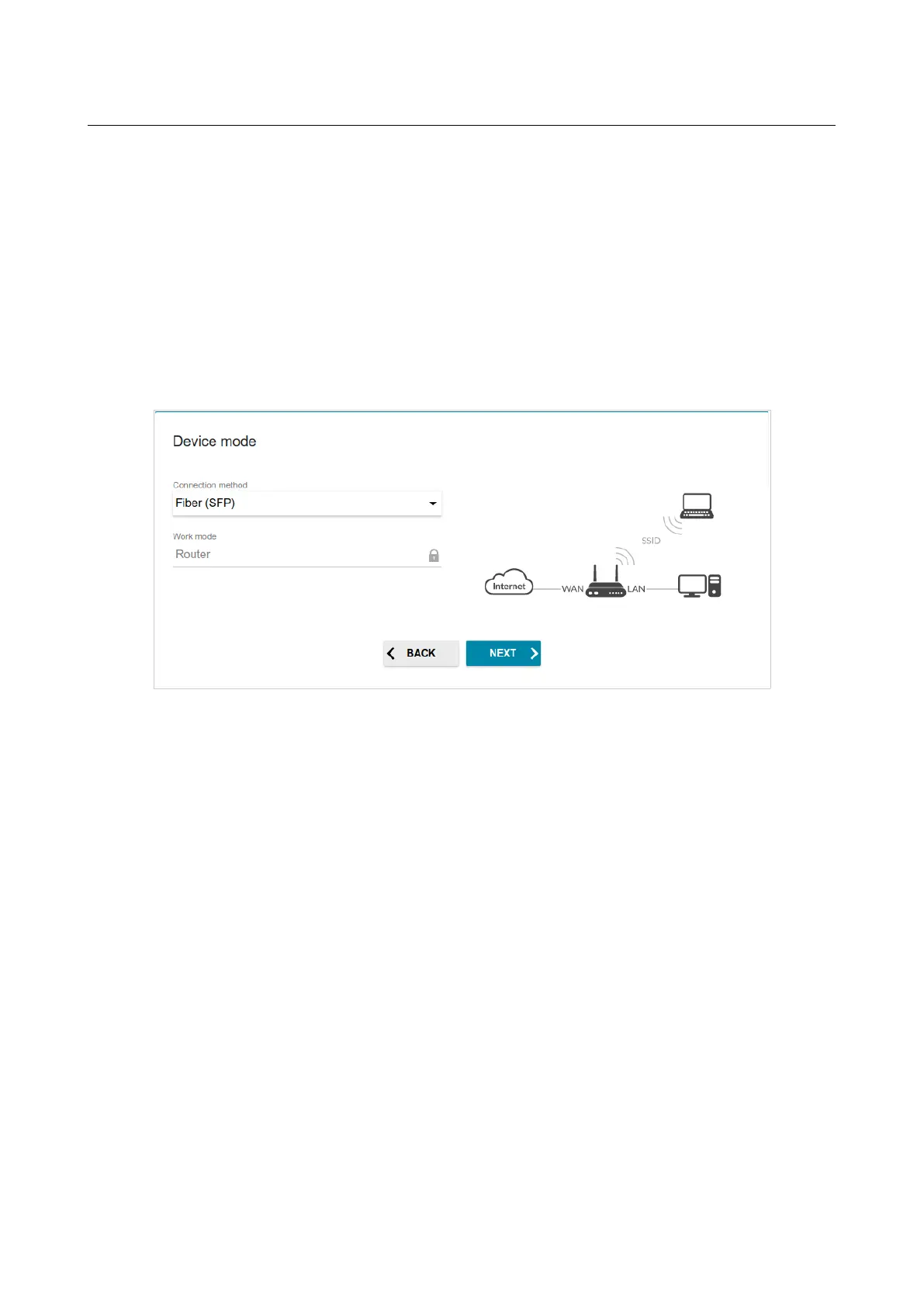

Figure 34. Selecting an operation mode. The Fiber (SFP) mode.
Page 52 of 311
