DVG-5402G/GF
Wireless
AC1200
MU-MIMO
Dual
Band
Gigabit Router with Fiber WAN Port, 3G/L
TE
Support, 2 FXS
Ports, and USB Port
User Manual
Configuring via Web-based Interface
GRE
On the
VPN / GRE
page, you can configure VPN tunnels based on GRE protocol.
GRE
(
Generic
Routing
Encapsulation
)
is
a
protocol
for
tunneling
network
packets,
which
enables
you to create unprotected VPN tunnels.

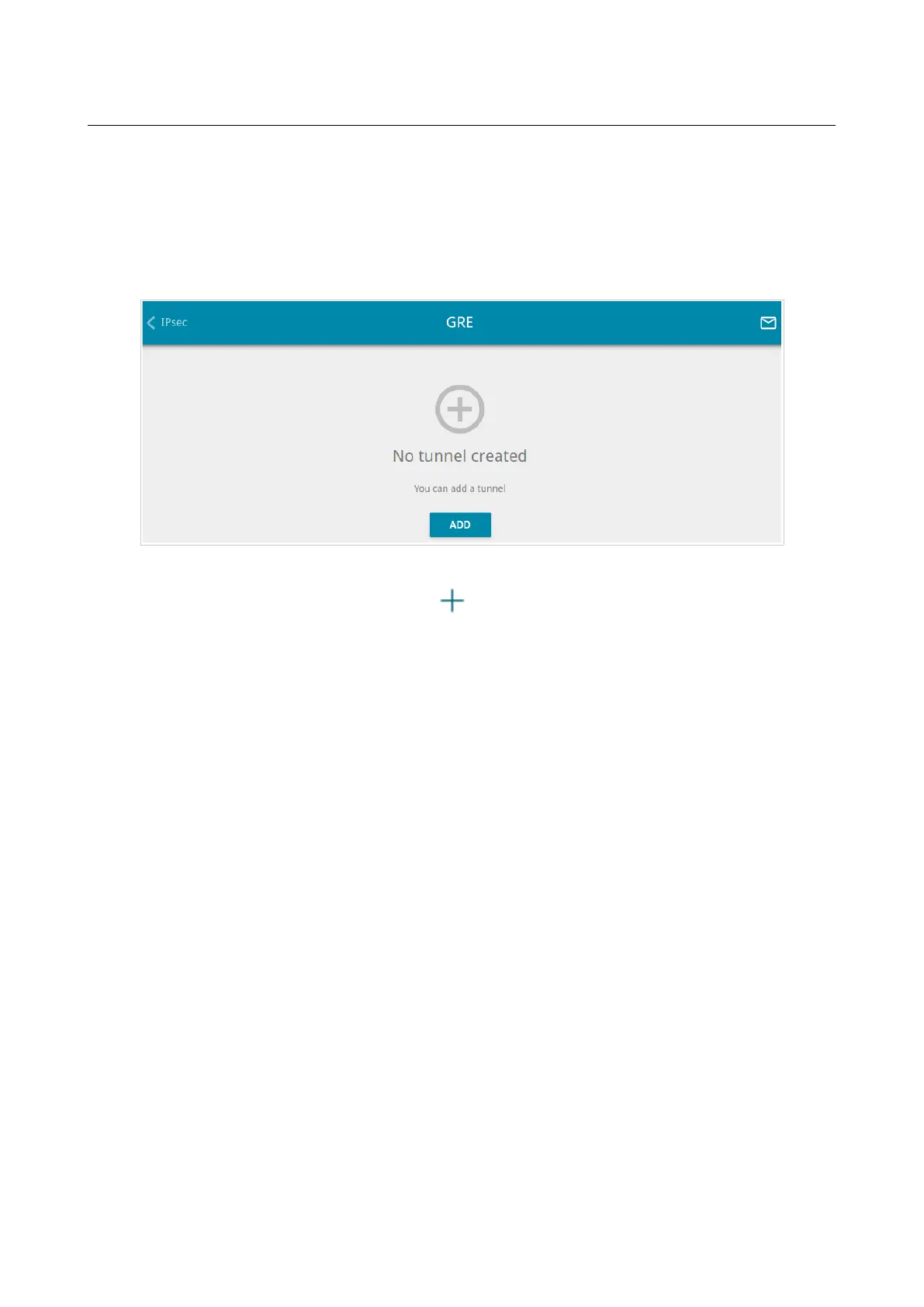

Figure 1
12. The
VPN / GRE
page.
T
o create a new tunnel, click the
ADD
button (
).
Page
138
of 31
1
137
139
