DVG-5402G/GF Wireless AC1200 MU-MIMO Dual Band
Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS
Ports, and USB Port
User Manual
Configuring via Web-based Interface
Call on Event
On the VoIP / Profile Name / Call on Event page, you can configure calls on different events.

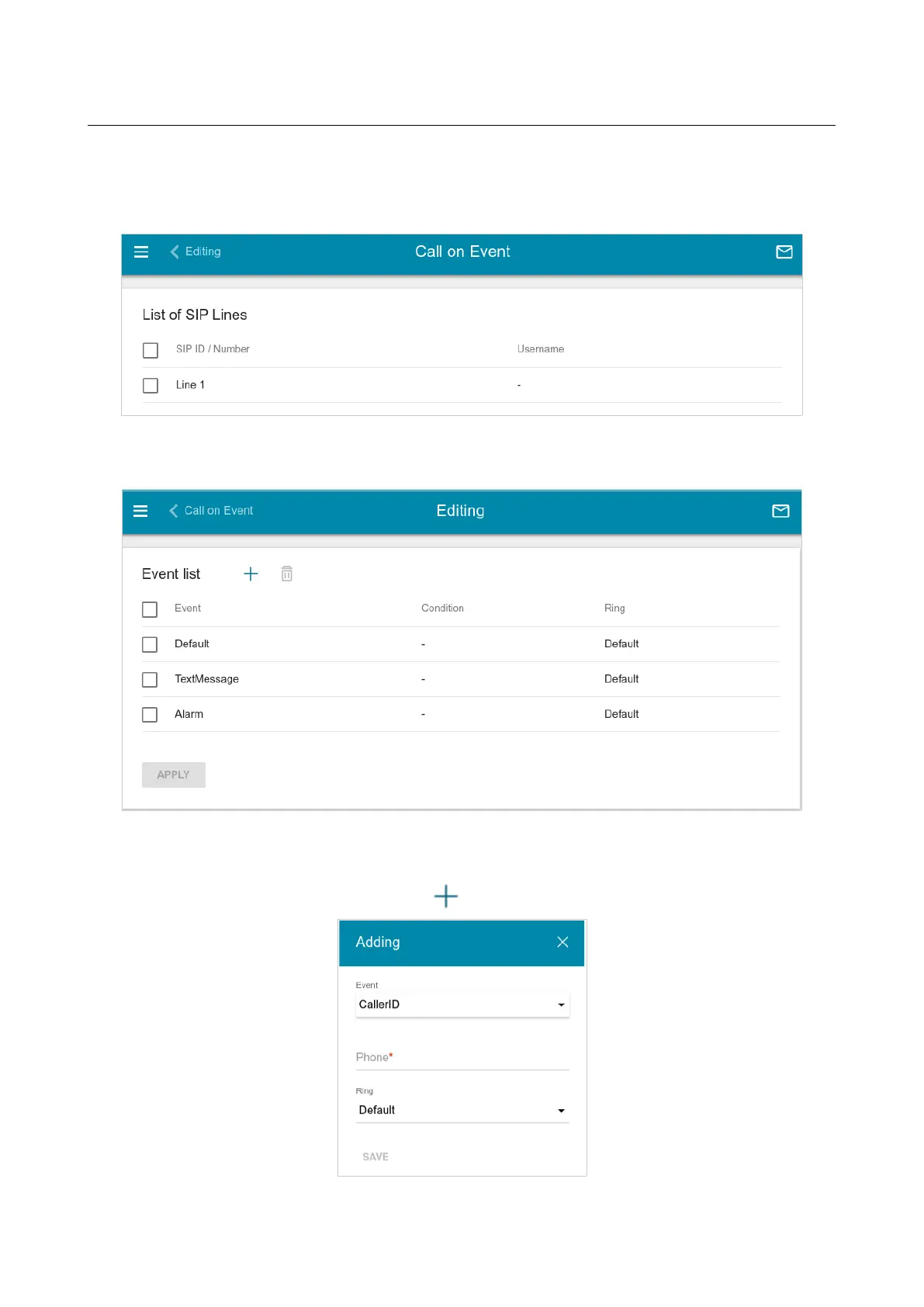

Figure 185. The VoIP / Profile Name / Call on Event page.
To change parameters of a SIP line, select the relevant line in the table.
Figure 186. The page for call editing.
In the Event list section, the list of existing events and their parameters are displayed.
To create a new event, click the ADD button ( ).
Figure 187. The window for adding an event.
Page 240 of 311
