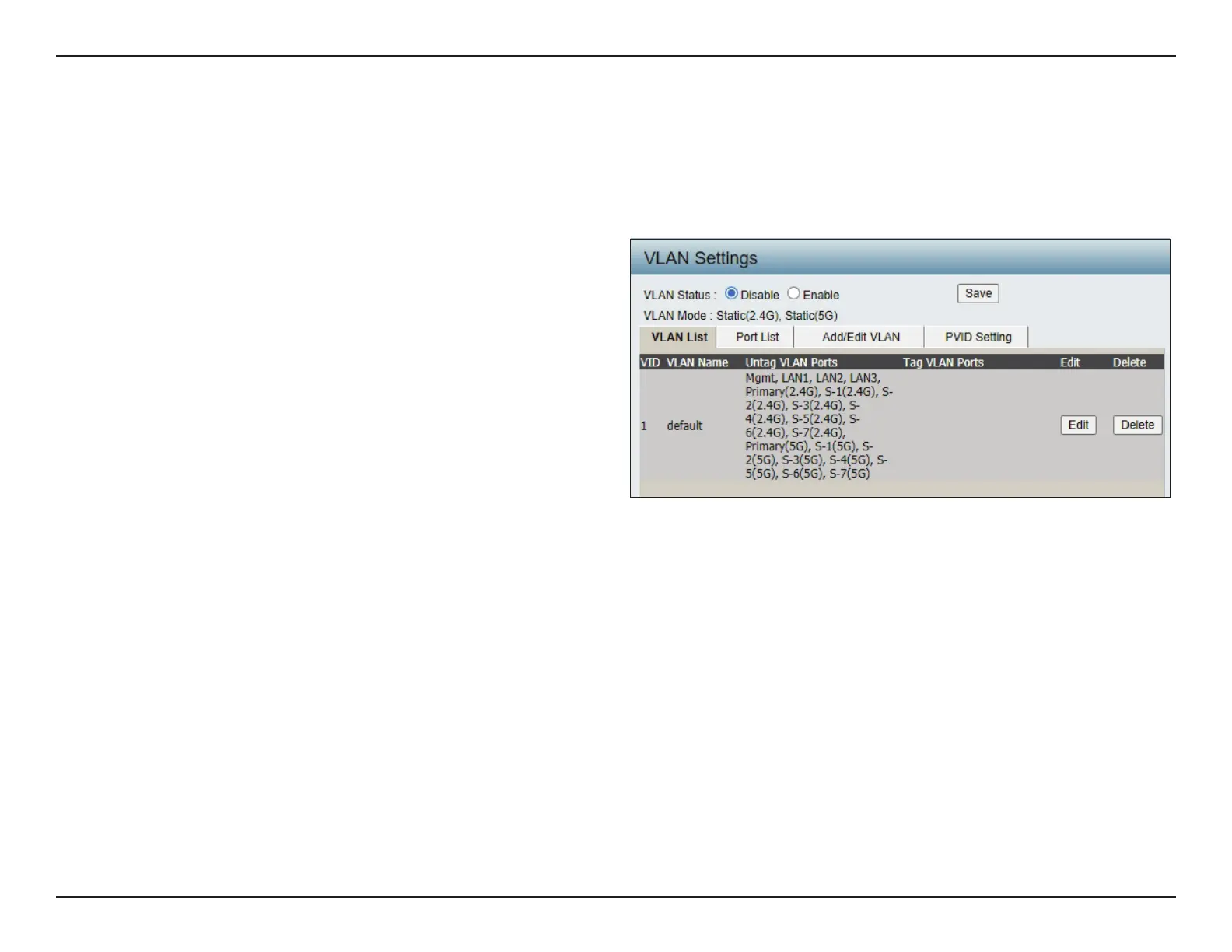

VLAN
The DAP-2622 supports VLANs. VLANs can be created with a name and VID. Mgmt (TCP stack), LAN, primary/multiple SSID, and WDS connections
can be assigned to VLANs as they are physical ports. Any packet which enters the DAP-2622 without a VLAN tag will have a VLAN tag inserted
with a PVID. The VLAN List tab displays the current VLANs.
VLAN Status:
VLAN Status:
Save:
VID:
VLAN Name:
Untag VLAN Ports:
Tag VLAN Ports:
Edit:
Delete:
Click the radio button to enable or disable
VLAN status. Next, go to the Add/Edit VLAN
tab to add or modify an item on the VLAN List
tab.
Displays the current VLAN status.
Click to save the updated configuration.
To make the updates permanent, click
Conguration > Save and Activate.
Displays the VID of the VLAN.
Displays the name of the VLAN.
Displays the untagged ports.
Displays the tagged ports.
Click Edit to edit the current VLAN.
Click Delete to delete the current VLAN.
VLAN List
