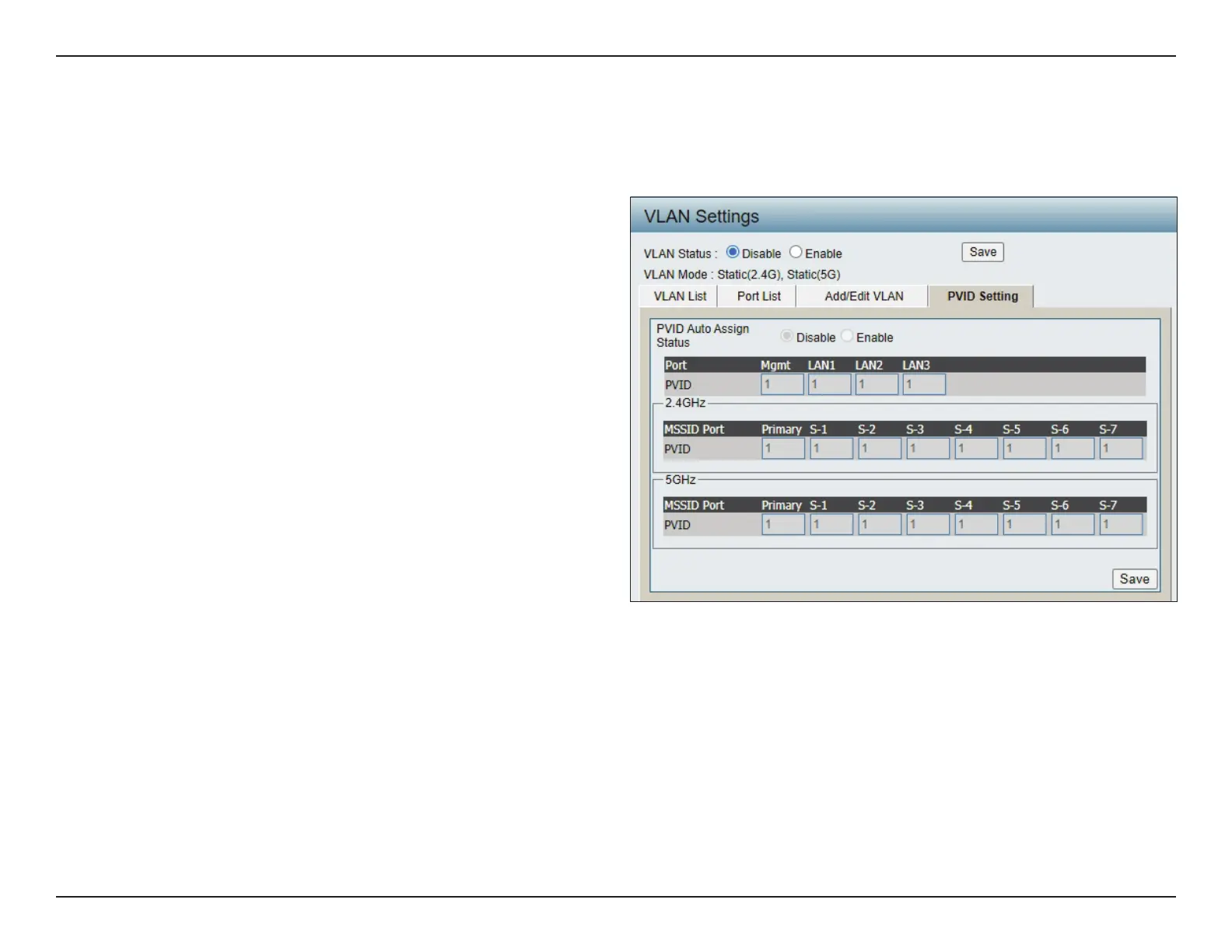

The PVID Settings tab is used to enable/disable the Port VLAN Identier Auto Assign Status as well as to congure various types of PVID settings.
Click the Save button to let your changes take eect.
PVID Settings
VLAN Status: Click the radio button to enable or disable
VLAN status. By default this feature is
disabled.
VLAN Mode: Displays the current VLAN mode.
PVID Auto Assign
Status:
Click the radio button to enable or disable
PVID auto assign status.
For each untagged port, set the PVID of the
port to its assigned VLAN ID. For example, if
ports 1, 2, 3, 4, and 5 are untagged members
of VLAN 10, ports 1, 2, 3, 4, and 5 would be
congured with a PVID of 10.
For better system consistency, the following
are recommended:
y set MSSID ports S1 and S2 to 16 and 17,
respectively
y set switch port trunk native VLAN 1 for
trunk port 1
Save: Click to save the updated conguration.
To make the updates permanent, click
Conguration > Save and Activate.
