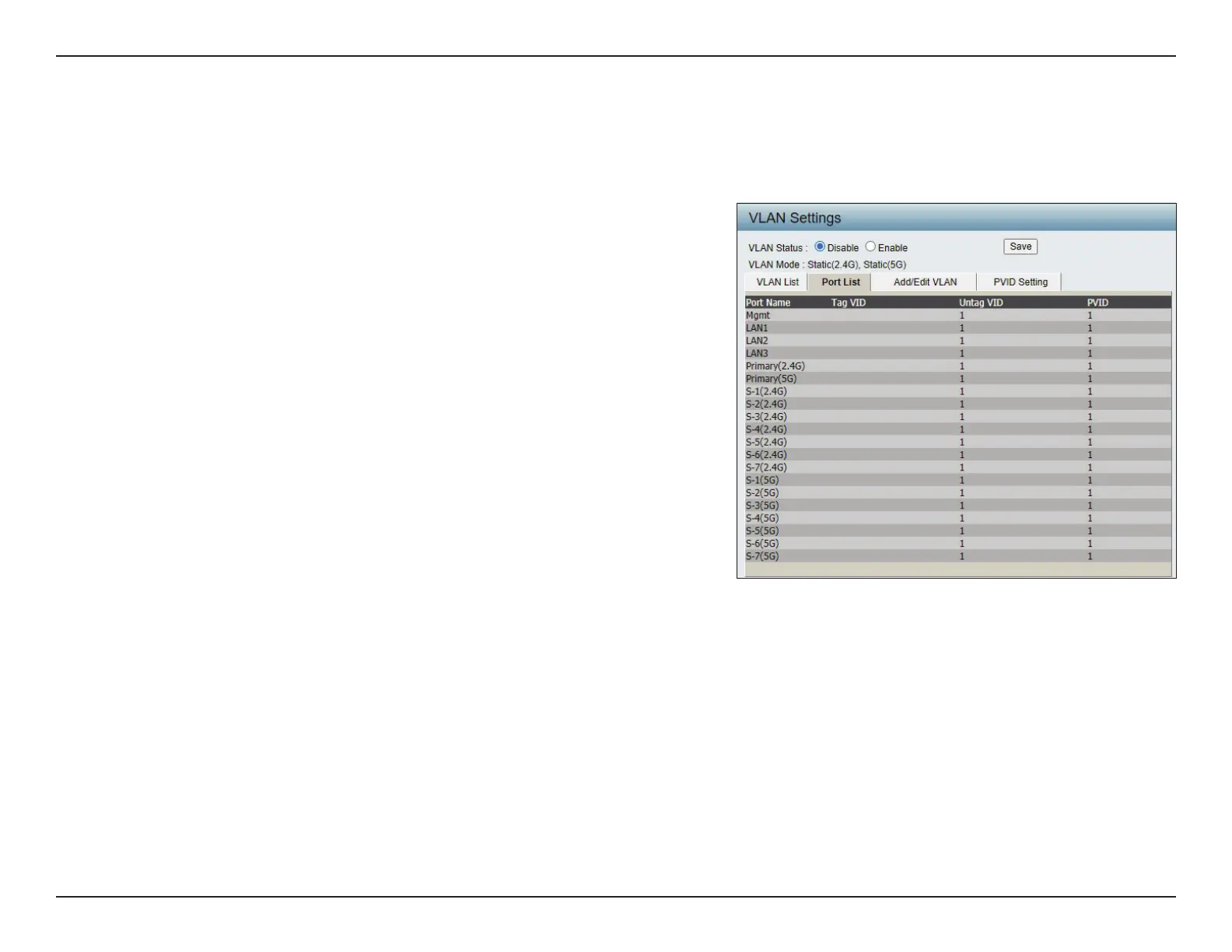

The Port List tab displays the current ports. If you want to congure the guest and internal networks on a Virtual LAN (VLAN), the switch and
DHCP server you are using must also support VLANs. As a prerequisite step, congure a port on the switch for handling VLAN tagged packets as
described in the IEEE 802.1Q standard.
VLAN Status
VLAN Mode
Save
Port Name
Tag VID
Untag VID
PVID
Click the radio button to enable or disable VLAN status. Next, go to
the Add/Edit VLAN tab to add or modify an item on the VLAN List tab.
Displays the current VLAN mode.
Click to save the updated configuration. To make the updates
permanent, click Conguration > Save and Activate.
Displays the name of the port.
Displays the tagged VID of the port.
Displays the untagged VID of the port.
Displays the PVID of the port.
Port List
