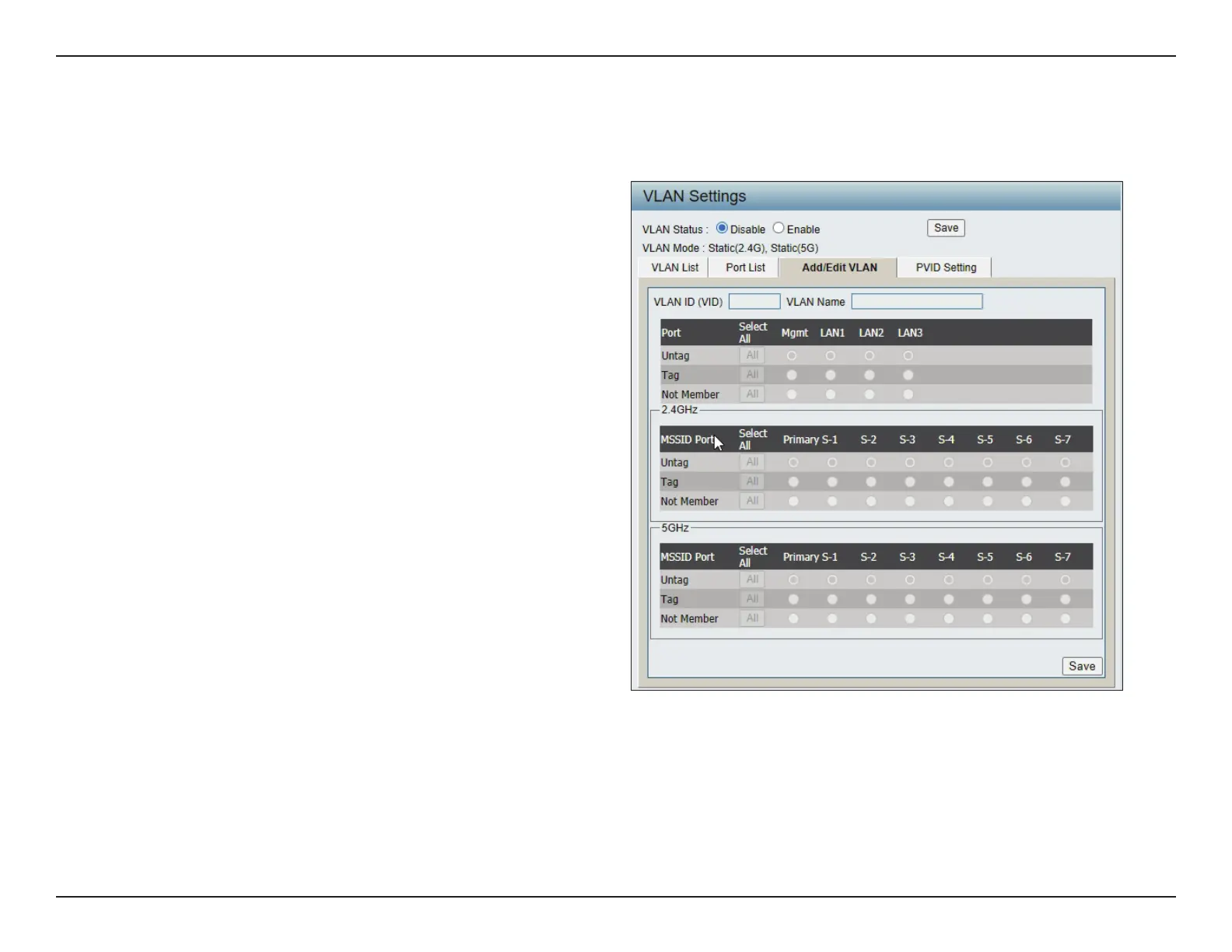

The Add/Edit VLAN tab is used to congure VLANs. Once you have made the desired changes, click the Save button to let your changes take
eect.
VLAN Status:
VLAN Mode:
VLAN ID:
VLAN Name:
Save:
Click the radio button to enable or
disable VLAN status. By default this
feature is disabled.
Displays the current VLAN mode.
Enter a value (1-4094) for the Internal
VLAN.
Enter the VLAN name to add or modify.
Click to save the updated conguration.
To make the updates permanent, click
Conguration > Save and Activate.
Add/Edit VLAN
From the Port elds, select the radio button to set Untag/Tag/Not
Member settings to the Mgmt (management) and LAN ports. The port
conguration functions are also available for the dened 2.4GHz and
5GHz ports.
Untagged ports are used for connecting to client devices, such as a
computer host. While tagged ports are designated for VLAN trunk
links.
