xStack
®
DES-3200-10/18/28/28F Layer 2 Ethernet Managed Switch User Manual
NOTE: Ports that are in Shutdown rest mode will be seen as link down in
all windows and screens until the user recovers these ports.
802.1p Default Priority
The Switch allows the assignment of a default 802.1p priority to each port on the Switch.
To view this window, click QoS > 802.1p Default Priority:

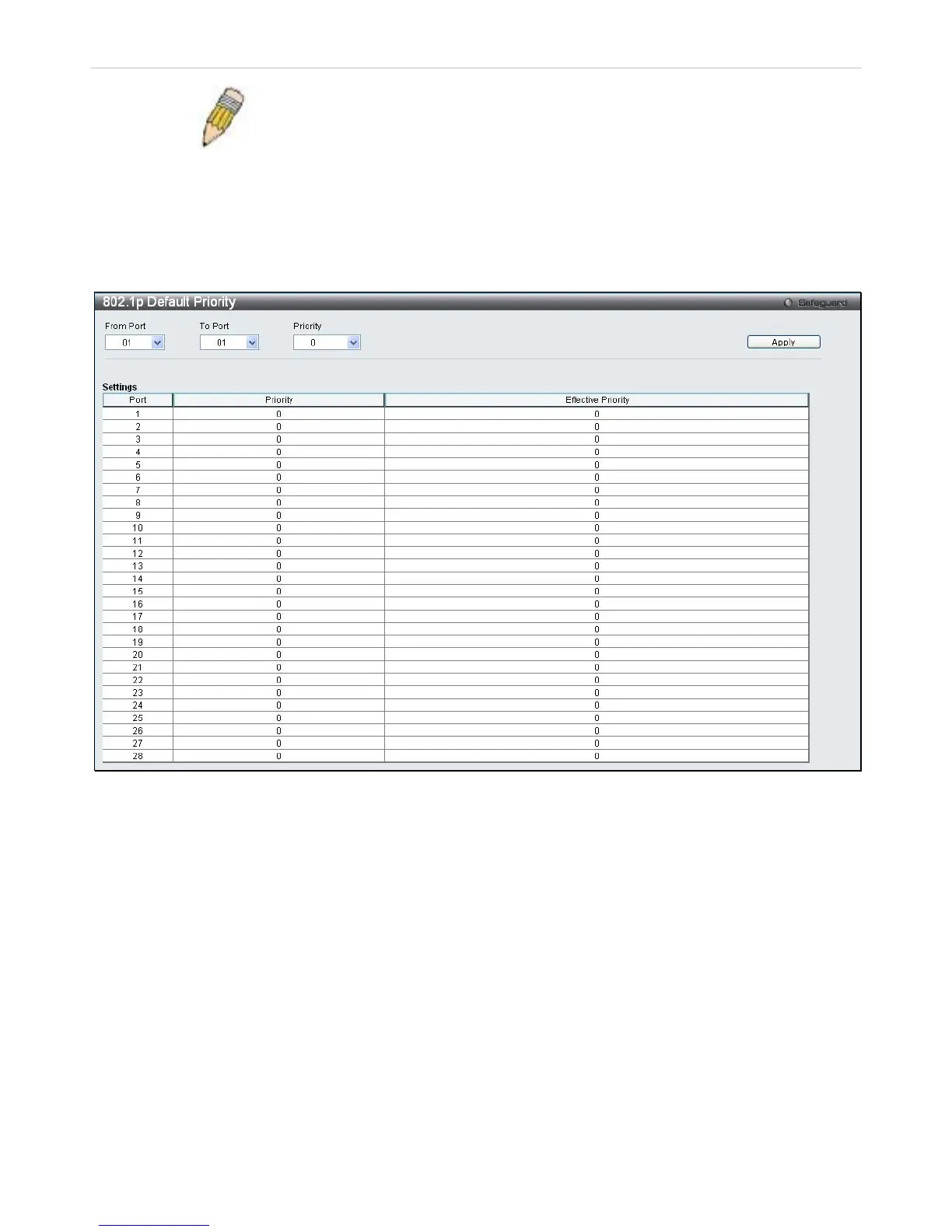

Figure 4 - 4. 802.1p Default Priority window
This window allows assignment of a default 802.1p priority to any given port on the Switch. The priority values are
numbered from 0, the lowest priority, to 7, the highest priority. Click Apply to implement the settings.
802.1p User Priority
The Switch allows the assignment of a user priority to each of the 802.1p priorities.
To view this window, click QoS > 802.1p User Priority:
110
