Commander Switch Icon

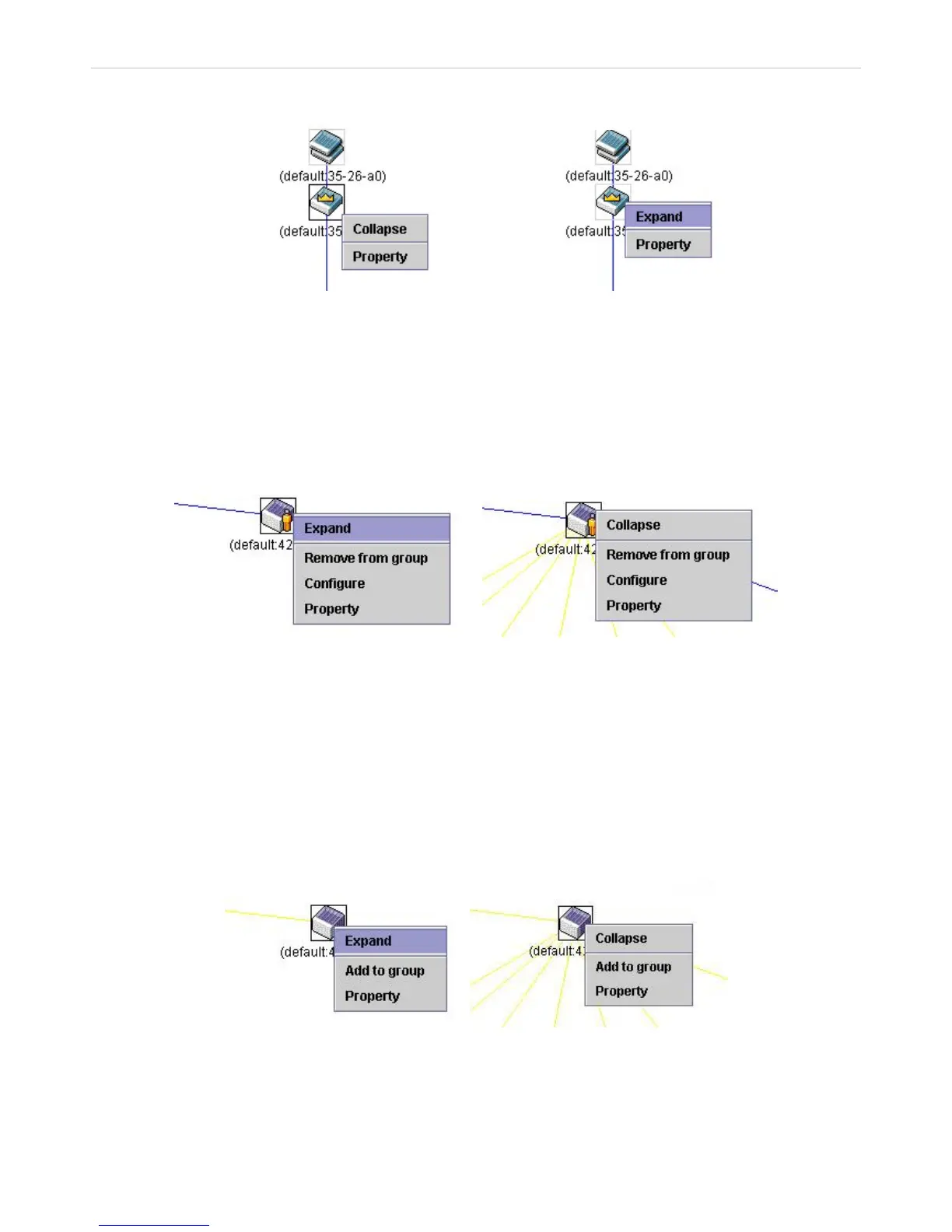

Figure 2 - 49. Right-Clicking a Commander Icon
The following options may appear for the user to configure:
y Collapse - To collapse the group that will be represented by a single icon.
y Expand - To expand the SIM group, in detail.
y Property - To pop up a window to display the group information.
Member Switch Icon
Figure 2 - 50. Right-Clicking a Member icon
The following options may appear for the user to configure:
y Collapse - To collapse the group that will be represented by a single icon.
y Expand - To expand the SIM group, in detail.
y Remove from group - Remove a member from a group.
y Configure - Launch the web management to configure the Switch.
y Property - To pop up a window to display the device information.
Candidate Switch Icon
Figure 2 - 51. Right-Clicking a Candidate icon
The following options may appear for the user to configure:
y Collapse - To collapse the group that will be represented by a single icon.
y Expand - To expand the SIM group in detail.
